High-Speed 8-Channel Tablet and Capsule Counting Machine with 99.99% Accuracy

Fully Automatic 8 Passageway Soft Capsule Counting Machine Pharmaceutical Machinery

Product Description of Capsule Counting Machine​

The SED-8S-S is a high-performance, fully automated electronic counting and bottling system. It integrates advanced mechanical, electrical, and pneumatic technologies into a single unit. Designed for large-scale pharmaceutical and nutraceutical production, it offers unparalleled speed and precision while strictly adhering to GMP standards.

Working Principle of Capsule Counting Machine​

The system utilizes a 3-stage vibration system to transport medicines evenly and orderly from the hopper to the detection channels. High-precision infrared photoelectric sensors count each unit in real-time. Controlled by a patented gating system, the products are sliced and filled into bottles with millisecond precision, ensuring a seamless flow to the next production stage.

Technical Parameters of Capsule Counting Machine

Model	SED-8S-S
Production Capacity	20 - 60 Bottles/min
Counting Accuracy	99.99%
Filling Range	1 - 9999 units per bottle
Applicable Dosage	Tablets (Max φ22mm), Capsules (#00 to #5)
Bottle Neck Size	Φ20~100mm
Bottle Volume	15 - 300 ml
Power Supply	220V AC, 50/60 Hz (0.6 KW)
Air Consumption	0.8 m³/h at 0.5 MPa
Material	Premium Stainless Steel 304 (Full Sealed)
Dimensions (LWH)	1600 x 1600 x 1600 mm
Weight	450 kg

Core Performance Features

1. Nanosecond Response Speed: The PLC scanning and I/O response times reach nanosecond levels, enabling a massive counting capacity of 6000-7000 tablets per minute.
2. Intelligent IR Dust Compensation: Our self-designed photoelectric unit features dynamic light compensation. The system automatically adjusts for dust accumulation, ensuring "Zero Error" counting and reducing downtime for cleaning.
3. Patented Gating & Anti-Leak System: The integrated small gate slicing device (Patented) uses a unique direct-connect block to eliminate air leaks, significantly improving cylinder response time and cutting accuracy.
4. Stable 3-Stage Vibration: Using closed-loop control technology, the system monitors vibration frequency in real-time. This ensures tablets are separated perfectly without overlapping, reducing noise and protecting delicate pills.
5. Smart Line Integration: Built-in "No Bottle, No Count" and "Bottle Jam" sensors allow the SED-8S-S to synchronize perfectly with your entire production line.

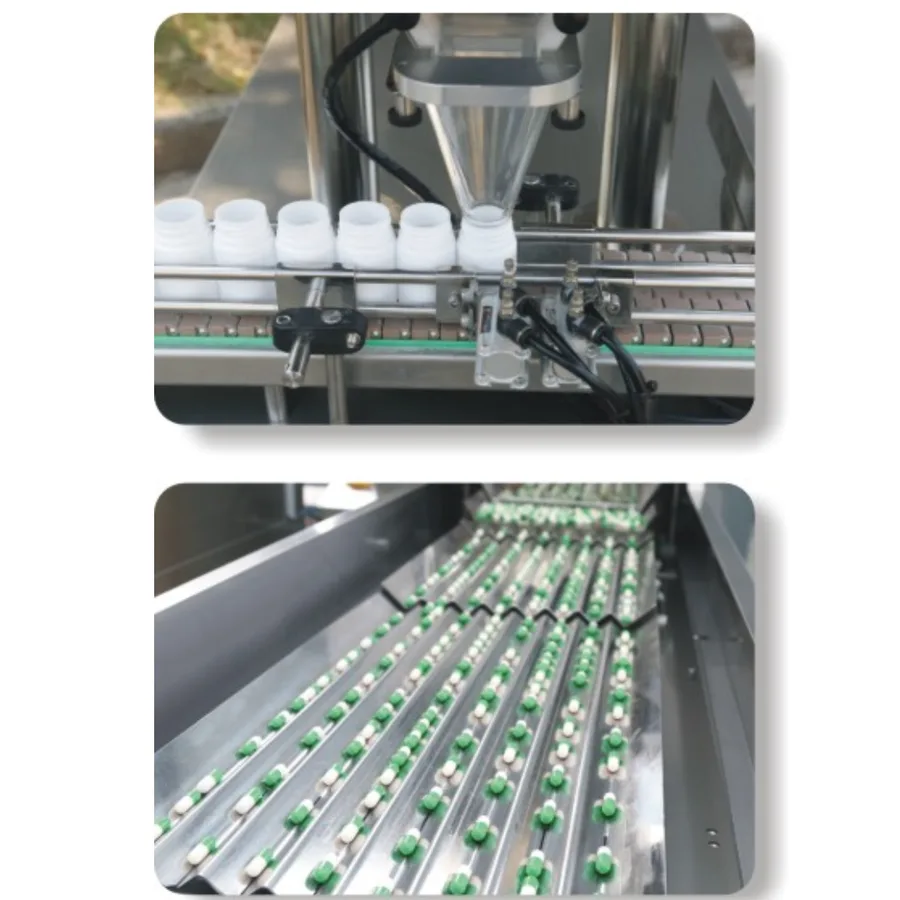

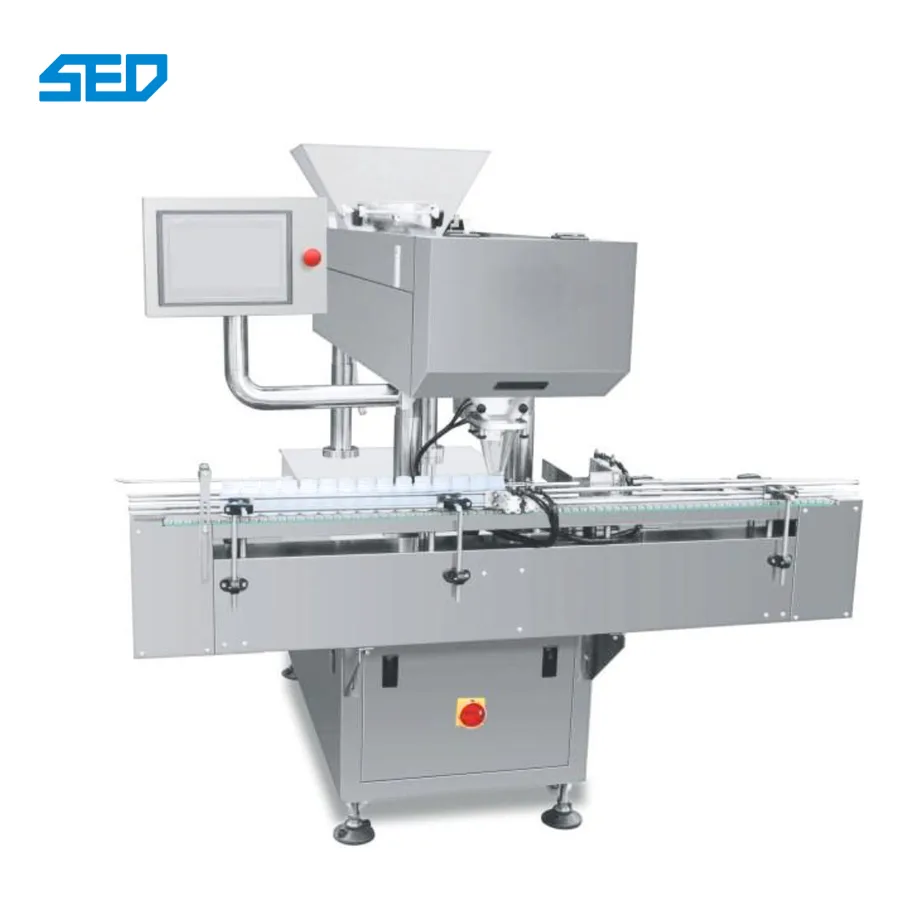

Product Show of Capsule Counting Machine​

Application of Capsule Counting Machine

The electronic counting machine is mainly used in medicine, industry, chemical industry, food and other industries. It can be widely used in the counting and bottling of solid preparations, such as pills, sugar-coated tablets, plain tablets, soft and hard capsules and other granules of various shapes.
