Visual Inspection Equipment

High Speed 360° Tablet Visual Inspection Equipment System High Accuracy

Name: High Speed 360° Tablet Visual Inspection Equipment System High Accuracy
Brand: SED Pharma

Product Overview of High-Speed 360° Tablet Visual Inspection System The SED-2500YSJT-B Tablet Inspection Machine is a high-speed 360° tablet inspection system designed for pharmaceutical production lines. It automatically inspects tablets for appearance defects such as cracks, chips, contamination, color variation, and shape abnormalities. With a detection speed of up to 150,000 tablets per hour, this tablet inspection equipment ensures high-precision quality control while maintaining stable and efficient operation. The system supports inspection of conventional tablets,

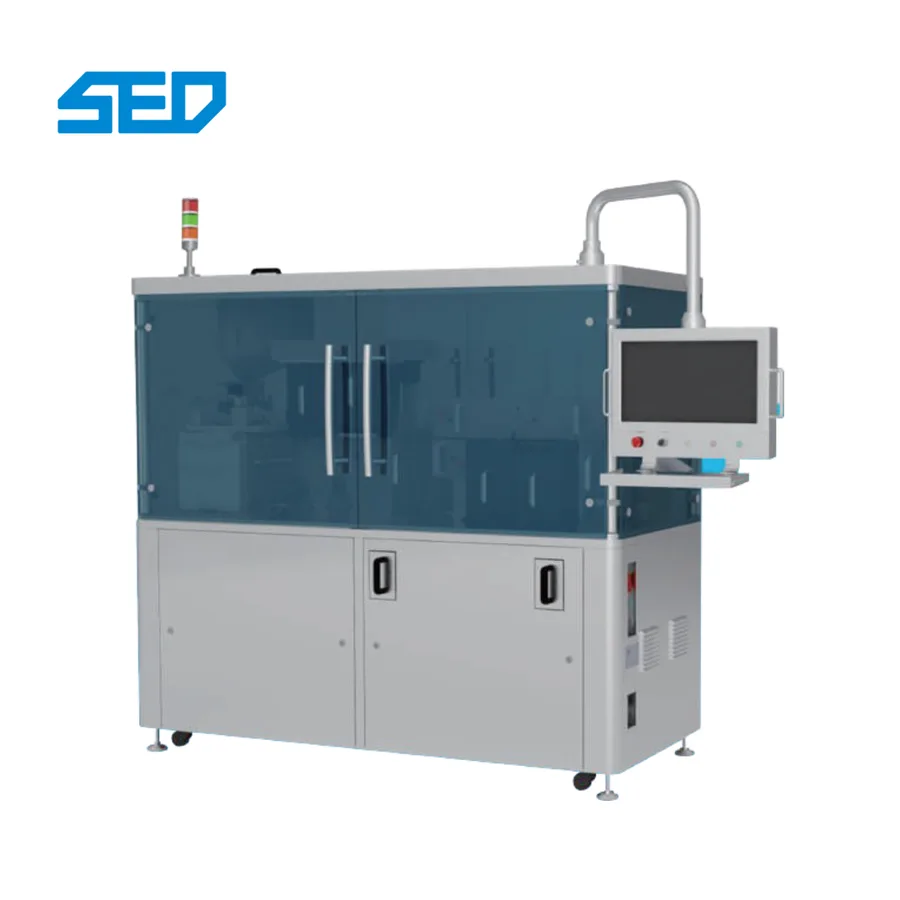

High Speed 360° Tablet Visual Inspection Equipment System High Accuracy, view 1

Product Details:

Place of Origin:	China
Brand Name:	SED Pharma
Certification:	CE
Model Number:	SED-2500YSJT-B

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	Wooden Case
Delivery Time:	50-60 Days after receiving the deposit
Payment Terms:	T/T,L/C,,Cash
Supply Ability:	30 Sets per month

Request configuration

Configuration and product details

Technical overview

Name: High-Speed 360° Tablet Visual Inspection System
Inspection Item: Conventional tablets, Elliptical tablets, Controlled-release tablets
Air Pressure: 0.5–0.7 MPa
Power Supply: 380 V ; 3P ; 50 Hz
Size: 2100 * 900 * 1900 MM
Weight: 1100 KG
key word: tablet inspection machine, tablet inspection equipment, pharmaceutical tablet inspection machine, tablet visual inspection system

Product Overview of High-Speed 360° Tablet Visual Inspection System

The SED-2500YSJT-B Tablet Inspection Machine is a high-speed 360° tablet inspection system designed for pharmaceutical production lines. It automatically inspects tablets for appearance defects such as cracks, chips, contamination, color variation, and shape abnormalities.

With a detection speed of up to 150,000 tablets per hour, this tablet inspection equipment ensures high-precision quality control while maintaining stable and efficient operation. The system supports inspection of conventional tablets, elliptical tablets, and controlled-release tablets, making it suitable for a wide range of pharmaceutical applications.

The equipment is equipped with a 360° visual inspection system and automatic rejection station, ensuring defective tablets are removed accurately without affecting production efficiency.

Product Parameters of High-Speed 360° Tablet Visual Inspection System

Model	SED-2500YSJT-B
Inspection Specifications	• Conventional tablets: Φ 5–13 (MM) ; H 2–10 (MM) • Elliptical tablets: L 5–22 (MM) ; W 5–12 (MM) ; H 2–8 (MM) • Controlled-release tablets: Φ 8.8–12.3 (MM); H 4.6–8.2 (MM)
Detection Speed	• Conventional tablets: 150,000 pcs/hour • Controlled-release tablets: 96,000 pcs/hour
Size	2100 * 900 * 1900 MM
Power Supply	380 V ; 3P ; 50 Hz
Power	10 KW
Air Pressure	0.5–0.7 MPa
Weight	1100 KG
Rejection System	Having a removal station

Feature of High-Speed 360° Tablet Visual Inspection System

Versatile Inspection: Handles everything from standard round tablets to complex controlled-release geometries.
Precision Rejection System: Features a dedicated removal station to instantly eject defective products without stopping the line.
High Throughput: Massive capacity of 150,000 pieces per hour, perfect for industrial-scale manufacturing.
GMP Compliant Design: Robust 1100 KG build quality suitable for sterile pharmaceutical environment

Show of Automatic 360° Soft Capsule Vision Inspection Machine

tablet vision inspection machine
