Capsule Counting Machine
High Accuracy Capsule Counting Machine Automatic Capsule Counter
Product Introduction of Capsule Counting Machine This machine is widely applied for tablet or capsule counting for mini production in hospital, small pharmaceutical factory etc. Product parameters of Capsule Counting Machine Model capsule counting machine Productivity 10-30bottles/min Applicable target #00-5 capsule, soft capsule, Ø 5.5-20 tablet,shaped,sugarcoated tablet and Ø3-20 pill Applicable bottle type 10-500ml round, square bottle Accuracy rate >99.5% Power & Voltage 220V/380V 50Hz,0.6kw Dimension(L*W*H) 1360*1350*1650(mm) Weight 360KG Warranty 1 year
| Place of Origin: | China |
|---|---|
| Brand Name: | SED Pharma |
| Certification: | CE |
| Model Number: | SED-8S |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 35 days after receiving the deposit |
| Payment Terms: | T/T,L/C, ,Cash |
| Supply Ability: | 30 Sets Per Month |
Configuration and product details
Technical overview- Name
- High Accuracy Capsule Counting Machine Automatic Capsule Counter
- Model
- capsule counting machine
- Productivity
- 10-30bottles/min
- Applicable target
- #00-5 capsule, soft capsule, Ø 5.5-20 tablet,shaped,sugarcoated tablet and Ø3-20 pill
- Applicable bottle type
- 10-500ml round, square bottle
- Accuracy rate
- >99.5%
- Power & Voltage
- 220V/380V 50Hz,0.6kw
- Weight
- 360KG
- material
- stainless steel
- key word
- Capsule Counting Machine Tablet bottling machine
Product Introduction of Capsule Counting Machine
This machine is widely applied for tablet or capsule counting for mini production in hospital, small pharmaceutical factory etc.
Product parameters of Capsule Counting Machine
| Model | capsule counting machine |
| Productivity | 10-30bottles/min |
| Applicable target | #00-5 capsule, soft capsule, Ø 5.5-20 tablet,shaped,sugarcoated tablet and Ø3-20 pill |
| Applicable bottle type | 10-500ml round, square bottle |
| Accuracy rate | >99.5% |
| Power & Voltage | 220V/380V 50Hz,0.6kw |
| Dimension(L*W*H) | 1360*1350*1650(mm) |
| Weight | 360KG |
| Warranty | 1 year |
Trait of Capsule Counting Machine
counts grain through 8 strips of channel, medicament can lay off through passing two classes automatically, falling medicines is uniform and counting tablets is precise, being suitable for all kinds of single bottle filling quantity and tablet type, changing variety without replacing any mould.
It adopts the Omron PLC control and the sensitive technology of the CCD and its distinguishing rate is high, responding speed is fast, and the operating is the stepless timing. It is very convenient to operate; its control system is controlled by adopting the man machine interface touch screen.
Adopting international name brand photo-electricity controlling system, controls when bottles are lacking and blocking, then cease automatically, the operating is stable and reliable. Materials touching with the medicine conforms to the requirements of GMP.
The machine is suitable for tablet or capsule counting and filling in pharmaceutical or food industries.

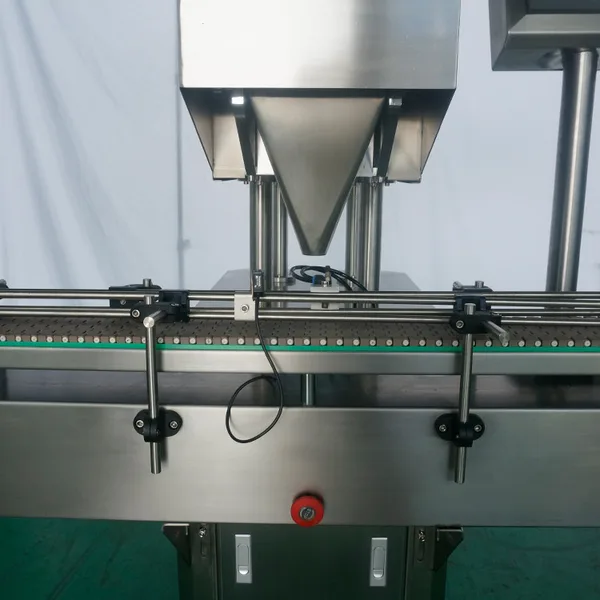

Product Show of Capsule Counting Machine
Application of Capsule Counting Machine
