Groove Type Powder Mixer Blender Machine For Pharmacy Chemical Food Industry

Groove Type Powder Mixer Blender Machine For Pharmacy Chemical Food Industry



Product Description of Mixer Machine



Groove Type mixer is widely used to mix powder or moisture materials and make the different proportion of main and supplementary materials mixed evenly.



All the parts touched with materials are made of stainless steel. The clearance between blades and vessel body is small so that there is no dead corner during mixing.



Sealed devices are installed at the two ends of mixing shaft to prevent the leakage of materials. It is widely used in the industries of pharmacy, chemical, food, etc.



Parameter of Mixer Machine



Volume (L)	200
Power of agitation motor (kw)	3.5
Rotation speed of agitation (r/min)	24
Power of Inclined motor (kw)	0.8
Input(kgs)	100
Weight (kg)	400
Overall dimensions (mm)	1360×600×1200



Working Principle of Mixer Machine



The working principle of the trough mixer is that the stirring part of the trough mixer is a single-shaft single paddle, and the blade angle design on the single paddle is extremely reasonable and ingenious. A certain angle of pushing force is generated



on the left and right sides of the tank, so that the material in any corner of the mixing tank cannot be stationary, so that the material can be mixed evenly.



Feature of Mixer Machine



1. Good dispersion: The equipment completely solves the problems of low uniformity and dead angle caused by different specific gravity of materials. This equipment adopts the mixing structure of five-axis with flying knife mortar, which can effectively disperse various short fibers.


2. Wide range of use: The equipment can meet the production of dry mortar with different performance requirements. Such as: masonry mortar, plastering mortar, polymer mortar required for thermal insulation system, polystyrene particle moisturizing mortar and other dry powder mortar.


3. Small investment: The equipment has obvious price advantage. Small investment and quick results.


4. Simple and convenient to use: The equipment has a small footprint, simple operation, low energy consumption, and can produce 5-8 tons per hour.


5. Long service life: The vulnerable parts of the equipment are all made of high-strength wear-resistant steel. It has the characteristics of long service life.

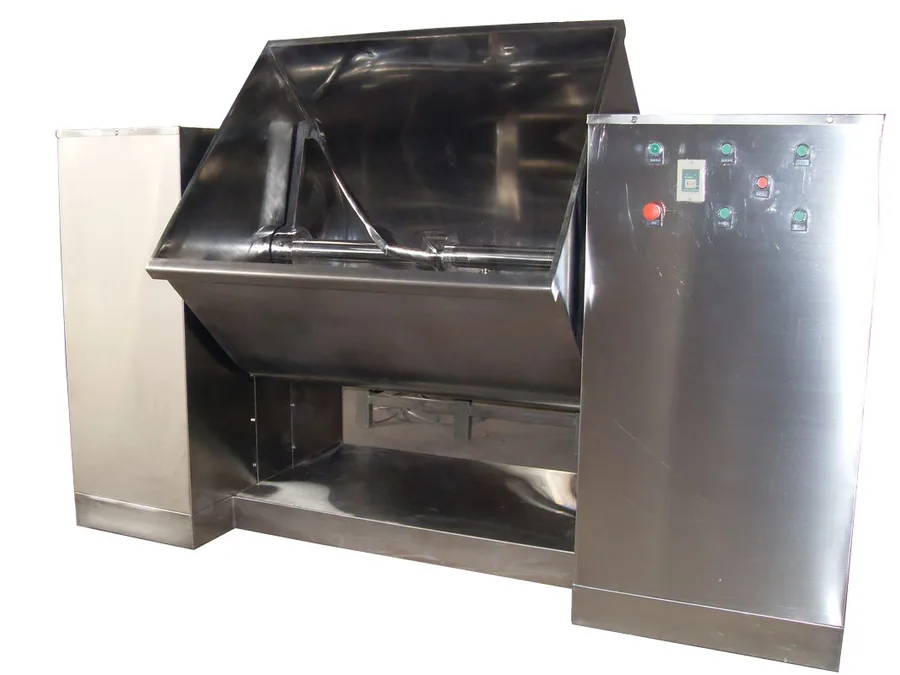

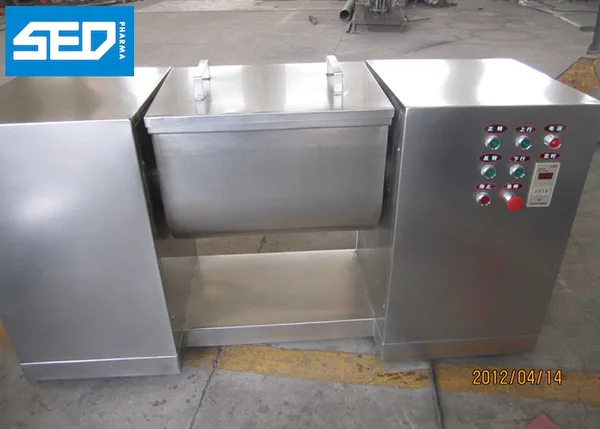

Product Show of Mixer Machine





Application of Mixer Machine
