Fully Automatic Chewing Gum Candy Tablet Capsule Counting Machine With 32 Passageway

Product Description of Counting Machine



The electronic counting machine is a lightweight and compact solid particle counting and filling equipment. Adopt international advanced 8-channel vibration, computer control, dynamic scanning counting, automatic bottle feeding, photoelectric control.



Designed in strict accordance with GMP standards, equipped with intelligent safety protection devices such as system self-checking, error alarm, and automatic shutdown. As a high-tech material counting and filling machine, SED-32-SLJ is widely



used in the counting and filling of tablets, capsules, pills, food, health products and other materials in the pharmaceutical, food, chemical and other industries.



Detailed Parameters of Counting Machine

granule size	mm	00-5# capsules, soft gels, ф5.5-20 normal tablets,special shape tablets, coating tablets,ф3-20 pills
Capacity	Bottles/min	70-90
Power	W	1200
Vacuum pump	Mpa	0.06
Filling range	pcs/time	2-9999
Oversize of machine	Mm	2160*1530*1700mm
Weight of machine	Kg	710



Working Principle of Counting Machine



The core working principle of the electronic particle counting machine: using the photoelectric effect principle, when the medicine particles fall, the signal generated by the photoelectric sensor is generated. Operation process: put the bottle (can be



connected to the assembly line) -> bottle conveying (automatic realization of the equipment) -> bottle positioning -> several pieces of filling -> intermittently change the bottle to repeat the above actions.



Feature of Counting Machine



With touch screen ,easy to operate



Avoid the materials jam

Hopper mouth of the special structure, to prevent the materials jam, small mouth bottle can quickly bottling



Protect materials from harm

Feeding evenly with quiver, special patent filling part, no breakage of the material.



Detection and sorting function

No bottle will not count and fill. Automatically remove bottles of filling abnormalities and broken tablets.

Self-diagnose errors and stop working to make alarm at errors.



Anti-dust

Using our own original high anti-dust sensor technology, the machine works

accurately with good stability in heavy dust conditions.

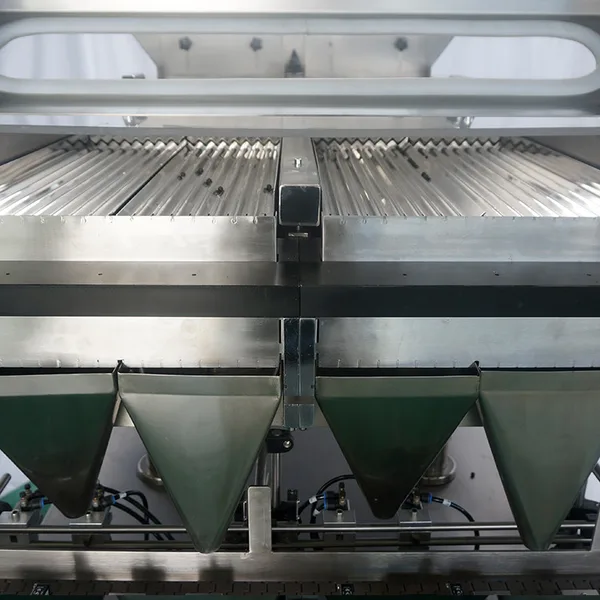

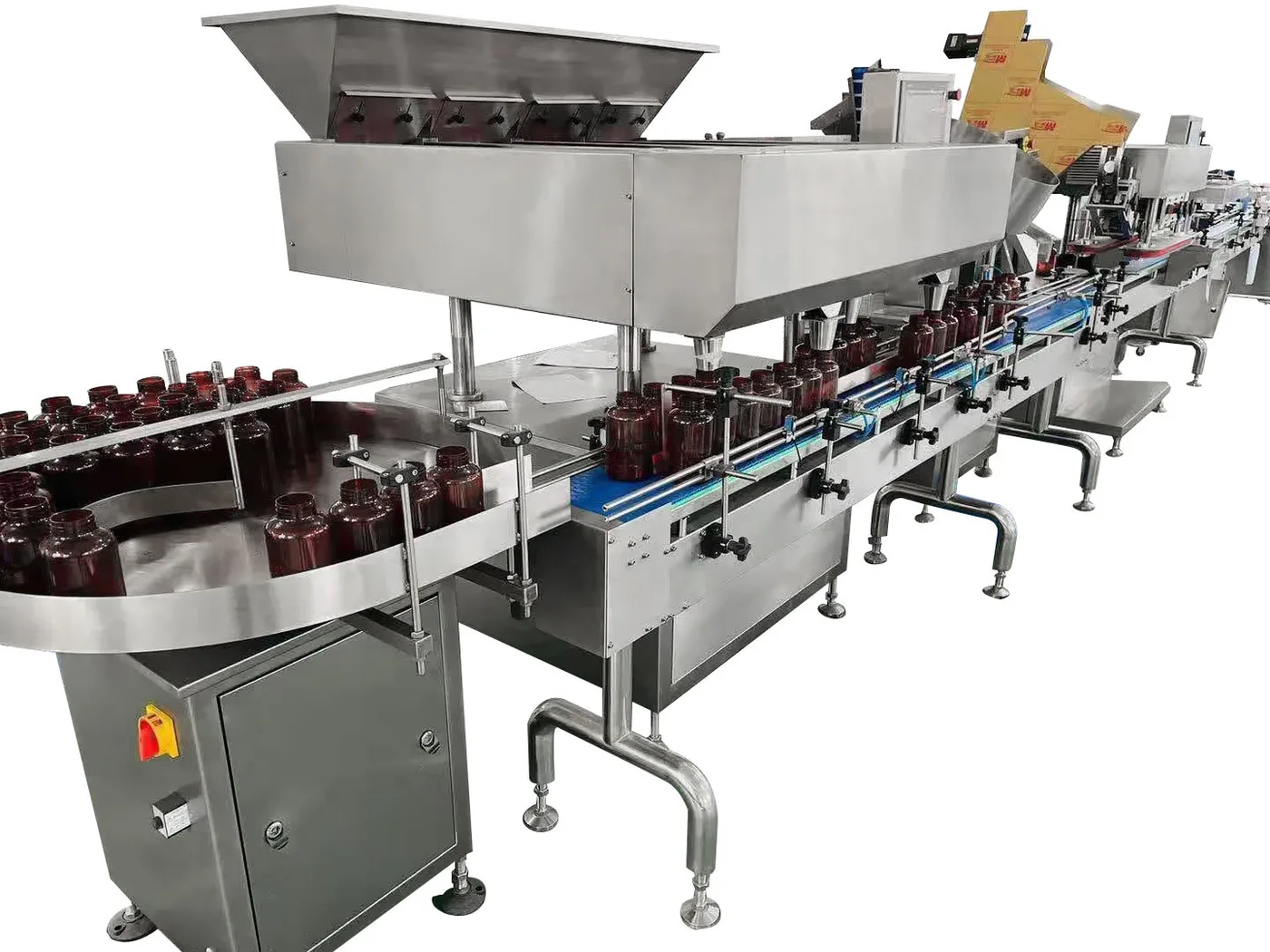

Photo show of Counting Machine





Application of Counting Machine



Electronic Counting Machine is mainly suitable for medicine, industry, chemical industry, food and other industries. It can be widely used for counting and bottling solid preparations, such as pills, sugar-coated tablets, plain tablets, soft and hard



capsules and other shapes of medicine granules. This machine can be used independently, and can also form a linked production line with other supporting equipment such as bottle unscrambler, paper stopper, capping machine, sealing and labeling machine.
