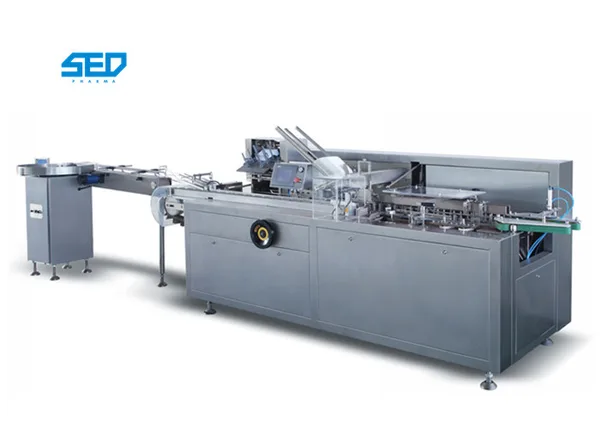

Automatic Cartoning Machine
Fully Automatic Cartoning Machine Stainless Steel Bottle Packing Cartoner
The SED-100WZH Automatic Cartoning Machine is a high-performance horizontal cartoner built for pharmaceutical production lines where reliability and GMP compliance are non-negotiable. With a speed of 60 to 100 cartons per minute, SUS 304 stainless steel construction, and CE certification, it handles bottles, ampoules, vials, and blister packs across a wide carton size range. Every machine ships with a complete DQ, IQ, and OQ validation documentation package, ensuring your next regulatory audit is met with confidence rather than crisis. Core Selling Points GMP Validation Pac
| Place of Origin: | China |
|---|---|
| Brand Name: | SED Pharma |
| Certification: | CE |
| Model Number: | SED-100WZH |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 40 Days after receiving the deposit |
| Payment Terms: | T/T,L/C,,Cash |
| Supply Ability: | 30 Sets Per Month |
Configuration and product details
Technical overview- Name
- Fully Automatic Cartoning Machine Stainless Steel Bottle Packing Cartoner
- Item
- Cartoner
- Speed
- 60-100 Cartons per minute
- Weight
- 1100kgs
- Fold range
- 1-4 Folds
- Carton size
- （40-200）×（12-85）×（16-70）mm
- Power supply
- 380V 50HZ Three Phase
- Power
- 1.5kw
- material
- stainless steel
- key word
- Automatic Cartoning Machine
The SED-100WZH Automatic Cartoning Machine is a high-performance horizontal cartoner built for pharmaceutical production lines where reliability and GMP compliance are non-negotiable. With a speed of 60 to 100 cartons per minute, SUS 304 stainless steel construction, and CE certification, it handles bottles, ampoules, vials, and blister packs across a wide carton size range. Every machine ships with a complete DQ, IQ, and OQ validation documentation package, ensuring your next regulatory audit is met with confidence rather than crisis.
DQ, IQ, and OQ protocol templates, SUS 304 material traceability certificates, and calibration logs — everything your QA team needs for FDA, EMA, or MHRA inspections with complete confidence.
Send us your actual carton blanks and product samples. We run a full Factory Acceptance Test calibrated to your exact materials, eliminating carton compatibility risks upon arrival.
Hand-wheel mechanisms and quick-release guides enable format change in under 20 minutes with no specialized tools. PLC recipe recall for one-touch parameter restoration.
Three-tier access control (Operator, Maintenance, Admin) with tamper-evident audit trail. Supports electronic record integrity and data security requirements for regulated markets.
Full stainless steel welded frame with no paint to peel. Designed for pharmaceutical cleanroom environments classified ISO 7 (Class 10,000) and above.
PLC-enabled remote diagnostics via video call. Common wear parts shipped within 5 working days. Detailed English operation manual with exploded-view diagrams included.
- Pneumatic-Driven Core Actions: Key folding and insertion movements use pneumatic actuation instead of servo-overload. This reduces electronic failure points and improves long-term reliability under continuous multi-shift operation.
- Tool-Free Quick Changeover: Carton size adjustment uses hand-wheel mechanisms and quick-release guides. Format change takes under 20 minutes with no tools required. Recipe parameters are stored in the PLC for one-touch recall.
- GMP-Ready Validation Package: Every machine includes DQ, IQ, and OQ protocol templates, material traceability certificates for SUS 304 stainless steel, and a calibration log. Your QA team walks into any FDA, EMA, or MHRA inspection with a complete paper trail.
- Pre-Shipment FAT with Customer Samples: Send us your actual carton blanks and product samples before shipment. We run a full Factory Acceptance Test calibrated to your exact materials, eliminating the risk of carton compatibility issues upon arrival.
- 3-Tier PLC Access Control: Operator, Maintenance, and Admin level permissions with tamper-evident audit trail. Supports 21 CFR Part 11 data integrity requirements for electronic records.
- Wide Carton Compatibility: Accepts carton sizes from 40 x 12 x 16 mm up to 200 x 85 x 70 mm with 1 to 4 folds. Suitable for paper stock from 250 to 350 grams per square meter, including FBB and coated grades common in European markets.
- Industrial-Grade Construction: Full SUS 304 stainless steel frame and product-contact surfaces. Welded construction eliminates paint peeling risks in cleanroom environments. Total machine weight of 1,100 KG provides vibration-dampening stability at high speeds.
- Structured After-Sales Support: PLC-enabled remote diagnostics via video call. Common wear parts (suction cups, belts, sensors) ship within 5 working days. Detailed English operation manual with exploded-view diagrams included. Optional onsite commissioning engineer available.
| Model | SED-100WZH |
| Speed | 60 to 100 cartons per minute |
| Carton Size Range | (40 to 200) x (12 to 85) x (16 to 70) mm |
| Fold Range | 1 to 4 folds |
| Carton Paper Quality | 250 to 350 g per square meter |
| Main Material | SUS 304 stainless steel (frame and product-contact parts) |
| Control System | PLC touchscreen with 3-tier user access control |
| Power Supply | 380V; 50Hz; Three Phase |
| Power | 1.5 KW |
| Machine Weight | 1,100 KG |
| Certification | CE (EU Machinery Directive 2006/42/EC) |
| Supply Capacity | 30 sets per month |
| Delivery Time | 40 days after deposit |
| Packaging | Export-grade fumigated wooden case |
Every SED-100WZH ships with a comprehensive documentation package designed to support regulatory inspection readiness. The DQ protocol template maps your User Requirement Specification against machine design parameters. The IQ template provides a step-by-step installation verification checklist. The OQ template establishes a 72-hour run-data baseline with full parameter verification. All product-contact materials come with mill traceability certificates compliant with FDA 21 CFR 211.65. The PLC audit trail meets 21 CFR Part 11 requirements with tamper-evident event logging and role-based access control.
Options for YouThe SED-100WZH is engineered for pharmaceutical and healthcare packaging lines requiring high-speed cartoning of bottles, ampoules, vials, blister packs, and pre-filled syringes. It is widely deployed in solid dose production (tablets, capsules, softgels), sterile injectable lines, diagnostic kit packaging, and veterinary pharmaceutical manufacturing. The machine's GMP-compliant design and stainless steel construction make it suitable for cleanroom environments classified ISO 7 (Class 10,000) and above.
Send us your carton samples and product specifications. We will run a free FAT simulation and deliver a complete quotation within 48 hours.
