Fully Automatic Blister Pack Inspection Visual Inspection Equipment / Machine



Product Overview of Fully Automatic Blister Pack Inspection Machine

The SED-800PZSJ-F Fully Automatic Blister Pack Inspection Machine is designed for tablets and soft/hard capsules packaged in aluminum-plastic blister packs. Installed after the blister packaging machine, it inspects boards automatically to ensure high-quality packaging and accurate product verification.

With a detection speed of 800 pcs/min, this machine can identify defects such as air bubbles, excessive filling, tablet defects ≥20%, capsule missing cap, powder leakage, poor heat sealing, cutting deviation, and batch number errors. Optional side/back inspection stations provide even more comprehensive quality control.



Product Parameters of Fully Automatic Blister Pack Inspection Machine

Model	SED-800PZSJ-F
Applicable	Tablets, soft/hard capsules
Inspection Specifications	Length ≤ 200 MM
Applicable Packaging Form	Aluminum-plastic Packaging
Detection Speed	800 PCS/MIN
Inspection Item	Pills, soft/hard capsules with air bubbles, excessive filling, tablet defects not less than 20%, capsule missing cap, capsule powder leakage, poor heat sealing, cutting deviation, batch number, etc
Installation Location	After the bubble wrap packaging machine, the bubble wrap board is attached with film and cut into boards
Optional	Side/back inspection station



Feature of Fully Automatic Blister Pack Inspection Machine

High Speed ​​and Efficiency: Inspects up to 800 blister packs per minute, seamlessly integrating with high-volume production lines to avoid bottlenecks.



Advanced AI Vision Inspection: Utilizes a high-resolution camera to identify various defects, including:

• Product Defects: Tablet breakage, powder leakage, missing caps, and fill volume deviation (>20%).
• Packaging Defects: Bubbles, poor heat sealing, and cutting deviations.
• Compliance Checks: Verifies batch numbers and expiration dates (OCR/OCV).

Wide Applicability: Perfectly suited for standard aluminum-plastic (Alu-PVC/PVDC) blister packaging of tablets, soft capsules, and hard capsules.



Flexible Specifications: Handles blister packs up to 200 mm in length, meeting the needs of various packaging sizes.



Optional Dual-Sided Inspection: Upgradeable to a side/back inspection station, ensuring 360° all-around quality control for critical products.



Seamless Integration: Designed for direct mounting after the blister packaging and cutting machines, featuring automatic rejection of defective blister packs.

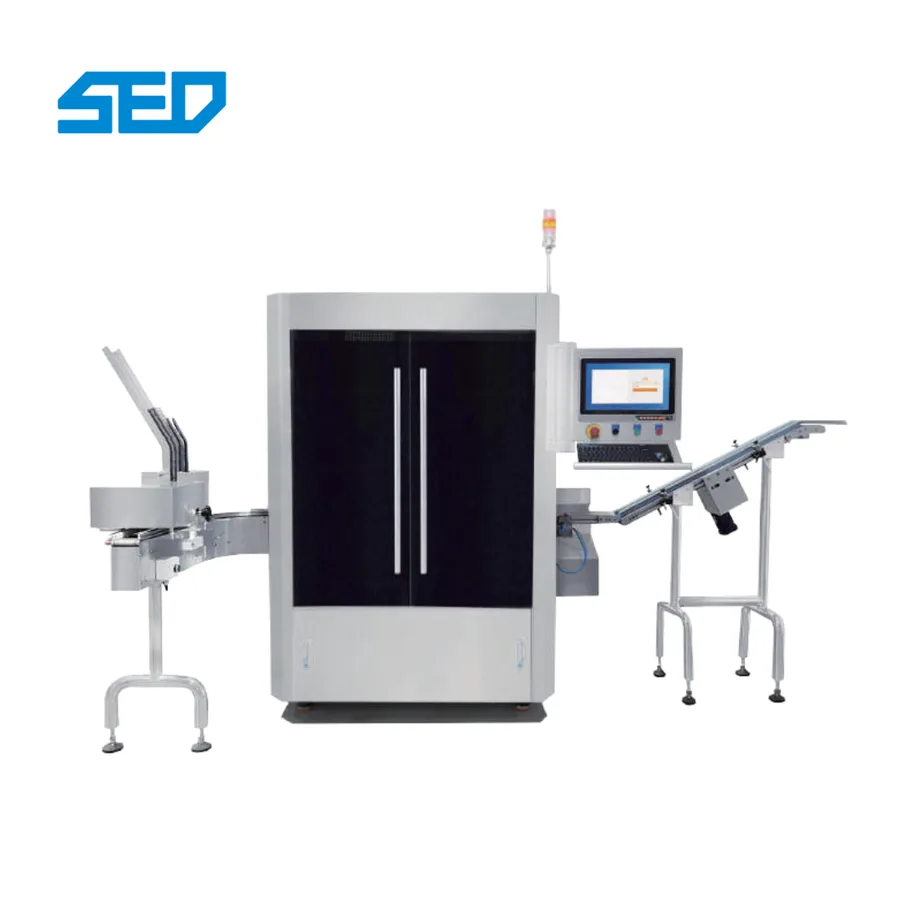

Show of Fully Automatic Blister Pack Inspection Machine
