Energy Saving Automatic 48 Channel Gelatin Capsule Counting Machine

Energy Saving Automatic 48 Channel Gelatin Capsule Counting Machine



Technical Parameters of Tablet Counter Machine

Model name	SED-48S
Product name	Energy Saving Automatic 48 Channel Gelatin Capsule Counting Machine
Application	Hard capsule(000-5#) Soft Gelatin capsule Pills, tablets Chewing gum, other solid object (Diameter: 5.5-22mm)
Hopper Volume	100L
Capacity	10-120bottles/min
Filling Quantity	2-9999pcs/bottle (adjustable)
Power supply	220v 50HZ 1.6KW
Compressed air	0.6Mpa 5L/min
Bottle Size	Diameter: ≤50mm Height: ≤180mm
Counting Size	Pills with diameter of 22 or less are compatible with 000-5 capsules soft capsules with diameters of 3.5-22 plain tablets special-shaped tablets sugar-coated tablets
Machine Weight	900kg
Machine Size L × W × H (mm)	2160*1560*1700mm



Main Features of Tablet Counter Machine



1. Compatibility, high accuracy, wide application and use of the Company's original anti-dust photoelectric detection of high technology, can count Tablets (including special-shaped tablets), capsules, soft capsules (transparent, opaque), pill count to bottling;



2. Vibratory cutting drugs do not damage;



3. A high degree of intelligence, with no bottle is not the number of self-fault detection alarm and many other control functions;



4. Compact structure, stability and durability, and no regular replacement parts, small footprint, the use of low-cost;



5. To facilitate the replacement of species, can automatically take-off and landing, demolition cleared without any tools, convenient and quick;



Working Principle of Tablet Counter Machine



Electronic counting machines are our company's star products, which is a stable reliable electronic products that was successfully developed through repeated experiment after a long time research. Its core part and control system



adopt imported original accessories. It mainly consists of such structures as hopper, vibration transmission, photoelectric sensor, dust storage box,human-computer interface.

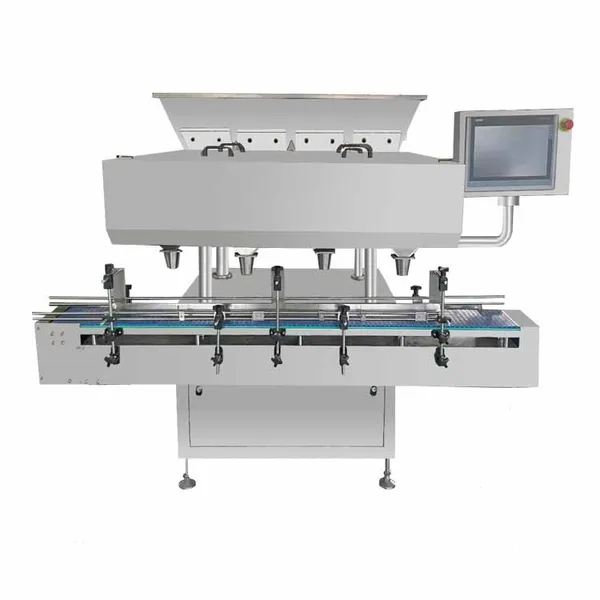

Product Show of Tablet Counter Machine



Application of Tablet Counter Machine



Suitable for a wide range of granules, such as tablets, capsules, gels, beans, hardwares, candy, etc.0-5#capsules, soft capsules, φ5.5-12 normal tablets, special shape tablets, coating tablets and other solid granules
