Capsule Counting Machine

Electronic Soft Gelatin Capsule Counting Machine With Siemens Touch Screen

Name: Electronic Soft Gelatin Capsule Counting Machine With Siemens Touch Screen
Brand: SED Pharma

Product Introduction of Counting Machine The high-speed tablet & capsule counting and filling machine has 32-channel counting channels. Compact design with dual-track conveyor can enhance the capacity of output. The SED-32S is equipped with advanced detecting system which can count and fill all standard and irregular shapes and all sizes of tablet, capsules, caplets, soft gels with 100% accuracy. Product parameters of Counting Machine Model Name SED-32S Application Filled capsule(00-5#) Soft Gelatin capsule chewing gum tablet other solid object under machine range

Product Details:

Place of Origin:	China
Brand Name:	SED Pharma
Certification:	CE
Model Number:	SED-32S

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	Wooden Case
Delivery Time:	35 days after receiving the deposit
Payment Terms:	T/T,L/C, ,Cash
Supply Ability:	30 Sets Per Month

Request configuration

Configuration and product details

Technical overview

Name: Electronic Soft Gelatin Capsule Counting Machine With Siemens Touch Screen
Hopper Volume: 60L
Bottle Size: Diameter: 30-90mm Height:40-250mm
Compressed air: 0.5Mpa
Machine Weight: 710KGS
Dimension: 2160*1530*1700mm
Machine Speed: 2-9999 pcs /min
Warranty: 1 Year
material: stainless steel
key word: Capsule Counting Machine Tablet bottling machine

Product Introduction of Counting Machine

The high-speed tablet & capsule counting and filling machine has 32-channel counting channels. Compact design with dual-track conveyor can enhance the capacity of output.

The SED-32S is equipped with advanced detecting system which can count and fill all standard and irregular shapes and all sizes of tablet, capsules, caplets, soft gels with 100% accuracy.

Product parameters of Counting Machine

Model Name	SED-32S
Application	Filled capsule(00-5#) Soft Gelatin capsule chewing gum tablet other solid object under machine range
Hopper Volume	80L
Capacity	2-9999 pcs /min 70-90bottles/min
Filling Quantity	2-9999pcs/bottle (adjustable)
Bottle Size	Diameter: 30-90mm Height:40-250mm
Counting Size	Thickness: 3.5-10mm Diameter: 3.5-15mm Length: 3.5-30mm
Compressed air	0.5Mpa
Conveyor Belt Length	3000mm
Machine Weight	710kg
Machine Size L × W × H (mm)	216015301700mm

Feature of Counting Machine

1. Compatibility, high accuracy, wide application and use of the Company's original anti-dust photoelectric detection of high technology, can count Tablets (including special-shaped tablets), capsules, soft capsules (transparent, opaque), pill count to bottling;

2. Vibratory cutting drugs do not damage;

3. A high degree of intelligence, with no bottle is not the number of self-fault detection alarm and many other control functions;

4. Compact structure, stability and durability, and no regular replacement parts, small footprint, the use of low-cost;

5. To facilitate the replacement of species, can automatically take-off and landing, demolition cleared without any tools, convenient and quick;

Working Principle of Counting Machine

SED-32S Automatic Electronic counting machine is special for counting tablets, soft gelatin, hard capsule and chewing gums, etc. This machine adopts 32 sets imported counting sensor for counting with 32 Guiding Way and two head.

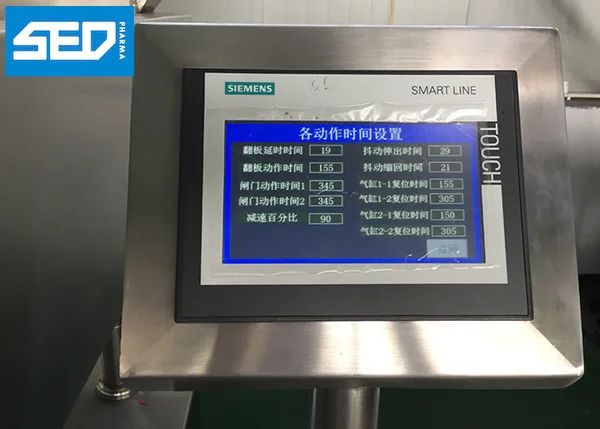

The advantage of the machine is no need change mould when you change the counting object, only adjusting the counting table height by Easy Adjust wheel. The machine comes with Touch screen operation and PLC Control for convenient running.

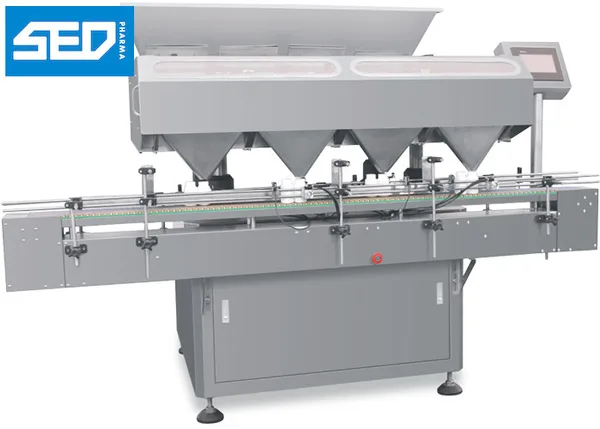

Product Show of Counting Machine

Electronic Soft Gelatin Capsule Counting Machine With Siemens Touch Screen product detail
