Electric Customizable Alu Alu Blister Packing Machine



Product introduction of Blister Packaging Machine​



This machine adopts photoelectric control system, automatic feeding device for duralumin packaging and automatic blanking device for scrap edge to ensure the synchronous stability of ultra long distance multi station. This machine is suitable for: capsule, tablet, pill, medical device, light food, electronic component blister sealed packaging.

The whole machine is made of 304 stainless steel, with less land occupation, low investment, multi-function, high efficiency, no pollution and low noise.


Main features of Blister Packaging Machine​

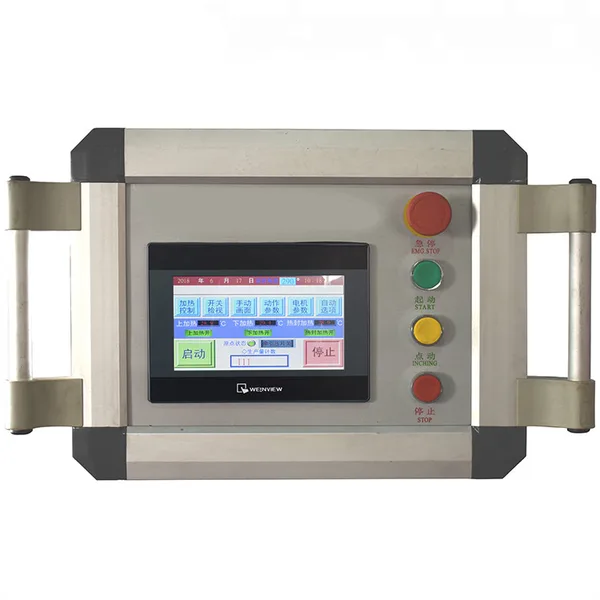

1. Intelligent control panel with multiple functions but simple operation.

2 Smooth blowing and stable forming.

3. The mold positioning is accurate, the size of the molding mold is uniform and accurate, and the mold can be replaced according to the actual situation.



Main Parameter of Blister Packaging Machine

SPECIFICATIONS FOR Blister packing machine
Cutting Frequency	A1-A1: 6-20 times/min A1-plastic: 20-40 times/min
Max. Production Capacity	A1-A1: 1200 (According to standard plate 80×57) A1-plastic: 2400 (According to standard plate 80×57)
Max. Forming Area and Depth	Al-Al: 80× 90×14 Al-plastic: 80×1 10×26 (Standard 70×90×14)
Travel Range	20-100 (Can be manufactured as user's requirements)
Air Pressure	0.4-0.6
Standard Plate	80×57 (Can be manufacturer red as user's requirements)
Total Power	380V/220V 50Hz 1.8kw
Main Motor Power	0.75
PVC Rigid Sheet	0.15-0.5×80
PTP Aluminum Foil	0.02-0.035×80
Dialysis Paper	50-100g×80
Mould Cooling	Tap Water or Circulating Water
Overall Dimensions	1400×460×950(L×W×H)
Weight	450

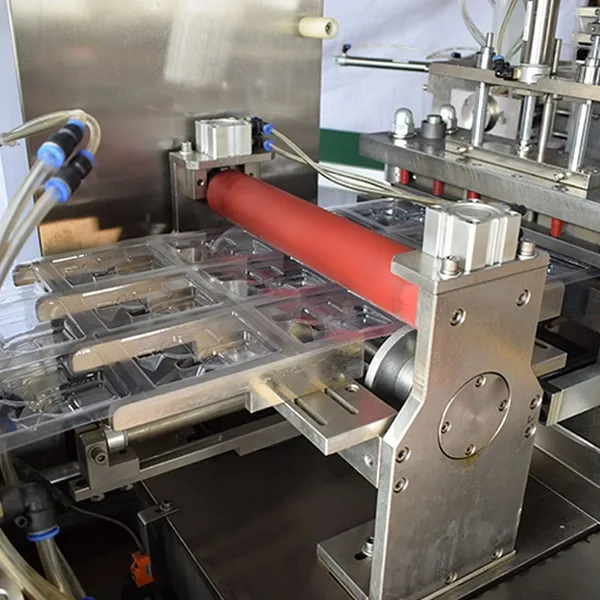

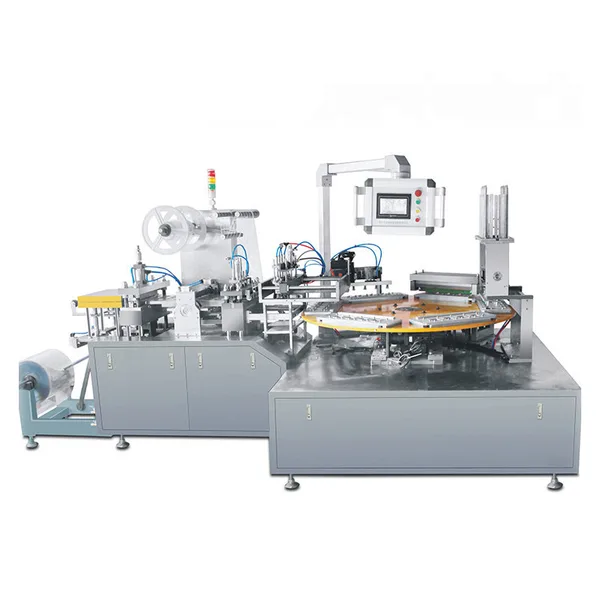

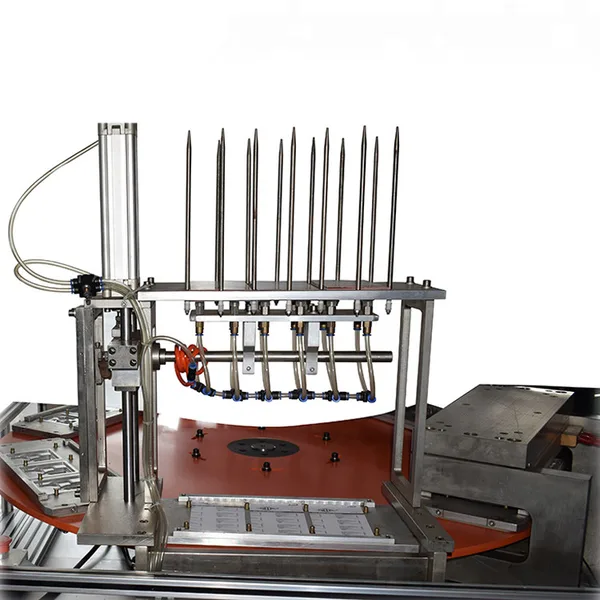

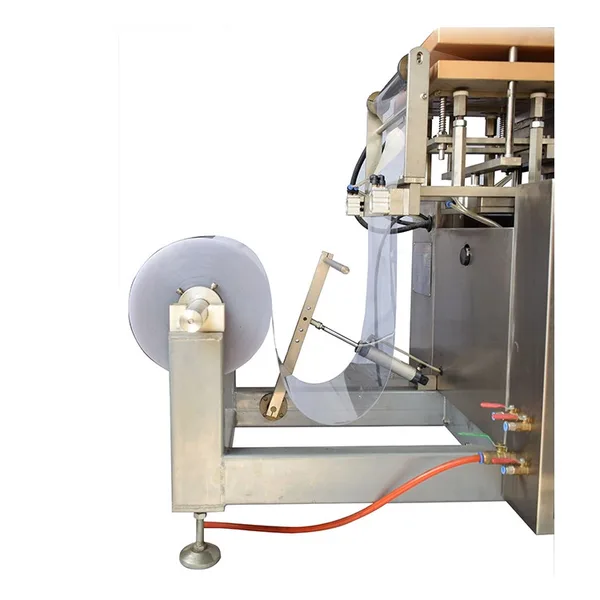

Product Show of Blister Packaging Machine



Application of Blister Packaging Machine​
