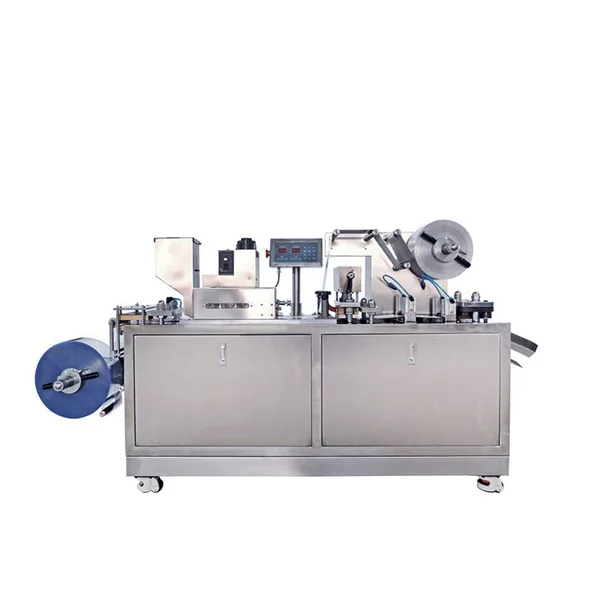

Blister Packing Machine
Double Aluminum Blister Tablet Packaging Machine Multi Function Customizable
Double Aluminum Blister Tablet Packaging Machine Multi Function Customizable Product introduction of Blister Packaging Machine Small Tablet Blister Packing Machine is a newly packaging machine designed for machine in our company; its function has reached domestic leading level. It is suitable for capsule, tablet, big honey pill, candy, liquid, paste, one injector as well as irregular shape Al-plastic, paper-plastic composite packaging in pharmacy, healthcare, food, cosmetics, medical equipment industry etc. This machine is adopted with micro-computer, frequency conver
| Place of Origin: | China |
|---|---|
| Brand Name: | SED Pharma |
| Certification: | CE |
| Model Number: | SED-260H |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 35 Days after receiving the advance payment |
| Payment Terms: | T/T,L/C, ,Cash |
| Supply Ability: | 30 Sets per month |
Configuration and product details
Technical overview- Name
- Double Aluminum Blister Tablet Packaging Machine Multi Function Customizable
- Blanking (times /min)
- 10-50
- Output Capacity (sheet/hour)
- 2000-4000
- Scope of Feeding travel (mm)
- 30-90
- Forming Area & Dep (mm)
- 100×85×20
- Power Supply
- 220V 50HZ 3.5KW
- Max. Foil Width (mm)
- 110
- Overall Dimension (mm)
- 1800×460×1070
- material
- stainless steel
- key word
- Blister Packaging Machine
Double Aluminum Blister Tablet Packaging Machine Multi Function Customizable
Product introduction of Blister Packaging Machine
Small Tablet Blister Packing Machine is a newly packaging machine designed for machine in our company; its function has reached domestic leading level.
It is suitable for capsule, tablet, big honey pill, candy, liquid, paste, one injector as well as irregular shape Al-plastic, paper-plastic composite packaging in pharmacy, healthcare, food, cosmetics, medical equipment industry etc. This machine is adopted with micro-computer, frequency converter, touch panel operation, with high automation.
Main Parameter of Blister Packaging Machine
| Blanking (times /min) | 10-50 |
| Output Capacity (sheet/hour) | 2000-4000 |
| Scope of Feeding travel (mm) | 30-90 |
| Forming Area & Dep (mm) | 100×85×20 |
| Power Supply | 220V 50HZ 3.5KW |
| Max. Foil Width (mm) | 110 |
| Overall Dimension (mm) | 1800×460×1070 |
| Weight(KG) | 350 |
Main features of Blister Packaging Machine
1. Blister forming, hot-sealing, lot number printing, avulsion line impressing and cutting etc all adopt mandrel orientation, each can move freely in the mandrel when shaking the hand wheel.
2. Forming positive pressure air distribution with mechanical punch, ensuring blister forming well, and could collocate exclusive Automatic Feeder.
3. Main transmission part adopts parallel axis and bevel wheel speed reducer, forming dies and hot-sealing dies and impressing dies adopt bolt orientation, with exact orientation, easy to change molds and material saving.
Product Show of Blister Packaging Machine
Application of Blister Packaging Machine
