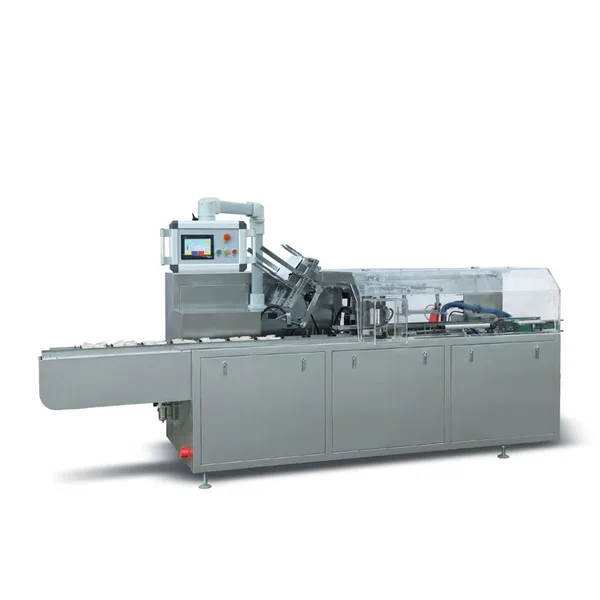

Automatic Cartoning Machine
Cartoner Packaging Machine For Medicine Cosmetics
Product Description of Cartoner Packaging Machine This cartoning machine is a model that our company has innovated and designed on the basis of introducing foreign advanced technology, and strictly manufactures according to the "GMP" requirements of the pharmaceutical industry. High-efficiency, high-performance production capacity, leaflet folding and conveying, carton erecting, and rear pushing mechanism technology meet European and American standards; compact design and rear continuous pushing structure make operation and maintenance easier The quartering double pl
| Place of Origin: | China |
|---|---|
| Brand Name: | SED-Pharma |
| Certification: | CE |
| Model Number: | GS650 |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden Case |
| Delivery Time: | 35 Days after receiving the deposit |
| Payment Terms: | T/T,L/C, ,Cash |
| Supply Ability: | 30 Sets per month |
Configuration and product details
Technical overview- Name
- Cartoner Packaging Machine For Medicine Cosmetics
- Encasing speed
- 50-70box/min
- Machine dimension(L× W× H)
- 4200*1450*1900mm
- Machine weight
- 1500KGS
- Power supply
- 380V 50Hz
- Working pressure
- >=0.6mpa
- material
- stainless steel
- key word
- Automatic Cartoning Machine
Product Description of Cartoner Packaging Machine
This cartoning machine is a model that our company has innovated and designed on the basis of introducing foreign advanced technology, and strictly manufactures according to the "GMP" requirements of the pharmaceutical industry.
High-efficiency, high-performance production capacity, leaflet folding and conveying, carton erecting, and rear pushing mechanism technology meet European and American standards; compact design and rear continuous pushing structure make operation and maintenance easier
The quartering double planetary gear rotates outwardly to open the box and has two preforming devices to ensure complete expansion of the carton.
This machine is a fully automatic continuous high-speed cartoning machine, which integrates mechanic, photoelectric and pneumatic. It is suitable for automatic production of aluminum-plastic blister board, bottle, hose, soft double aluminum and bag-like items. It can be connected to a packaging production line.

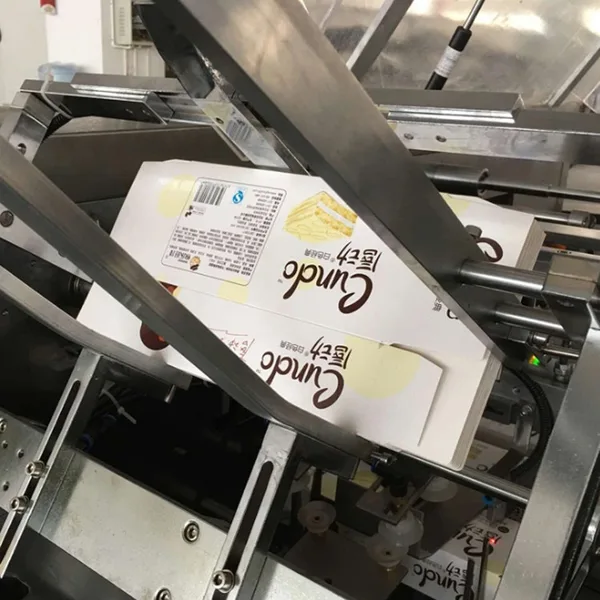

Open box mechanism: This mechanism adopts quartering double planetary gear rotating outwardly to open the boxes. The advantage of this way comparing to the inward movement with similar models from other companies is that it will not collide with each other when the paper tray size is wide. This mechanism also has two carton preforming devices to ensure that the carton is fully erected.
Product Parameters of Cartoner Packaging Machine
| Encasing Speed | 50-70box/min | |
| Box | Quality requirement | 250-450g/m2 (according to its dimension to confirm) |
| Dimension range (L×W×H) |
(70-250)mm×(50-120)mm×(20-90)mm can customize according to your requirement |
|
| Compressed air | Working pressure | >=0.6mpa |
| Air consumption | 20m3/h | |
| Power supply | 380V 50Hz | |
| Motor power | 1.5KW | |
| Machine dimension (L×w×H) |
4200*1450*1900mm | |
| Machine weight | 1500KGS | |
main Feature of Cartoner Packaging Machine
- Touch Screen HMI controls
- PLC programme
- JAPAN OMRON electric parts (inverter, PLC,touch screen...)
- GERMANY SICK photocell
- Vacuum assisted pre-break
- different sizes are available in one machine within machine size range
- without product, carton will be not sucked down
- Auto display trouble, alarm and count finished product
- Overload protection

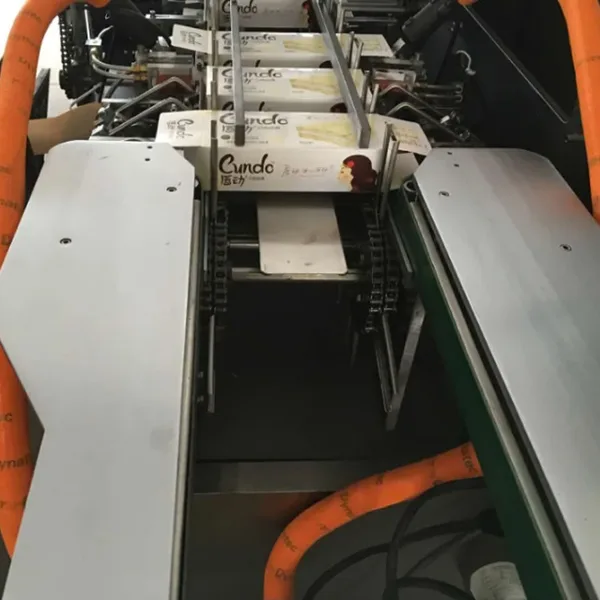

Show of Cartoner Packaging Machine
Application of Cartoner Packaging Machine
