Capsule Counting Machine

Automatic Ultrawide Channel Capsule Counting Machine For Laundry Beads

Name: Automatic Ultrawide Channel Capsule Counting Machine For Laundry Beads
Brand: SED Pharma

Automatic Ultrawide Channel Capsule Counting Machine For Laundry Beads Product Description of Counting Machine SED-10PSL Automatic Electronic counting machine is special for counting tablets, soft gelatin, hard capsule and chewing gums, etc. This machine adopts 10 sets imported counting sensor for counting with 10 extra widen guiding way and one head. The advantage of the machine is no need change mold when you change the counting object, only adjusting the counting table height by Easy Adjust wheel. The machine comes with Touch screen for easy operation. Detail

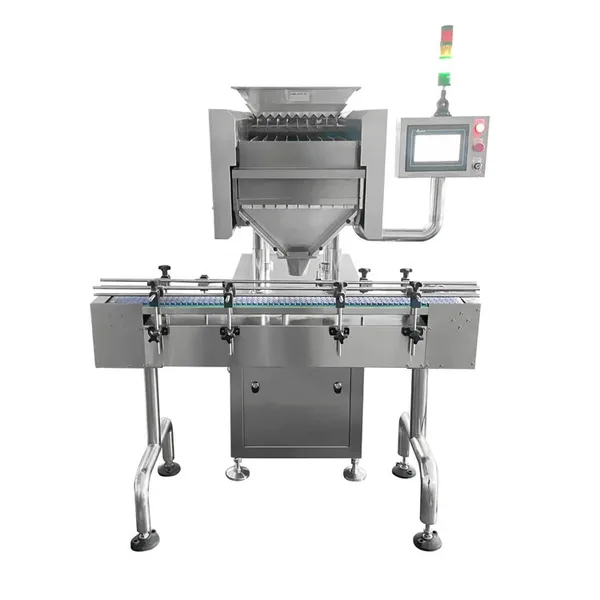

Automatic Ultrawide Channel Capsule Counting Machine For Laundry Beads, view 1

Product Details:

Place of Origin:	China
Brand Name:	SED Pharma
Certification:	CE
Model Number:	SED-10PSL

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	Wooden Case
Delivery Time:	35 days after receiving the deposit
Payment Terms:	T/T,L/C, ,Cash
Supply Ability:	30 Sets Per Month

Request configuration

Configuration and product details

Technical overview

Name: Automatic Ultrawide Channel Capsule Counting Machine For Laundry Beads
Model: SED-10PSL
Applicable target: Capsule/tablet
Hopper Volume: 50L
Capacity: 20-50bottles(30-100 pcs/bottle)/min
Power & Voltage: 220V/50HZ 0.6KW
Dimension(L*W*H): 1360*1530*1700mm
Weight: 320 kg
material: stainless steel
key word: Capsule Counting Machine Tablet bottling machine

Automatic Ultrawide Channel Capsule Counting Machine For Laundry Beads

Product Description of Counting Machine

SED-10PSL Automatic Electronic counting machine is special for counting tablets, soft gelatin, hard capsule and chewing gums, etc. This machine adopts 10 sets imported counting sensor for counting with 10 extra widen guiding

way and one head. The advantage of the machine is no need change mold when you change the counting object, only adjusting the counting table height by Easy Adjust wheel. The machine comes with Touch screen for easy operation.

Detailed Parameters of Counting Machine

Model	SED-10PSL
Productivity	20-50bottles/min
Applicable target	Filled capsule(000-5#) Soft Gelatin capsule chewing gum tablet other solid object under machine range
Hopper Volume	20-50bottles(30-100 pcs/bottle)/min
Filling Quantity	1-9999pcs/bottle (adjustable)
Bottle Size	Diameter: 30-100mm Height:40-180mm
Dimension(LWH)	136015301700mm
Weight	320 kg
Counting Size	Pills with diameter of 37 or less are compatible with 000-5 capsules soft capsules with diameters of 3.5-37 plain tablets special-shaped tablets sugar-coated tablets
Compressed air	0.6Mpa 3.5L/min
Power	220V/50HZ 0.6KW

Photo show of Counting Machine

Automatic Ultrawide Channel Capsule Counting Machine For Laundry Beads product detail

Feature of Counting Machine

1)Compatibility, high accuracy, wide application and use of the Company's original anti-dust photoelectric detection of high technology, can count Tablets (including special-shaped tablets), capsules, soft capsules (transparent, opaque), pill count to bottling;

2)Vibratory cutting drugs do not damage;

3)A high degree of intelligence, with no bottle is not the number of self-fault detection alarm and many other control functions;

4)Compact structure, stability and durability, and no regular replacement parts, small footprint, the use of low-cost;

5)To facilitate the replacement of species, can automatically take-off and landing, demolition cleared without any tools, convenient and quick;

6)Chinese dialogue control panel, can store 10 ~ 20 group of species parameters, adjusted to facilitate the use of special;

7)Fully automatic operation, with the Upper and Lower Union Road, intelligent control of processes, coordination, and no special operation, labor-saving devices.

8)Low prices, especially for small-volume, variety and more manufacturers use. Control chip imported to the United States, photoelectric sensors for Taiwan's imports.

Application of Counting Machine

This machine can be widely used for fast counting and bottling of various shapes and sizes of tablets, capsules, pills and other drugs or food, health care products and other materials.
