Capsule Counting Machine

Automatic Tablet Counting Machine With Touch Screen

Name: Automatic Tablet Counting Machine With Touch Screen
Brand: SED Pharma

Automatic Tablet Counting Machine With Touch Screen Product Introduction of Counting Machine This Counting Machine can be applied for counting capsules, soft gels, tablets, chewing gum, round pills, and other solid materials without the need for tooling when changing objects. Its part in contact with material is made of 304 stainless steel, which is full GMP-compliant design. Product parameters of Counting Machine Model Name SED-6BS2 Application Hard capsule(000-5#) Soft gelatin capsule Pills (Diameter≤20mm) Chewing gum, tablet, other solid object (Diameter: 5.

Product Details:

Place of Origin:	China
Brand Name:	SED Pharma
Certification:	CE
Model Number:	SED-6BS2

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	Wooden Case
Delivery Time:	35 days after receiving the deposit
Payment Terms:	T/T,L/C, ,Cash
Supply Ability:	30 Sets Per Month

Request configuration

Configuration and product details

Technical overview

Name: Automatic Tablet Counting Machine With Touch Screen
Model: SED-6BS2
Production Capacity:: 10-30 bottles/min
Voltage:: 220V 50HZ Single Phase
Power(W):: 0.6kw
Weight:: 100kg
Accuracy rate:: >99.5%
key word: Capsule Counting Machine Tablet bottling machine

Automatic Tablet Counting Machine With Touch Screen

Product Introduction of Counting Machine

This Counting Machine can be applied for counting capsules, soft gels, tablets, chewing gum, round pills, and other solid materials without the need for tooling when changing objects. Its part in contact with material is made of 304 stainless steel, which is full GMP-compliant design.

Product parameters of Counting Machine

Model Name	SED-6BS2
Application	Hard capsule(000-5#) Soft gelatin capsule Pills (Diameter≤20mm) Chewing gum, tablet, other solid object (Diameter: 5.5-22mm)
Hopper Volume	11L
Capacity	10-30 bottles/min
Bottle Size	Diameter: 20-100mm Height: 40-180mm
Discharge Head No.	2
Voltage	220V 50HZ Single Phase
Power	0.6KW
Weight	100kg
*Overall Dimension (LWH)*	1090280840mm

Working Principle of Counting Machine

After the hopper is filled with the product to be counted, bottle or other container is placed at the bottling position manually. Then the product falls into the counting device in an orderly manner through the vibratory plates, and is counted by the photoelectric counting sensor and then loaded into the bottle or other container. Filled bottles are taken away manually, and new empty bottles are put on for filling.

This model SED-6BS2 features dual discharge heads. Two discharge heads start discharging alternately, that is, the machine counts the corresponding number of product into bottle through the left discharge head, then the right discharge head. Bottles need to be replaced manually.

Feature of Counting Machine

Strong compatibility: It can counts tablets (including special-shaped tablets), capsules, soft capsules, pills into bottles.
Vibration discharging: It vibrates and discharges the product evenly and smoothly, without causing damage.
Anti-dust system: It adopts our company's anti-dust photoelectric sensor technology, and can work stably even under high dust conditions.
Dual discharge heads: Two discharge heads discharge alternately, which greatly increased productivity.

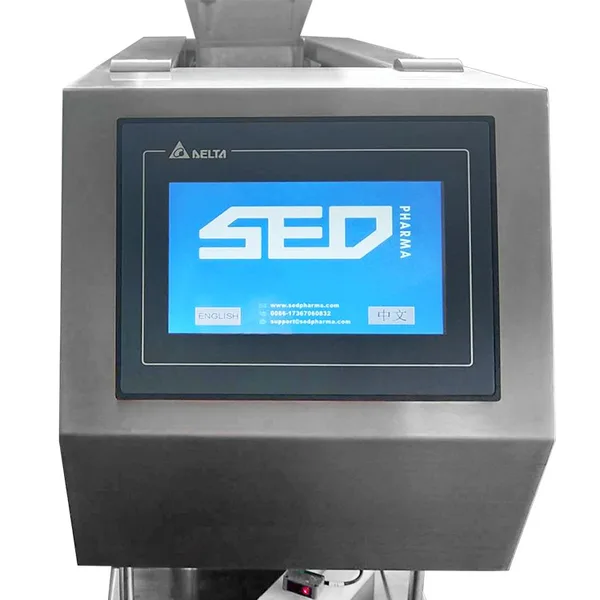

The machine comes with touch screen for easy operation.
There is no need for tooling when user changes the counting object.

Product Show of Counting Machine

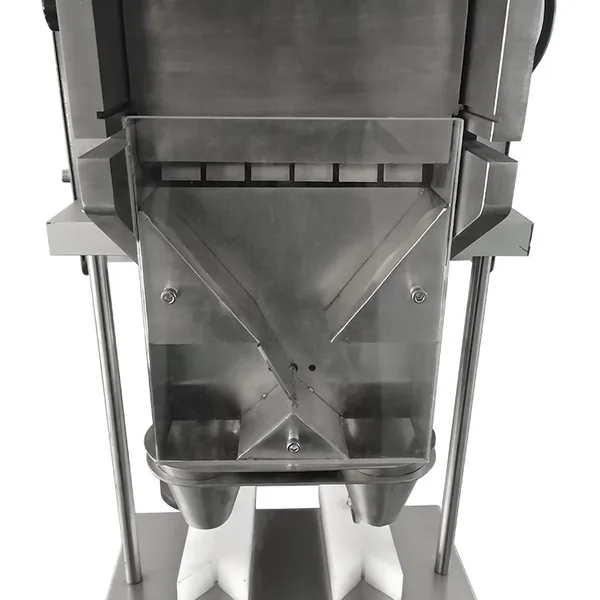

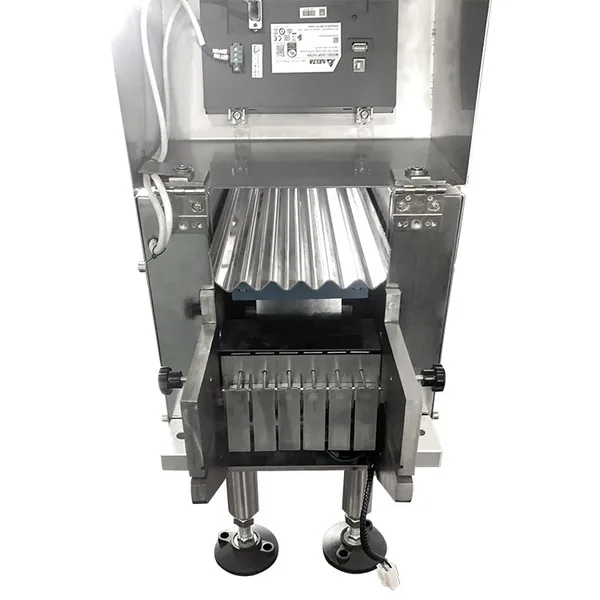

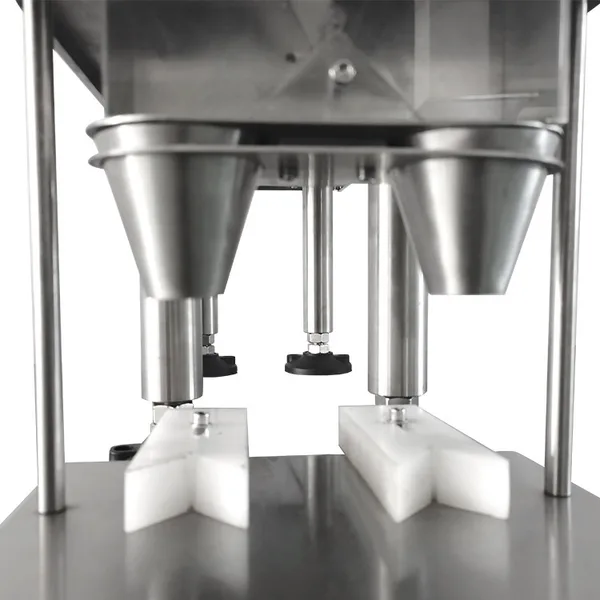

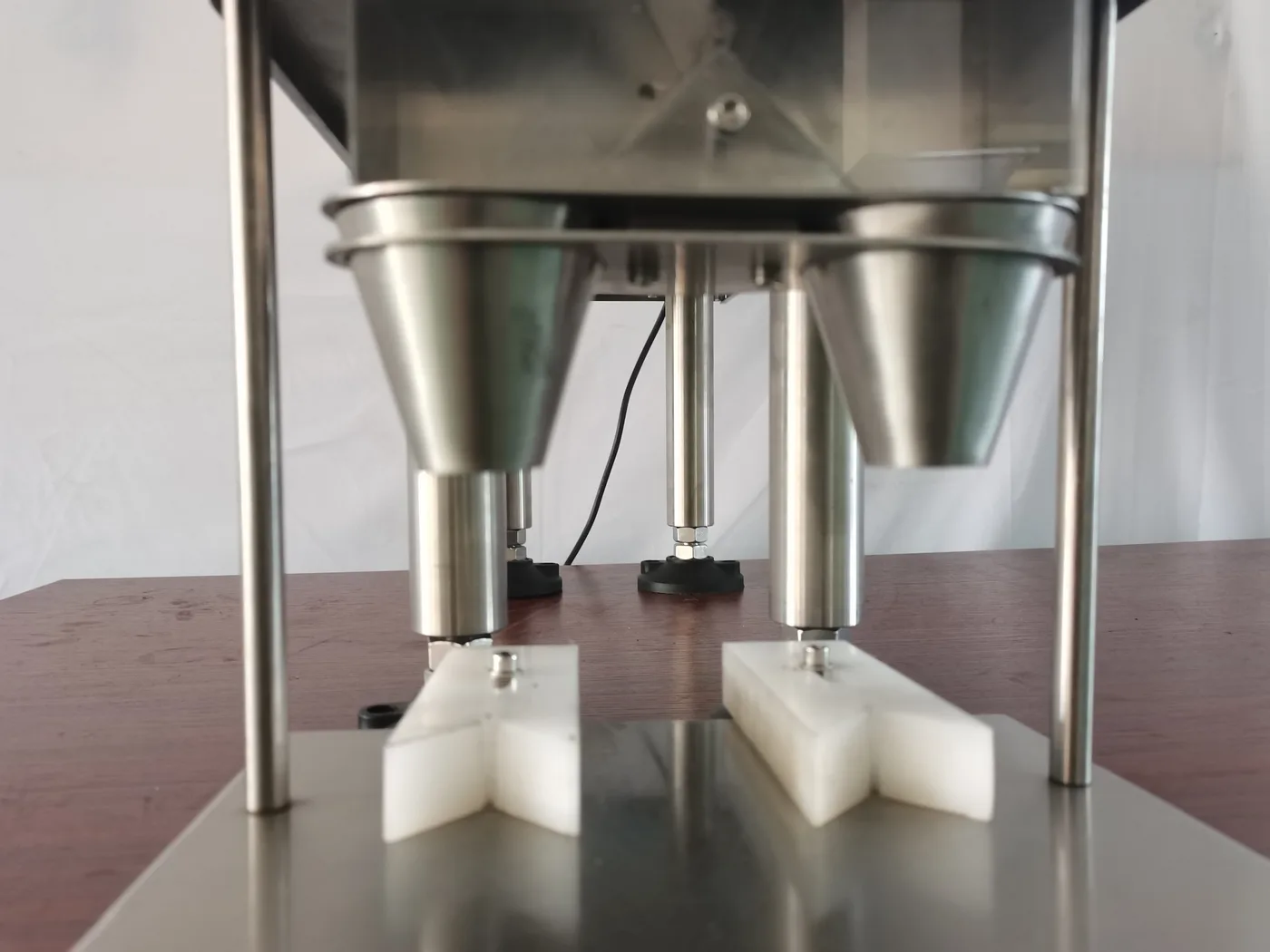

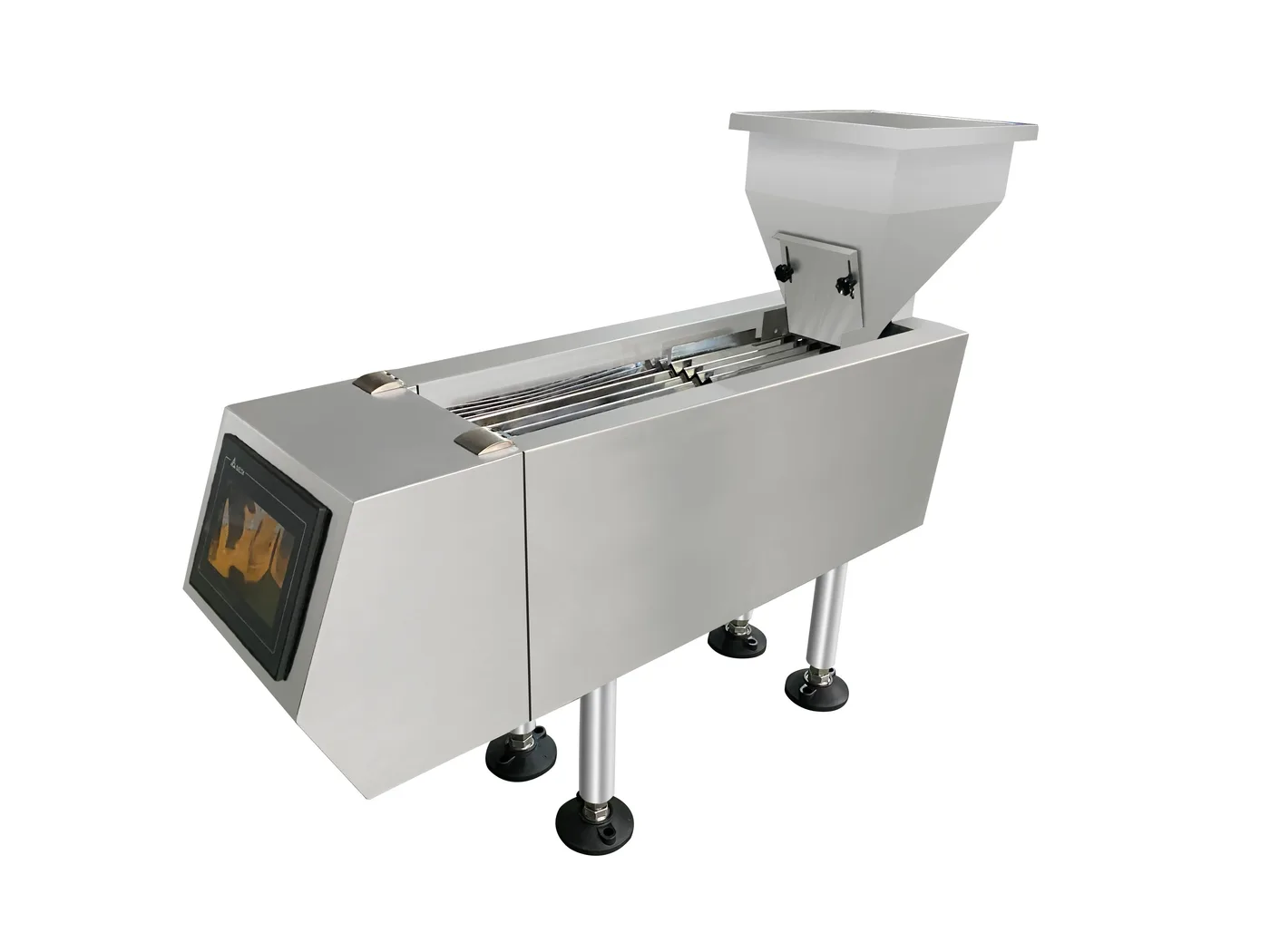

Automatic Tablet Counting Machine With Touch Screen product detail
