Automatic Cartoning Machine

Automatic Horizontal Cartoning Machine High Performance Horizontal Cartoner

Name: Automatic Horizontal Cartoning Machine High Performance Horizontal Cartoner
Brand: SED Pharma

Automatic Horizontal Cartoning Machine High Performance Horizontal Cartoner Product Description of Auto Cartoner Machine This machine is suitable for compact automatic sheet folding, unpacking, batch number imprinting and sealing process for packaging AL/PL blister, bottles, pillow bags and other related contents. Product Parameters of Auto Cartoner Machine Item Parameters Encasing speed 30-100 boxes /min Box Quality requirement 250-350g/m2[Base on carton size] Dimension range(L×W×H) (70-180)mm×(35-85)mm×(14-50)mm Leafle Quality requirement 60-70g/m2 Unfolded leaflet

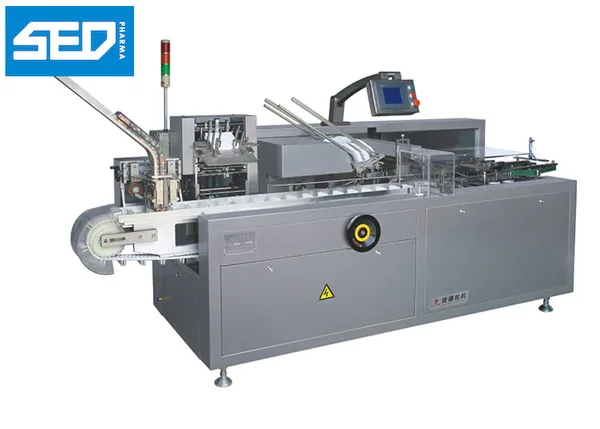

Automatic Horizontal Cartoning Machine High Performance Horizontal Cartoner, view 1

Automatic Horizontal Cartoning Machine High Performance Horizontal Cartoner, view 2

Product Details:

Place of Origin:	China
Brand Name:	SED Pharma
Certification:	CE
Model Number:	SED-100WZH

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	Wooden Case
Delivery Time:	40 Days after receiving the deposit
Payment Terms:	T/T,L/C, ,Cash
Supply Ability:	30 Sets Per Month

Request configuration

Configuration and product details

Technical overview

Name: Automatic Horizontal Cartoning Machine High Performance Horizontal Cartoner
Carton Quality Requirement: 300-350g/m2
Suitable Carton Size: (65-120)mm×(30-60)mm×(30-60)mm
Unfolded leaflet specification: (80-250)mm×(90-170)mm
Folded leaflet specification: (90-170)mm×(25-40)mm
Working pressure: ≥0.6Mpa
Air consumption: 120-160L/min
Weight: 1200KGS
material: stainless steel
key word: Automatic Cartoning Machine

Automatic Horizontal Cartoning Machine High Performance Horizontal Cartoner

Product Description of Auto Cartoner Machine

This machine is suitable for compact automatic sheet folding, unpacking, batch number imprinting and sealing process for packaging AL/PL blister, bottles, pillow bags and other related contents.

Product Parameters of Auto Cartoner Machine

Item		Parameters
Encasing speed		30-100 boxes /min
Box	Quality requirement	250-350g/m2[Base on carton size]
	Dimension range(L×W×H)	(70-180)mm×(35-85)mm×(14-50)mm
Leafle	Quality requirement	60-70g/m2
	Unfolded leaflet specification	(80-250)mm×(90-170)mm
	Fold range	[1-4]Fold
Compressed air	Working pressure	≥0.6mpa
	Air consumption	120-160L/min
Power supply		220V 50HZ
Main motor power		0.75kw
Machine dimension(L×W×H)		3100mm×1100mm×1550mm
Machine weight		1400kg

Feature of Auto Cartoner Machine

1. Machine running without pressing if no products or incorrect position of products. And stopping automatically if incorrect position of product into carton after return or no cartons or out of leaflets continuous.

2. No products not suction leaflet, no leaflet not suction carton .

3. Automatic detection and rejection device for lacking blister goods and leaflets

4. Protecting automatically for overloading.

5. stable performance , operation is easy.

Show of Automatic Cartoner

Application of Auto Cartoner Machine

This machine is suitable for automatic feeding product of multi-variety multi-specifications into carton (either for blister or bottle).Adjust automatic feeding structure conveniently,setup quantity of blisters on touch screen randomly.

On line product feeding and detecting,leaflet fold(1-4folds) and feeding,leaflet detecting,canton opening and forming,products and leaflet pushing into carton,printing batch number,sealing carton with tuck-in or hot melt glue device.

Automatically reject lacking of leaflet or prodcut and finished product out.

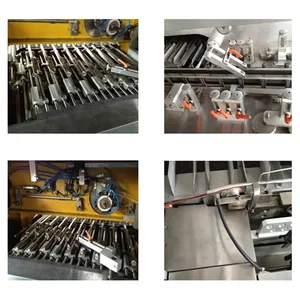

Automatic Horizontal Cartoning Machine High Performance Horizontal Cartoner product detail
