Capsule Counting Machine

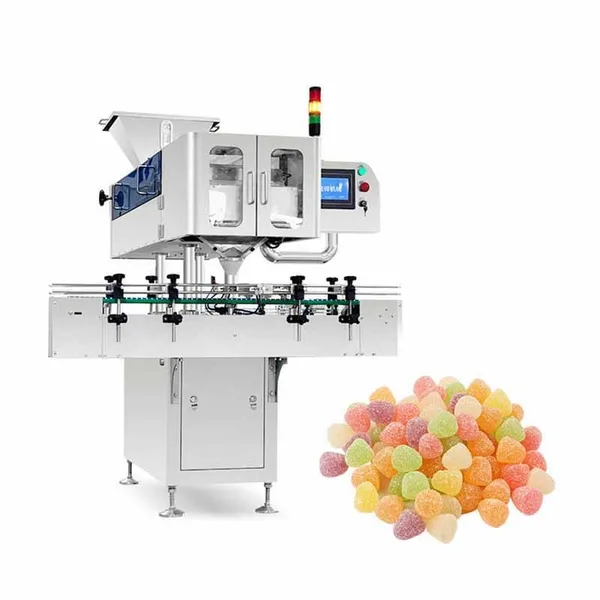

Automatic Capsule Counting Machine 16L Hopper 10-45 Bottles/Min
Automatic Capsule Tablet Counting Machine for Candy Pill Packing Machine Introduction This updated counting machine features quick material interchangeability for multiple applications. Designed with high-speed operation and efficient hygiene functions, it significantly reduces labor requirements. The machine offers fast and easy installation to maximize productivity, particularly suited for counting and filling soft candies and sticky-textured materials. Working Principle The bottle blocking device on the conveyor belt positions containers for filling. Materials enter the
Configuration and product details
Technical overview- Hopper Volume
- 16L
- Capacity
- 10-45 bottles/min
- 10-45 bottles/min
- 2-9999pcs/bottle (adjustable)
- Bottle Size
- Diameter ≤100mm,Height ≤180mm
- Conveyor Belt Width
- 114mm
- Compressed Air
- 0.6Mpa 5L/min
- Voltage
- 220V/50HZ/60HZ
- Overall Dimension (L*W*H)
- 1920*1360*1730mm
Automatic Capsule Tablet Counting Machine for Candy Pill Packing
Machine Introduction
This updated counting machine features quick material interchangeability for multiple applications. Designed with high-speed operation and efficient hygiene functions, it significantly reduces labor requirements. The machine offers fast and easy installation to maximize productivity, particularly suited for counting and filling soft candies and sticky-textured materials.
Working Principle
The bottle blocking device on the conveyor belt positions containers for filling. Materials enter the counting device through vibrating corrugated plates, where photoelectric sensors perform accurate counting before loading into bottles at the filling position.
Technical Parameters
| Model Name | SED-8SP |
|---|---|
| Application | Hard capsule (000-5#), Soft Gelatin capsule, Pills, Chewing gum, tablet, and solid objects (Diameter: 5.5-22mm) |
| Hopper Volume | 16L |
| Capacity | 10-45 bottles/min |
| Filling Quantity | 2-9999pcs/bottle (adjustable) |
| Bottle Size | Diameter ≤100mm, Height ≤180mm |
| Conveyor Belt Width | 114mm |
| Compressed Air | 0.6Mpa, 5L/min |
| Voltage | 220V/50HZ/60HZ |
| Overall Dimension (L*W*H) | 1920*1360*1730mm |
Key Features
- 3-stage adjustable vibration: Precisely controls capsule output speed
- Strong compatibility: Counts tablets (including special-shaped), capsules, soft capsules (transparent/opaque), and pills
- Quick material change: No mold changes required when switching counting objects
- 8-channel vibration: Ensures even material discharge without damage
- Hygienic design: Easy cleaning with removable vibration plates
- Anti-dust system: Patented photoelectric sensor technology maintains stable operation in dusty conditions
- Precision counting: Photoelectric sensors ensure accurate bulk counting
- Smart detection: Includes no-bottle-no-counting, self-diagnosis, and jam detection functions
- User-friendly: Touch screen interface for simplified operation
