Blister Packing Machine
Automatic Blister Packing Machine High Speed Driven With Siemens Touch Screen
Automatic Blister Packing Machine High Speed Driven With Siemens Touch Screen Product Description of Blister Packing Machine The blister packing machine is a machine adopts in the lead position of quality, good capability, all-round function, good reliability and high productivity. It adopts auto-controlling technology and uses new material, new craft, and new technology to make the structure more reasonable. Main Technical Data of Blister Packing Machine Model SED-220GP PVC Non-toxic PVC Thickness 0.25 X Width≤220(mm) PTP Aluminum Foil PVC & PTP Thickness0.02 X Width
| Place of Origin: | China |
|---|---|
| Brand Name: | SED Pharma |
| Certification: | CE |
| Model Number: | SED-220GP |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 35 Days after receiving the advance payment |
| Payment Terms: | T/T,L/C, ,Cash |
| Supply Ability: | 30 Sets per month |
Configuration and product details
Technical overview- Name
- Automatic Blister Packing Machine High Speed Driven With Siemens Touch Screen
- Condition
- New
- Automatic Grade
- Automatic
- Power
- 14.5kw
- Dimension
- 3130*975*1850mm
- Scope
- 20-250 mm
- Air Consumption
- ≥0.6m3/min
- Speed
- 60-180 cuts/min
- material
- stainless steel
- key word
- Automatic Blister Packing Machine
Automatic Blister Packing Machine High Speed Driven With Siemens Touch Screen
Product Description of Blister Packing Machine
The blister packing machine is a machine adopts in the lead position of quality, good capability, all-round function, good reliability and high productivity. It adopts auto-controlling technology and uses new material, new craft, and new technology to make the structure more reasonable.
Main Technical Data of Blister Packing Machine
| Model | SED-220GP |
| PVC Non-toxic PVC | Thickness 0.25 X Width≤220(mm) |
| PTP Aluminum Foil PVC & PTP |
Thickness0.02 X Width ≤220(mm) OD of Reel< φ400mm Dia of Reel Core:φ70～80(mm) |
| Cutting speed(3 Gears) | 40～120times/min |
| Packing Efficiency | Capsules:11-17 ten thousand/h Tablets:15-30 ten thousand/h |
| Overall Dimensions | (LXWXH)3140mmX940mmX1600 |
| Weight | 4000Kg |
| Installed Power | 12.5Kw 380V 50Hz/220V 60Hz |
Feature of Blister Packing Machine
1. Plate-type universal feeder although easy and not high effective, it is very extensively applied and suitable for large size and small size capsule, various tablets and pills.
2. High speed vibrating feeding. The feeder can suitable for any speed of the machine. Our Vibration Feeder adopts Stainless Steel tube for feeding, Suitable for GMP Standard.
3. High-precise servo stepping. The machine adopts Servo Motor for Running. So the speed adjusting and running will be more accuracy.
4. The machine is equipped Double Sealing makes the Sealing Perfect, no air run trough the seal.

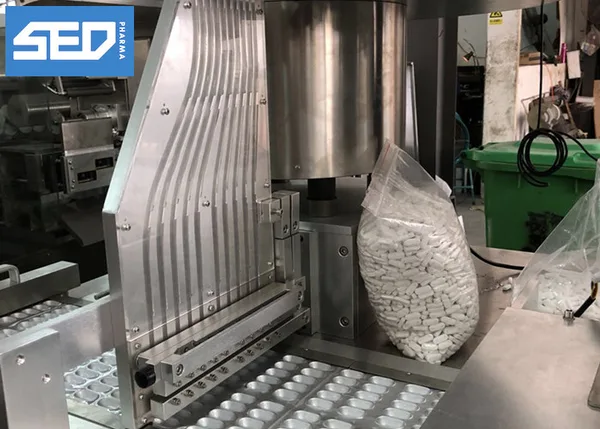

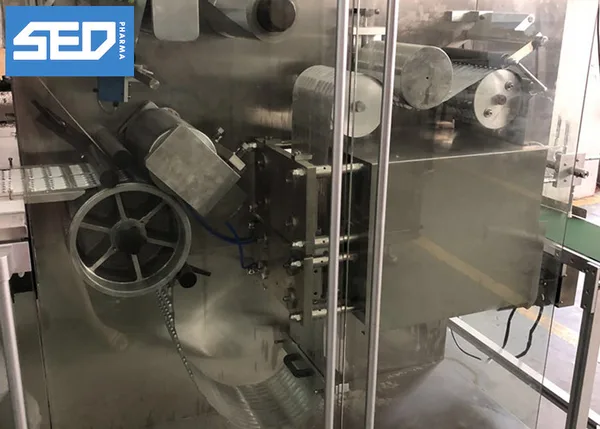

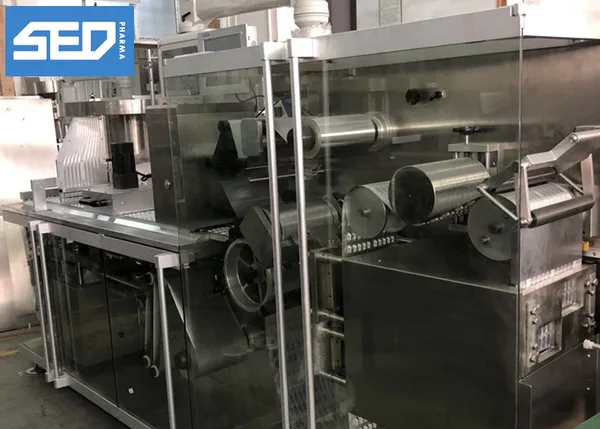

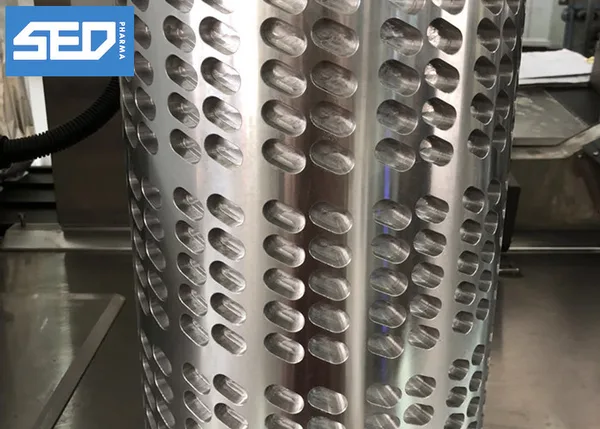

Product Show of Blister Packing Machine
Application of Blister Packing Machine
