Blister Packing Machine

Automatic Blister Packaging Equipment SUS 304 Made Custom Service Acceptable

Name: Automatic Blister Packaging Equipment SUS 304 Made Custom Service Acceptable
Brand: SED Pharma

Automatic Blister Packaging Equipment SUS 304 Made Custom Service Acceptable Product introduction of Blister Packaging Machine The Model SED-250P with integrated mechanical, photo- electric and pneumatic control, are featured by adjustable stroke, split type machine body, pattern photoelectric register and the capsule arrangement by color separation. The machine can be widely used in pharmaceutical, food stuffs, chemical and other industries for composite sealing packing with full blisters and flat pressed sheets. Besides, we can offer customers excellent service. m

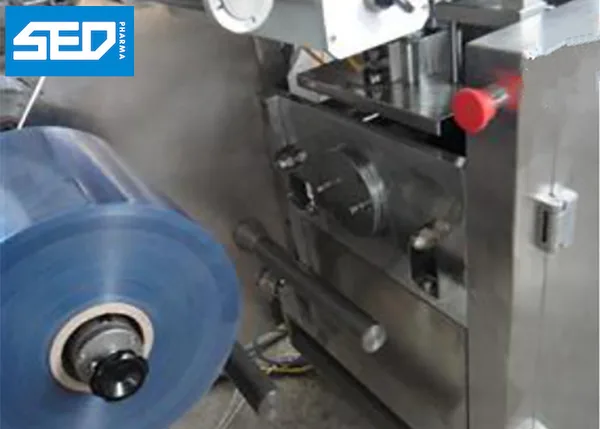

Automatic Blister Packaging Equipment SUS 304 Made Custom Service Acceptable, view 1

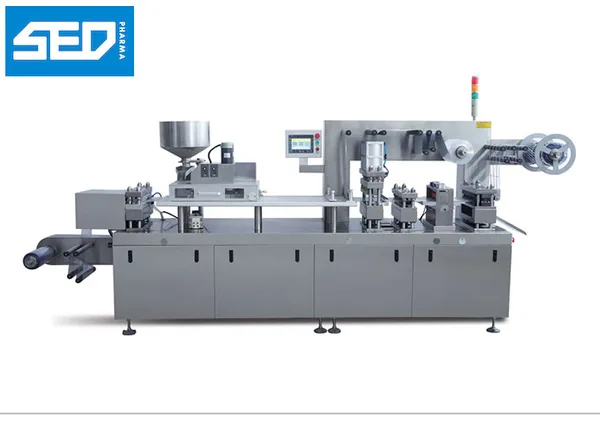

Automatic Blister Packaging Equipment SUS 304 Made Custom Service Acceptable, view 2

Automatic Blister Packaging Equipment SUS 304 Made Custom Service Acceptable, view 3

Automatic Blister Packaging Equipment SUS 304 Made Custom Service Acceptable, view 4

Product Details:

Place of Origin:	China
Brand Name:	SED Pharma
Certification:	CE
Model Number:	SED-250P

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	Wooden Case
Delivery Time:	35 Days after receiving the advance payment
Payment Terms:	T/T,L/C, ,Cash
Supply Ability:	30 Sets per month

Request configuration

Configuration and product details

Technical overview

Name: Automatic Blister Packaging Equipment SUS 304 Made Custom Service Acceptable
Blister size: Standard:80 mm×57mm(According to customer’s requirement)
Max forming area and depth: 270mm×150mm×28mm
Scope adjustable range: Standard 10-120mm Max 160mm
Max forming area: 270×120×25mm
Forming power: 1.5kw
Main motor power: 1.5kw
Power supply: 380V 50HZ Three phase(Customized)
material: stainless steel
key word: Blister Packaging Machine

Automatic Blister Packaging Equipment SUS 304 Made Custom Service Acceptable

Product introduction of Blister Packaging Machine

The Model SED-250P with integrated mechanical, photo- electric and pneumatic control, are featured by adjustable stroke, split type machine body, pattern photoelectric register and the capsule arrangement by color separation.

The machine can be widely used in pharmaceutical, food stuffs, chemical and other industries for composite sealing packing with full blisters and flat pressed sheets. Besides, we can offer customers excellent service.

main features of Blister Packaging Machine

1. With frequency converted speed control, the max. Speed can be up to 20-40 times/min.

2. Stroke adjustable within a range of 270mm. Easy operation and accurate and synchronization.

3. After 1~6 times of punching process, the blistered sheet size can be selected.

4. Plate type dies, positive pressure forming, little material-wasted punching and electronic counter adopted with batch no. Stamping, greasing and cutting functions and the warnings for broken or finished sheets and automatic shutdown provided.

5. With a duplex speed variation feeder adopted, the filling rate can be more than 98%.

Main Technical Data of Blister Packaging Machine

No.	Item			Data
1	Cutting Speed			10-40 cuttings/min
2	Capacity			Standard:9600 Blisters/hour (According to 4 cuttings per time,cutting speed 40 times/minute)
3	Scope adjustable range			Standard 10-120mm Max 160mm
4	Blister size			Standard:80 mm×57mm Refer size:80×57,95×65,103×43,120×43 (According to customer’s requirement) Max size : 270×110mm
5	Max forming area and depth			270mm×150mm×28mm
6	Packing material			PVC:Width 250mm,Thickness 0.15-0.5mm Coating PTP(Aluminum Foil):Width 250mm,Thickness 0.02-0.35mm Roll core diameter:70-76mm
7	Heating power	Forming		1.5KW
		Sealing		1.5KW
8	Main motor power			1.5KW
9	Power supply			380V 50HZ three phase five wires
10	Air consumption			≥0.2m³/min(Prepared by client) Pressure:0.4～0.6Mpa
11	Mould cooling			Tap water or circulation water Water consumption : 60L/h
12	Dimension(L×W×H)		Whole	3345mm×635mm×1560mm
			Separate	1670mm×635mm×1560mm 1675mm×635mm×1560mm
13	Weight			1500Kg
