Automatic ALU-PVC Blister Packaging Machine

Name: Automatic ALU-PVC Blister Packaging Machine
Brand: SED Pharma

M achine Introduction SED-120P-F Automatic Blister Packaging Machine is suitable for blister packaging of all kinds of solid material, such as capsule, tablets, etc., which can protect material from dust and moisture, and extend the shelf life of product. This machine completes blister forming, material filling, heat sealing, batch number embossing, die cutting and finished product output in an automatic process. It is widely used in industries of food, pharmaceutical, medical instruments, hardware, electronics, etc. for automatic packaging. Features It adopts the newest ty

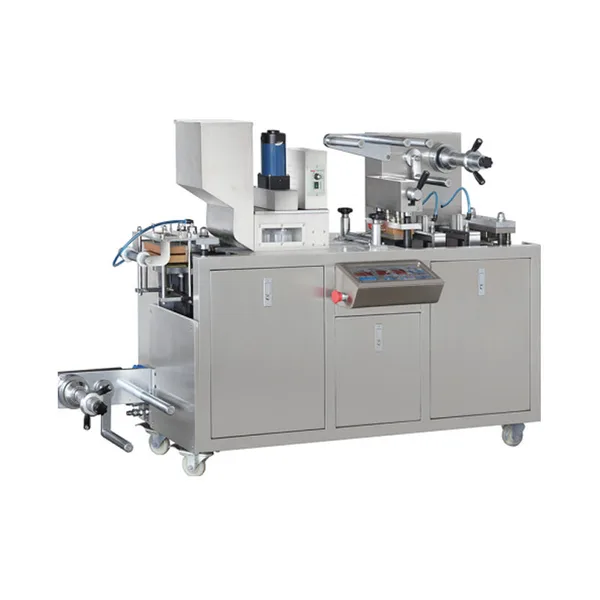

Automatic ALU-PVC Blister Packaging Machine, view 1

Product Details:

Place of Origin:	China
Brand Name:	SED Pharma
Certification:	CE
Model Number:	SED-120P-F

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	Wooden Case
Delivery Time:	50-60 Days after receiving the deposit
Payment Terms:	T/T,L/C, ,Cash
Supply Ability:	30 Sets per month

Request configuration

Configuration and product details

Technical overview

Name: Automatic ALU-PVC Blister Packaging Machine
Punch Frequency: 10-33 times/min
Capacity: 2400 plates/h
Max. Forming Area: 125x75mm
Stroke Range: 30-80mm (can be designed as per user’s required)
Standard Plate Size: 80x57mm (can be designed as per user’s required)
Air Pressure: 0.4-0.6Mpa
Compressed Air Required: ≥0.3m3/min (Air compressor)

Machine Introduction

SED-120P-F Automatic Blister Packaging Machine is suitable for blister packaging of all kinds of solid material, such as capsule, tablets, etc., which can protect material from dust and moisture, and extend the shelf life of product.

This machine completes blister forming, material filling, heat sealing, batch number embossing, die cutting and finished product output in an automatic process. It is widely used in industries of food, pharmaceutical, medical instruments, hardware, electronics, etc. for automatic packaging.

Features

It adopts the newest type high-power transmission mechanism to arrange the chain and drive the main driving shaft. The errors and noises of other gear wheel transmission mechanism can be avoided.
The electrical appliances of this machine adopts imported control system. As per customer’s requirements, it can be optionally equipped with feeding device for missed material, and detection & rejection device for waste product (lack of material).
It adopts photoelectric control system and PVC, PTP and hard aluminum material automatic feeding and waste material auto-cutting device to ensure the stability of multi-stations at overlong distance.
It can be optionally equipped with photocell correction device, imported stepper motor traction and image-character register to optimize packing grade.

Work Process

Forming (upper and lower heating)
Heat sealing (upper heating)
Batch number/production date embossing
Impression (optional)
Cutting
Finished product output

Technical Parameters

Model	SED-120P-F
Punch Frequency	10-33 times/min
Capacity	2400 plates/h
Max. Forming Area	125x75mm
Max. Forming Depth	≤15mm (standard)
Max. Forming Depth	25mm (customized)
Stroke Range	30-80mm (can be designed as per user’s required)
Standard Plate Size	80x57mm (can be designed as per user’s required)
Air Pressure	0.4-0.6Mpa
Compressed Air Required	≥0.3m3/min (Air compressor
Power Supply	220V 1P 50HZ 2.8KW
Main Motor Power	0.75KW
PVC Hard Sheet	(0.15-0.5)*125mm
PTP Aluminum Film	(0.02-0.035)*125mm
Dialysis Paper	(50-100g)*125mm
Mold Cooling	Tap water / Recycling water
Noise	<75dBA
Weight	Net weight: 415kg
Weight	Gross weight: 465kg
Overall Dimension (LxWxH)	1840x590x1100mm
