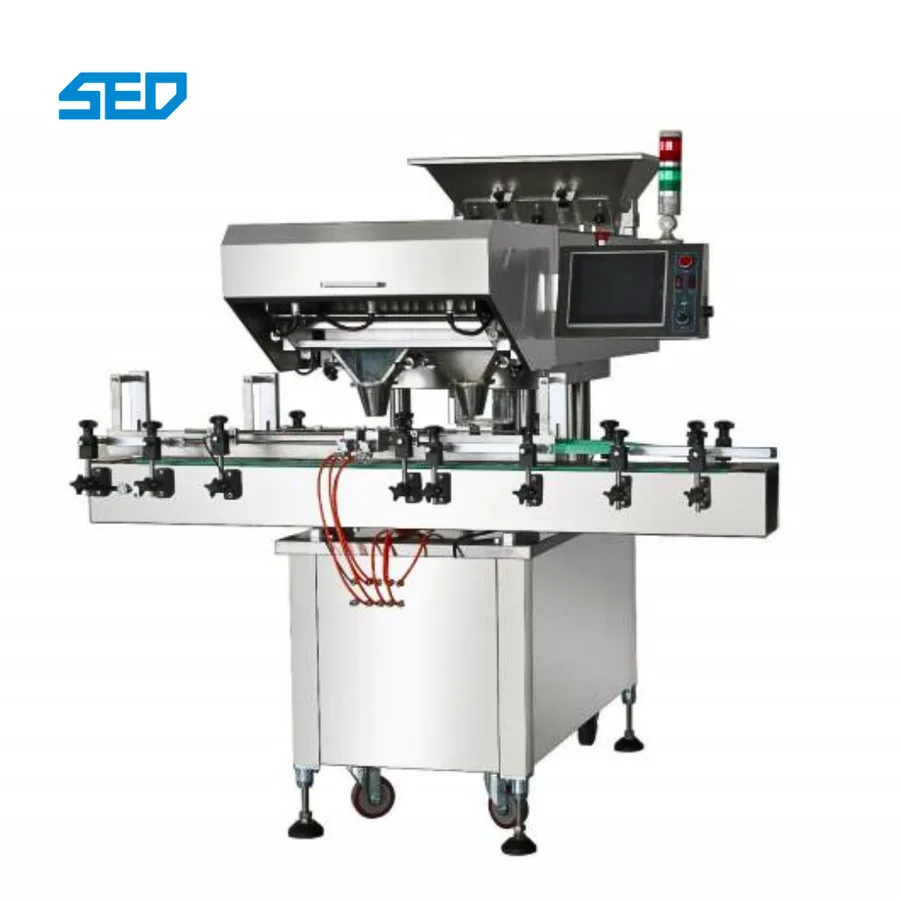

Automatic 32-Channel Electronic Counting Machine for Tablets, Capsules, Seeds & Nuts

Automatic 32-Channel Electronic Counting Machine for Tablets, Capsules, Seeds & Nuts
Product Description of Capsule Counting Machine
The SED-32S-A Electronic Counting Machine features advanced 32-channel infrared scanning technology and high-speed MCU algorithms for precise tablet and capsule filling. With a production capacity of up to 15,000 pcs/min, it is designed for the pharmaceutical, nutraceutical, and food industries. It supports various solid forms, including tablets, hard/soft capsules, and pills, ensuring high accuracy and GMP compliance.

Technical Parameters of Capsule Counting Machine

Model	SED-32S-A
Channels	32 Channels
Capacity	MAX 15,000 pieces/minute
Counting Range	15 - 9,999 pcs/bottle
Product Size Range	T: 3-10mm; Dia: 3-24mm; L: 3-26mm
Bottle Size Range	Height: 40-200mm; Diameter: 30-80mm
Air Pressure	0.5 - 0.7 Mpa
Air Consumption	Approx. 130 L/min
Power Supply	1P 220V 50HZ
Power Consumption	1.1 KW
Machine Weight	550 KG
Dimensions (LWH)	3600mm * 1700mm * 1750mm

Features of Capsule Counting Machine:

1.High Precision Detection: Utilizes independent optical sensors with a dynamic infrared scanning system to ensure 99.9% counting accuracy for even irregularly shaped products.

2.Multi-Stage Vibration Feeding: Equipped with multi-level vibration plates to ensure smooth, consistent, and damage-free material flow.

3.Wide Compatibility: Seamlessly handles tablets, sugar-coated pills, hard/soft capsules, seeds, and nuts without changing molds.

4.Intelligent Control System:

• Smart HMI: User-friendly touch screen for real-time monitoring and parameter settings.
• Recipe Memory: Save and recall production parameters for quick product changeovers.
• Safety Sensors: "No bottle - No fill" and "Blocked bottle" auto-stop features ensure operational safety.

5.GMP & Food Grade Compliance: Constructed with 304/316 Stainless Steel and non-toxic, chemically stable food-grade materials for easy cleaning and hygiene.

6.Modular Design: Tool-free adjustment and snap-fit components make maintenance and cleaning effortless.


Machine Detailed Show of Capsule Counting Machine


 Application of Capsule Counting Machine
This machine has been designed and developed to count & fill different shapes or size of products accurately like soft gel capsules, hard capsules, tablets, sugar coating, and film coating tablets, pills, herb medicine or similar products into containers or vials.
