Blister Packing Machine
Automatic 20kw Capsule Blister Packing Machine 240 Times/Minute
Automatic 20kw Capsule Blister Packing Machine 240 Times/Minute Product Description of Blister Packing Machine The machine is new product which is improved based on customer's requirements. It's suitable for packaging of all kinds of liquid and solid in medium & small pharmaceutical factory, health medicine factory, hospital preparation lab, food industry, electronic industry, hardware industry, etc. It can protect the material from steam or dust, improve product packing degree, and increase the additional value. The machine is used to produce small quality and many kinds
| Place of Origin: | China |
|---|---|
| Brand Name: | SED Pharma |
| Certification: | CE |
| Model Number: | SED-320GP |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 50-60 Days after receiving the deposit |
| Payment Terms: | T/T,L/C, ,Cash |
| Supply Ability: | 20 Set per month |
Configuration and product details
Technical overview- Name
- Automatic 20kw Capsule Blister Packing Machine 240 Times/Minute
- Model
- SED-320GP
- Cutting Speed
- 240 times/minute
- Maximum forming depth
- 12mm
- Max forming area and depth
- 240×320(L×W)
- Dimension
- 4360×1350×1950mm
- weight
- 3500kg
- total power
- 20kw 380V/ 50Hz
- material
- stainless steel
- key word
- Blister Packing Machine
Automatic 20kw Capsule Blister Packing Machine 240 Times/Minute
Product Description of Blister Packing Machine
The machine is new product which is improved based on customer's requirements. It's suitable for packaging of all kinds of liquid and solid in medium & small pharmaceutical factory, health medicine factory, hospital preparation lab, food industry, electronic industry, hardware industry, etc.
It can protect the material from steam or dust, improve product packing degree, and increase the additional value. The machine is used to produce small quality and many kinds of products.
Main Technical Data of Blister Packing Machine
|
Model
|
SED-320GP
|
|
Cutting Speed
|
240 times/minute
|
|
Maximum forming depth
|
12mm
|
|
Max forming area and depth
|
240×320(L×W)
|
|
PVC
|
<φ700
|
|
PTP
|
<φ250
|
|
Dimension
|
4360×1350×1950mm
|
|
Compressed air
|
0.5-0.7Mpa
|
|
weight
|
3500kg
|
|
total power
|
20kw 380V/ 50Hz
|
Feature of Blister Packing Machine
1) Travel scope can be adjusted. Mould is located by located groove so that it's easy to change mould. The machine heats the PVC through conduction and forms it through pressing and frothing.
2) The material is fed automatically. The mould and feeding equipment can be designed as user's requirements.
3) The heating moulds will automatically separate when the machine stops, which contributes to protect the material between them and extend the machine's life.
4) The equipment of trace pressing, batch number printing and scrap-collecting can be chose.
5) Manipulator grip and tow wrapper, straight to-and-fro running, synchronize accurately and stably.
6) Speed is shifted by step-less transducer; the operation panel of PC cycle (can be Adopt interface of human-machine).

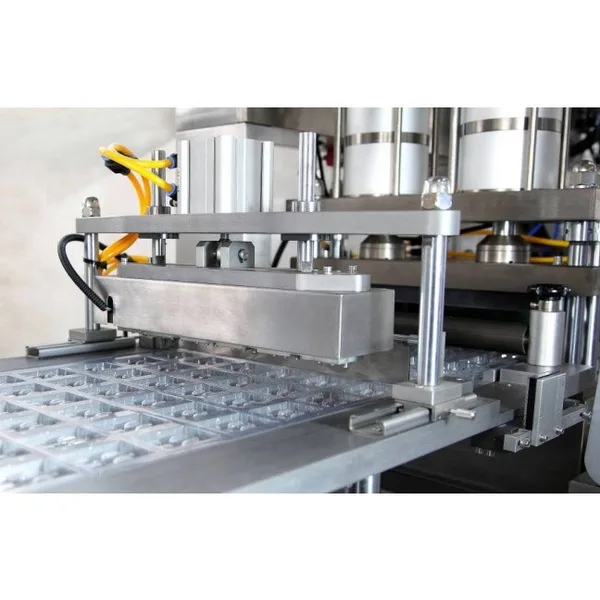

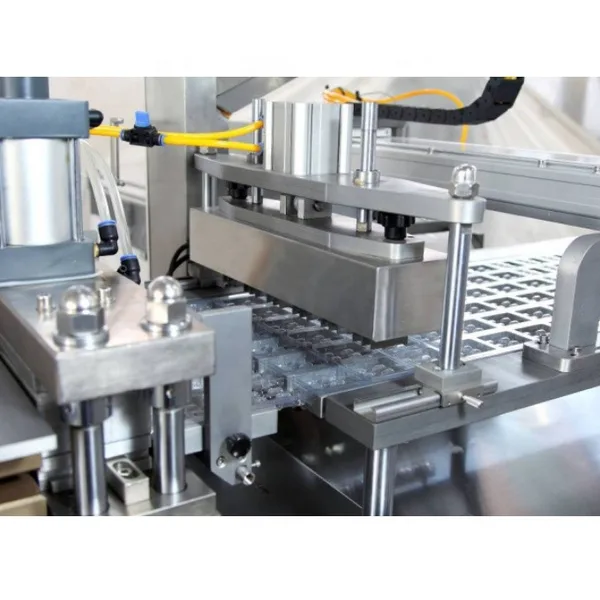

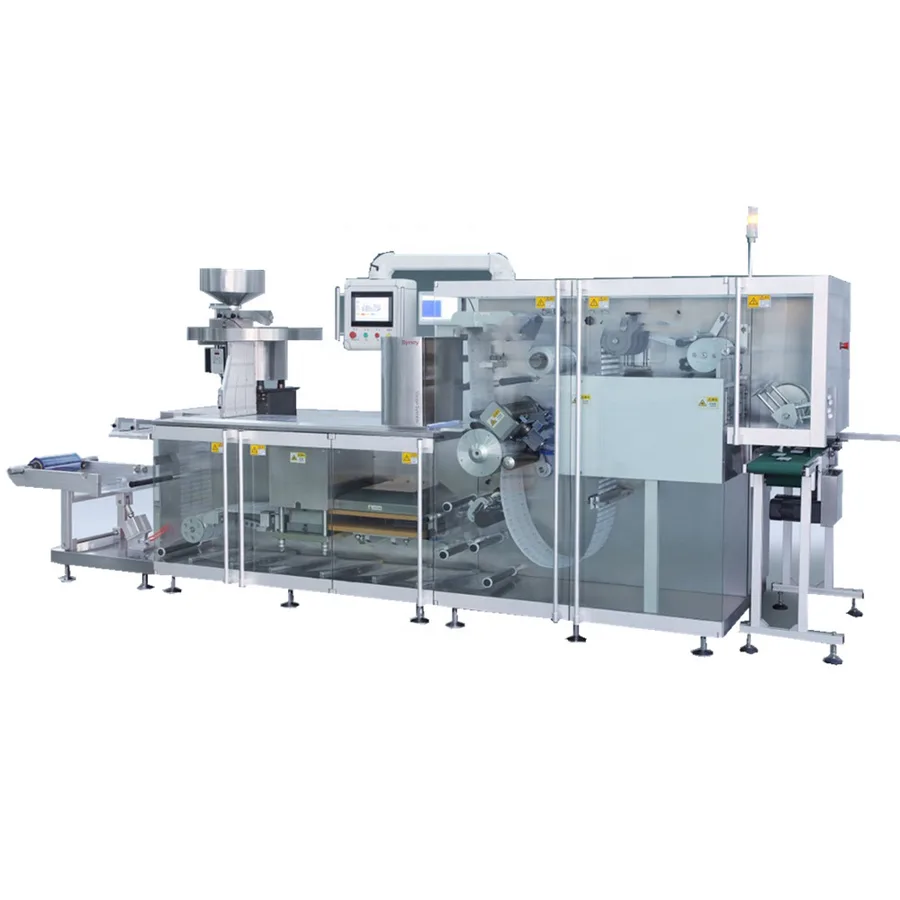

Product Show of Blister Packing Machine

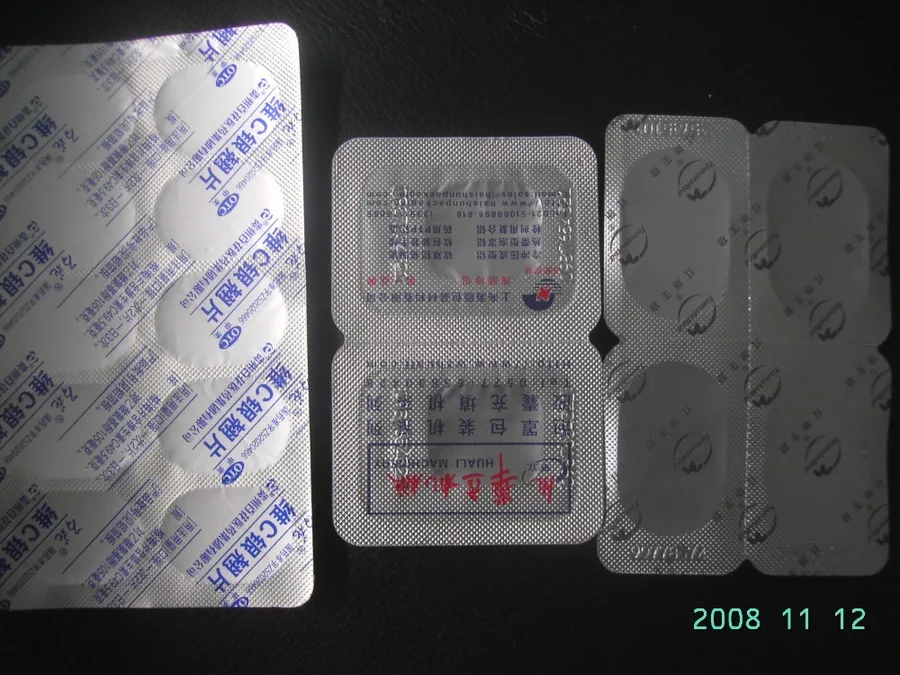

Application of Blister Packing Machine
