Aluminum Foil Liquid Capsule Blister Packing Machine Medical CE Certificate




Aluminum Foil Liquid Capsule Blister Packing Machine Medical CE Certificate



Product Overview of Blister Packing Machine​



It is suitable for capsule, tablet, big honey pill, candy, liquid, paste, one injector as well as irregular shape
AL-PVC, paper-plastic composite and ALU-ALU sealing packaging in pharmaecutical, healthcare, food, cosmetics industry etc.



Product Parameters of Blister Packing Machine​

Cutting Frequency (Times/min)	20-40
Capacity(Blister/h)	2400 (According To Standard Plate 80*57 Can Calculate The Max Capacity)
Max forming area and depth(mm)	80*100*26 (Standard 70*90*14)
Stroke (mm)	20-100 (Can Be Manufactured As User's Requirements)
Air Pressure(MPa)	0.4-0.6
Standard Plate (mm)	80*57 (Can Be Manufactured As User's Requirements)
Total Power	380V/220V 50Hz 1.8kw
Main motor power (kw)	0.75
PVC hard pieces(mm)	0.15-0.5*80
PTP Aluminum Foil (mm)	0.02-0.035*80
Dialysis Paper (mm)	50-100g*80
Mould Cooling	Tap water or recycle water
Weight (kg)	450



Feature of Blister Packing Machine​



1. The distance can be adjusted freely in the same flat surface for forming, heat-sealing, perforation, punching parts etc. It is suitable for various sizes of foodstuff packaging, and it has high precision and good Suitability.

2. Adjustable stroke, automatic feeding, register heating, positive pressure forming, up and down net web, cylinder heat-sealing, printing batch number with automatic perforation, mechanic dragging, easy operation, stable running.

3. It is adopted with imported gear reducer with lower noise and long life.

4. Correct location of die pressure plate, convenience of replacement.

5. Combination mechanism, convenient to assemble and disassemble, easy maintenance.

6. Equipped with temperature reserve chocolate feeder, it can ensure the chocolate charged smoothly, freely and accurately.

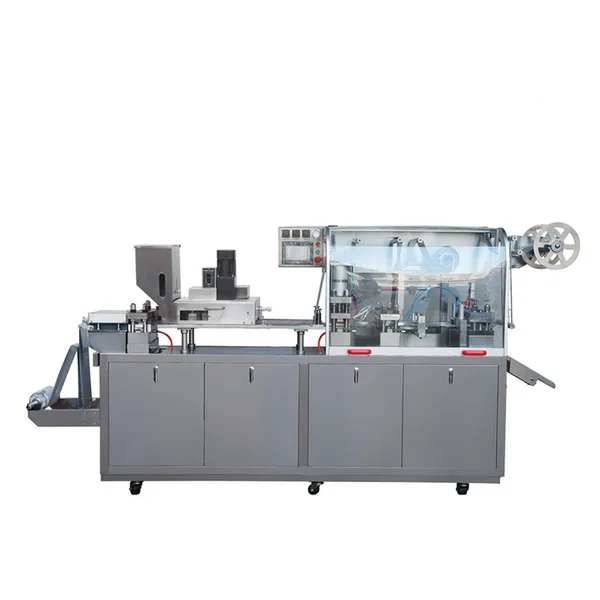

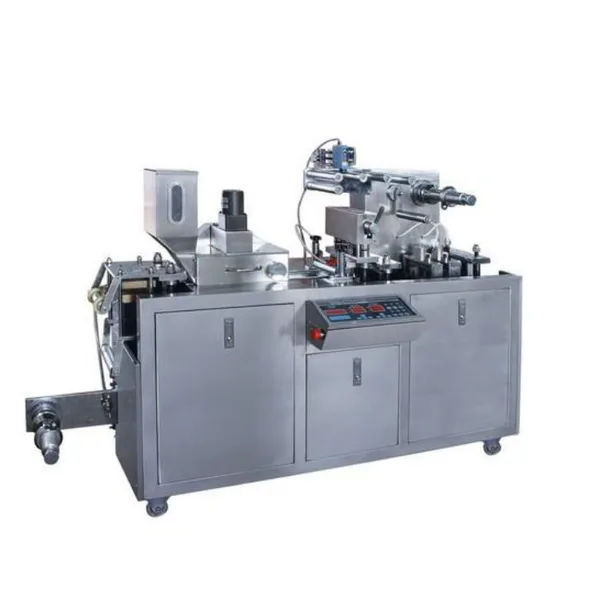

Product Show of Blister Packing Machine

Application of Blister Packing Machine
