Visual Inspection Equipment

AI-Powered Bubble Cover Detection Equipment

Name: AI-Powered Bubble Cover Detection Equipment
Brand: SED Pharma

Product Overview of AI-Powered Bubble Cover Detection Equipment The AI-Powered Bubble Cover Detection Equipment is a state-of-the-art bubble cover (blister) inspection system designed to guarantee the quality and integrity of packaged products. Whether you need single-sided or double-sided detection, these machines provide precise, high-throughput inspection for a wide range of defects. Product Parameters of AI-Powered Bubble Cover Detection Equipment Model SED-450PZSJ-E SED-450PZSJ1-E SED-900PZSJ-E SED-900PZSJ1-E Detection Speed 450 pcs/min 900 pcs/min Detection Range W 1

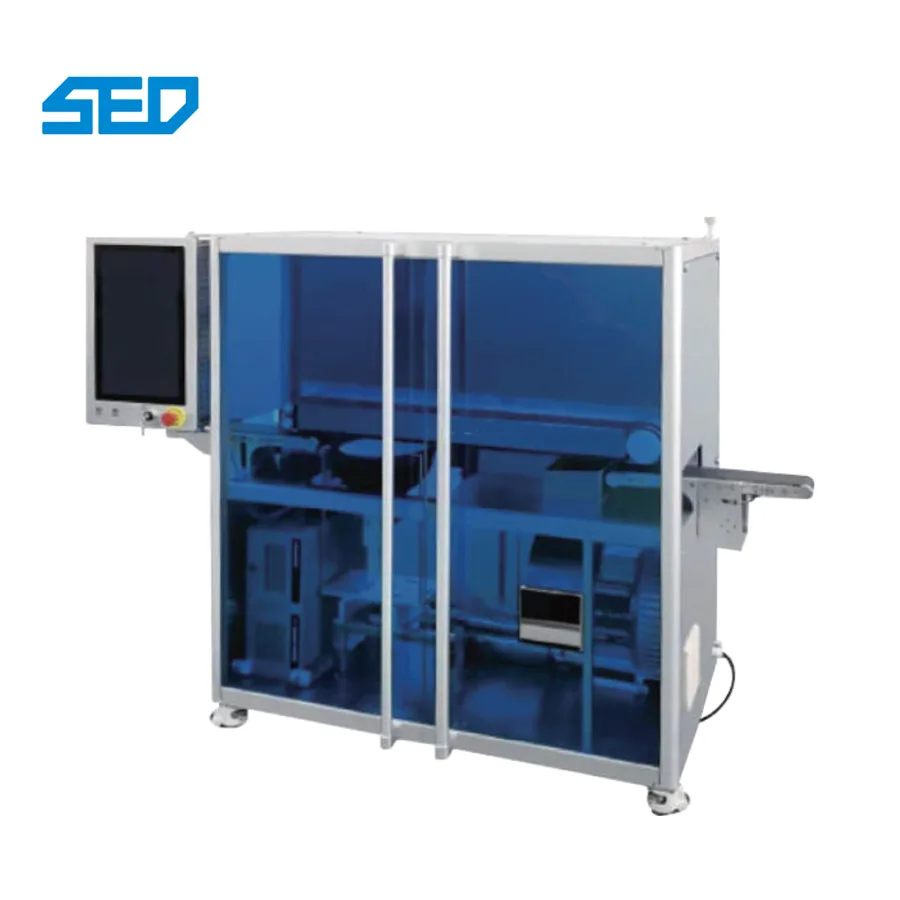

AI-Powered Bubble Cover Detection Equipment, view 1

Product Details:

Place of Origin:	China
Brand Name:	SED Pharma
Certification:	CE
Model Number:	SED-PZSJ-E

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	Wooden Case
Delivery Time:	50-60 Days after receiving the deposit
Payment Terms:	T/T,L/C,,Cash
Supply Ability:	30 Sets per month

Request configuration

Configuration and product details

Technical overview

Name: AI-Powered Bubble Cover Detection Equipment
Inspection Item: Missing pieces, half pieces/granules, fragments, capsule damage, intra piece damage, black spots, surface stains, hair strands, uneven cutting, batch number deviation, perforation, aluminum foil scratching, aluminum foil joints, aluminum foil wrinkles, etc
Accuracy: 0.05 MM, Adjustable accuracy
Power Supply: 380 V / 50 Hz
key word: pinhole detector machine, Pinhole Detector, pinhole detector for aluminium foil, pinhole detection system

Product Overview of AI-Powered Bubble Cover Detection Equipment

The AI-Powered Bubble Cover Detection Equipment is a state-of-the-art bubble cover (blister) inspection system designed to guarantee the quality and integrity of packaged products. Whether you need single-sided or double-sided detection, these machines provide precise, high-throughput inspection for a wide range of defects.

Product Parameters of AI-Powered Bubble Cover Detection Equipment

Model	SED-450PZSJ-E	SED-450PZSJ1-E	SED-900PZSJ-E	SED-900PZSJ1-E
Detection Speed	450 pcs/min		900 pcs/min
Detection Range	W 130 MM * 100 MM (The board types outside the standard specifications shall be subject to the test results)
Inspection Item	Missing pieces, half pieces/granules, fragments, capsule damage, intra piece damage, black spots, surface stains, hair strands, uneven cutting, batch number deviation, perforation, aluminum foil scratching, aluminum foil joints, aluminum foil wrinkles, etc. .
Inspection Surface	Front	Front and back	Front	Front and back
Cameras	4
Accuracy	0.05 MM, Adjustable accuracy
Operation Screen	Touch screen (18.5 inches)
Power Supply	380 V / 50 Hz
Power	5 KW	5 KW	8 KW	8 KW
Environment	Temperature: 10–30° C, humidity: 30–70%
Size	1372.57601583 MM		1372.510001603 MM
Weight	517 KG	522 KG	636 KG	645 KG

Feature of AI-Powered Bubble Cover Detection Equipment

Capability to inspect up to 900 pcs/min, matching the fastest production lines without bottlenecks.
High-resolution 4-camera system with an adjustable accuracy of 0.05 mm.
Detects missing pieces, fragments, capsule damage, surface stains, hair strands, and even aluminum foil wrinkles.
Equipped with an 18.5-inch large touch screen for real-time monitoring and easy parameter adjustments.
Choose between front-only or front-and-back inspection to suit your product visibility needs.

Show of AI-Powered Bubble Cover Detection Equipment

AI-Powered Bubble Cover Detection Equipment product detail
