Capsule Counting Machine
99.999% Accurate Vision Counting Machine | SED-500SJT-F Desktop Counter
99.999% Accurate Vision Counting Machine | SED-500SJT-F Desktop Counter Product Overview The SED-500SJT-F Desktop Automatic Visual Counting Machine is a high-performance verification solution designed for modern pharmaceutical and nutraceutical environments. Utilizing advanced high-precision imaging technology, the system instantly calculates the exact number of tablets or capsules on the tray, eliminating the margin for human error in quality control and batch validation. Key Features Ultra-High Counting Accuracy Automatically detects and counts products based on captured
| Place of Origin: | China |
|---|---|
| Brand Name: | SED-pharma |
| Certification: | CE |
| Model Number: | SED-500SJT-F |
| Minimum Order Quantity: | >=1 Sets |
|---|---|
| Price: | $10,900.00/Piece |
| Packaging Details: | Export standard packing |
| Delivery Time: | Est. Time(days)-35-To be negotiated |
| Payment Terms: | T/T,L/C,,Cash |
| Supply Ability: | 30 Set/Sets per Month |
Configuration and product details
Technical overview- Name
- 99.999% Accurate Vision Counting Machine | SED-500SJT-F Desktop Counter
- Keywords
- Visual Counting Machine, Tabletop Vision Counting Machine, Desktop Visual Counter
- Counting Accuracy
- ≥99.999%
- Max. Counting Speed
- 500 units in ≤1 second
- Applicable Dosage Forms
- Tablets, Capsules, Softgels
- Counting Area
- 200mm × 200mm
- Voltage
- 220V 50Hz
99.999% Accurate Vision Counting Machine | SED-500SJT-F Desktop Counter
Product Overview
The SED-500SJT-F Desktop Automatic Visual Counting Machine is a high-performance verification solution designed for modern pharmaceutical and nutraceutical environments. Utilizing advanced high-precision imaging technology, the system instantly calculates the exact number of tablets or capsules on the tray, eliminating the margin for human error in quality control and batch validation.
Key Features
- Ultra-High Counting Accuracy
Automatically detects and counts products based on captured images, achieving an accuracy of ≥99.999%, minimizing counting discrepancies. - Advanced Vision Technology
Equipped with a high-resolution camera system capable of identifying tablets and capsules of various colors, sizes, and shapes. - Wide Product Compatibility
Suitable for tablets, hard capsules, and softgels across different specifications and batch sizes. - Self-Learning Function
Intelligent system adapts to different products, simplifying setup and reducing manual adjustments. - User-Friendly Interface
Intuitive operation panel allows quick configuration, easy debugging, and efficient daily use. - Data Traceability & Analysis
Real-time data storage supports historical query and analysis, helping identify the root causes of defective products. - Compliance-Ready System
Designed in accordance with FDA 21 CFR Part 11 requirements for data integrity and system validation. - Flexible Expansion Options
- Optional portable printer for real-time result printing
- USB interface reserved for future smart system integration
- Optional defect detection module for enhanced quality control
Detailed Specifications
| Model | SED-500SJT-F |
| Voltage | 220V 50Hz |
| Max. Counting Speed | 500 units in ≤1 second |
| Counting Accuracy | ≥99.999% |
| Applicable Dosage Forms | Tablets, Capsules, Softgels |
| Counting Area | 200mm × 200mm |
| Recipe Storage | ≥200 types |
| Core Functions | Tablet/Capsule count verification |
| Optional Upgrades | Defect detection, Real-time portable printer |

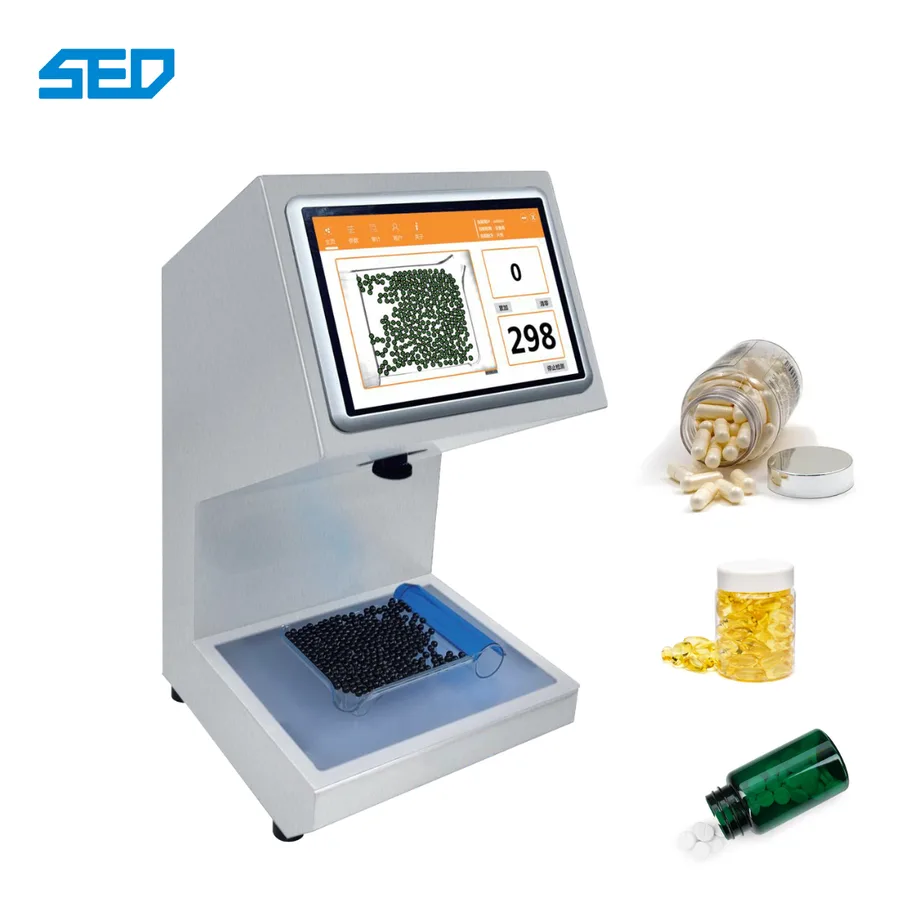

Product Image
Product Application
The SED-500SJT-F is primarily used for:
- Tablet counting optimization
- Capsule counting verification
- Softgel quantity checking
- Production quality control
- Packaging batch verification
It helps ensure consistent dosage accuracy and reduces risks caused by manual counting errors.
