Capsule Counting Machine
48 Channel Capsule Counting Machine 10-120bottles/min 100L Hopper
Product Details:
Payment & Shipping Terms:
Request configuration
| Place of Origin: | China |
|---|---|
| Brand Name: | SED Pharma |
| Certification: | CE |
| Model Number: | SED-48S |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 35 days after receiving the deposit |
| Payment Terms: | T/T,L/C,,Cash |
| Supply Ability: | 30 Sets Per Month |
Configuration and product details
Technical overview- Name
- Energy Saving Automatic 48 Channel Gelatin Capsule Counting Machine
- Hopper Volume
- 100L
- Capacity
- 10-120bottles/min
- Compressed air
- 06Mpa
- Machine Weight
- 900KGS
- Dimension
- 2160*1560*1700mm
- Machine Speed
- 2-9999 pcs /min
- Warranty
- 1 Year
Automatic 48 Channel Gummy Bear Soft Candy Counter Soft Capsule Bottling Machine
Energy Saving Automatic 48 Channel Gelatin Capsule Counting Machine
Technical Parameters of Tablet Counter Machine
| Model name | SED-48S |
|---|---|
| Product name | Energy Saving Automatic 48 Channel Gelatin Capsule Counting Machine |
| Application |
|
| Hopper Volume | 100L |
| Capacity | 10-120 bottles/min |
| Filling Quantity | 2-9999 pcs/bottle (adjustable) |
| Power supply | 220v 50HZ 1.6KW |
| Compressed air | 0.6Mpa 5L/min |
| Bottle Size | Diameter: ≤50mm Height: ≤180mm |
| Counting Size | Pills with diameter of 22 or less are compatible with 000-5 capsules soft capsules with diameters of 3.5-22 plain tablets special-shaped tablets sugar-coated tablets |
| Machine Weight | 900kg |
| Machine Size L × W × H (mm) | 2160*1560*1700mm |
Main Features of Tablet Counter Machine
- Compatibility, high accuracy, wide application and use of the Company's original anti-dust photoelectric detection of high technology, can count Tablets (including special-shaped tablets), capsules, soft capsules (transparent, opaque), pill count to bottling
- Vibratory cutting drugs do not damage
- High degree of intelligence, with no bottle is not the number of self-fault detection alarm and many other control functions
- Compact structure, stability and durability, and no regular replacement parts, small footprint, the use of low-cost
- To facilitate the replacement of species, can automatically take-off and landing, demolition cleared without any tools, convenient and quick
Working Principle of Tablet Counter Machine
Electronic counting machines are our company's star products, which is a stable reliable electronic products that was successfully developed through repeated experiment after a long time research. Its core part and control system adopt imported original accessories. It mainly consists of such structures as hopper, vibration transmission, photoelectric sensor, dust storage box, human-computer interface.

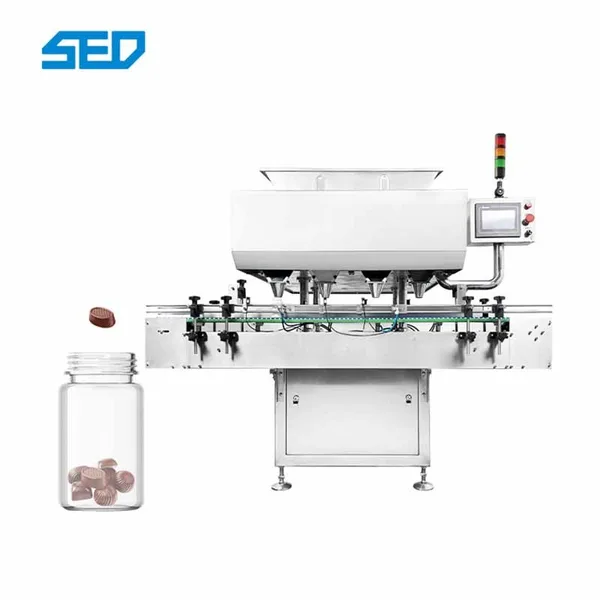

Product Show of Tablet Counter Machine
Application of Tablet Counter Machine
Suitable for a wide range of granules, such as tablets, capsules, gels, beans, hardwares, candy, etc. 0-5# capsules, soft capsules, φ5.5-12 normal tablets, special shape tablets, coating tablets and other solid granules
