Capsule Counting Machine

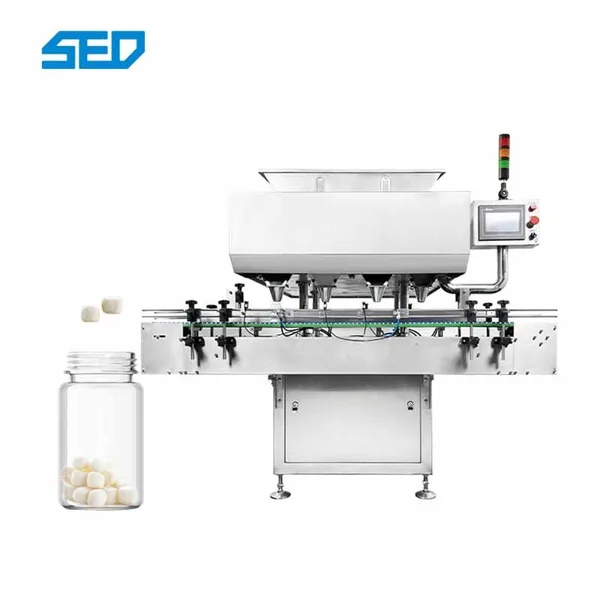

32 Channel Capsule Counting Machine SED-32S 90L Hopper 220V
High-Accurate 32 Channel Honey Pill Counter Capsule Tablet Counting Machine 32 Channel Tablet Counting Device, Automatic Electronic Capsule Counter Stainless Steel Main Features Widely applicable for tablets (including special shaped tablets), capsules, gels (including special shaped, transparent and opaque gels), pills and most solid granules Patented bottle separation and switching device prevents pill damage Anti-dust sensor technology ensures stable operation and accuracy in dusty environments Proprietary anti-disturbance technology processes counting signals with advan
| Place of Origin: | China |
|---|---|
| Brand Name: | SED Pharma |
| Certification: | CE |
| Model Number: | SED-32S |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 35 days after receiving the deposit |
| Payment Terms: | T/T,L/C,,Cash |
| Supply Ability: | 30 Sets Per Month |
Configuration and product details
Technical overview- Model
- SED-32S
- Item Name
- 32 Channel tablet Capsule Counting Machine Automatic stainless steel
- Hopper Volume
- 90L
- Material
- Stainless steel
- Bottle Size
- Diameter: ≤50mm Height:40-180mm
- Filling Quantity
- 2-9999 pcs/bottle(adjustable)
- Counting Speed
- 10-120 bottles per minute
- Power
- 220V/50HZ 1.3KW
- Widely applicable for tablets (including special shaped tablets), capsules, gels (including special shaped, transparent and opaque gels), pills and most solid granules
- Patented bottle separation and switching device prevents pill damage
- Anti-dust sensor technology ensures stable operation and accuracy in dusty environments
- Proprietary anti-disturbance technology processes counting signals with advanced high-speed communication to the control system
- Patented half vibration-filling hopper prevents jamming, especially with smaller mouth bottles
| Item | SED-32S |
|---|---|
| Application |
|
| Capacity | 10-120 bottles (30-100 pcs/bottle)/min |
| Working Range | Adjustable from 2-9999 per bottle |
| Power supply and consumption | 220V/50HZ 1.3kw |
| Size | 2160*1530*1700mm |
| Hopper Volume | 90L |
| Bottle Size | Diameter: ≤50mm Height: 40-180mm |
| Counting Size | Pills with diameter of 22mm or less, compatible with 000-5# capsules, soft capsules (3.5mm-22mm), plain tablets, special-shaped tablets, sugar-coated tablets |
| Compressed air | 0.6Mpa 5L/min |
| Weight | 710kg |
The bottle feeding mechanism's track positions bottles at the filling station, waiting to be filled from the previous equipment. Drugs move through the corrugated plate vibration system, entering the drug storehouse in an orderly fashion.
The drug storehouse is equipped with photoelectric sensors that quantitatively count drugs as they fall into bottles.
