3.2kw Small Butter Jam Blister Packing Machine With Automatic

3.2kw Small Butter Jam Blister Packing Machine With Automatic



Product Description of Blister Packing Machine



The machine is new product which is improved based on customer's requirements. It's suitable for packaging of all kinds of liquid and solid in medium & small pharmaceutical factory, health medicine factory, hospital preparation lab, food industry, electronic industry, hardware industry, etc.

It can protect the material from steam or dust, improve product packing degree, and increase the additional value. The machine is used to produce small quality and many kinds of products.



Product Description of Blister Packing Machine

Model	SED-140P
Cutting Speed	15-40 times/minute
Capacity	4800 sheets/hour
Max forming area and depth	80*110*26(mm)
Standard scope range	20-70mm(According to customer's requirement)
Standard blister size	80*57mm Max. size can be made is 115*80(range)mm
Compressed air	0.6-0.8Mpa
Power	380V/220V 50Hz 3.2Kw
PVC	0.15-0.5*140(mm)
PTP	0.02-0.035*140(mm)




Feature of Blister Packing Machine

1) Travel scope can be adjusted. Mould is located by located groove so that it's easy to change mould. The machine heats the PVC through conduction and forms it through pressing and frothing.


2) The material is fed automatically. The mould and feeding equipment can be designed as user's requirements.


3) The heating moulds will automatically separate when the machine stops, which contributes to protect the material between them and extend the machine's life.


4) The equipment of trace pressing, batch number printing and scrap-collecting can be chose.


5) Manipulator grip and tow wrapper, straight to-and-fro running, synchronize accurately and stably.


6) Speed is shifted by step-less transducer; the operation panel of PC cycle (can be Adopt interface of human-machine).

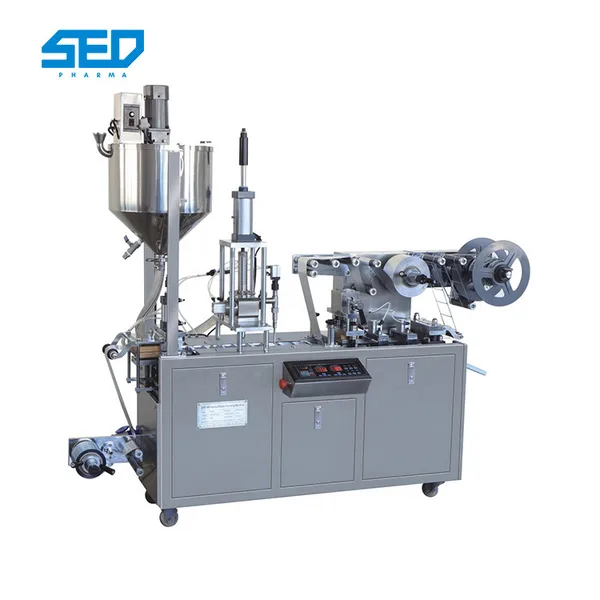

Photo show of Blister Packing Machine

Application advantages



1. Good protection. Due to the good sealing performance of the blister packaging, it can be waterproof, moisture-proof, dust-proof, rust-proof and prolong the protection period. At the same time, it creates conditions for gas-phase anti-rust packaging, and with gas-phase anti-rust agent, the anti-rust effect is better.


2. Transparent and intuitive. The transparent blister can easily see the shape and size of the equipment; the substrate can be printed with basic information such as equipment code, name, specification part number and barcode, which is convenient for the identification and quantity of the equipment in the package and avoids sending and receiving errors.


3, easy to use. The blister package is easy to open and easy to use, and the sealing and protection of other equipment is not affected when using a single piece of equipment.


4. Lightweight. The quality of the blister packaging is small and meets the actual requirements. In addition, the blister has a certain elasticity, so it has a certain cushioning performance, and no additional cushioning material is added when packing, which not only saves storage space, but also reduces the cost of packaging.

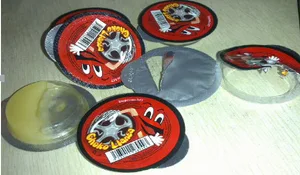

Application of Blister Packing Machine
