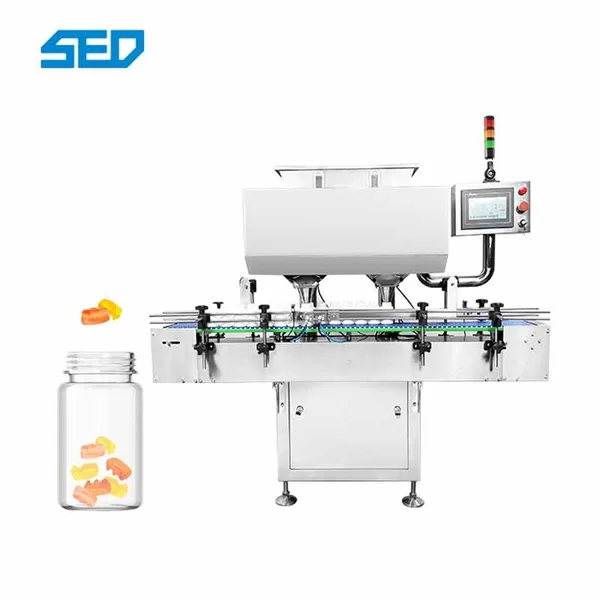

Capsule Counting Machine

24 Channel Capsule Counting Machine 10-80 Bottles/Min 220V

Name: 24 Channel Capsule Counting Machine 10-80 Bottles/Min 220V
Brand: SED Pharma

24 Channels Pill Tablet Soft Gelatin Capsule Counting Machine 24 Channels Automatic Electronic Tablet Capsule Counting Machine Detailed Parameters of Capsule Counting Machine Model Name SED-24S Application Filled capsule(000-5#) Soft Gelatin capsule Chewing gum Tablet Other solid object under machine range Hopper Volume 66L Capacity 10-80 bottles/min Filling Quantity 2-9999pcs/bottle (adjustable) Bottle Size Diameter ≤50mm Height ≤180mm Counting Size Pills with diameter of 22mm or less are compatible with 000-5# capsules soft capsules with diameters of 3.5mm-22mm plain tabl

24 Channel Capsule Counting Machine 10-80 Bottles/Min 220V, view 1

Product Details:

Place of Origin:	China
Brand Name:	SED Pharma
Certification:	CE
Model Number:	SED-24S

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	Wooden Case
Delivery Time:	35 days after receiving the deposit
Payment Terms:	T/T,L/C,,Cash
Supply Ability:	30 Sets Per Month

Request configuration

Configuration and product details

Technical overview

Name: 24 Channels Automatic Electronic Tablet Capsule Counting Machine
Condition: New
Usage: Tablets,Capsules,Soft Gelatin Capsules,Gum,Etc.
Power: 1 KW
Power Supply: 220V/50HZ
Hopper Volume: 66L
Working Speed: 10-80 Bottles Per Minute
Filling Quantity: 2-9999pcs/bottle (adjustable
material: stainless steel
key word: Capsule Counting Machine Tablet bottling machine

24 Channels Pill Tablet Soft Gelatin Capsule Counting Machine

24 Channels Automatic Electronic Tablet Capsule Counting Machine

Detailed Parameters of Capsule Counting Machine

Model Name	SED-24S
Application	Filled capsule(000-5#) Soft Gelatin capsule Chewing gum Tablet Other solid object under machine range
Hopper Volume	66L
Capacity	10-80 bottles/min
Filling Quantity	2-9999pcs/bottle (adjustable)
Bottle Size	Diameter ≤50mm Height ≤180mm
Counting Size	Pills with diameter of 22mm or less are compatible with 000-5# capsules soft capsules with diameters of 3.5mm-22mm plain tablets special-shaped tablets sugar-coated tablets
Compressed air	0.6Mpa 4L/min
Power	220V/50HZ 1KW
Machine Weight	560kg
Machine Size L × W × H (mm)	156015301700mm

Feature of Capsule Counting Machine

Wide applicability. With our original anti-dust technology, it can be used for tablets( including abnormal tablets), capsules, gels( including abnormal gels,transparent gels and opaque gels) pearls and most kind of tabloids.
High-intelligentce: intelligent design of each machine with interactive operating multi-language panel.
Can save 10~20 kinds of different operating parameters and easy to load for different products. Self-diagnose ,displays errors and make alarms. Well cooperation between each machine and in the whole line.
High efficiency. Take purposed to operate, easy to operate, to adjust, to clean and to maintain.
Low working cost, low maintain cost. 3 workers will be enough to operate.

Working Principle of Capsule Counting Machine

Capacity related to the type and size of the bottle and tablet, as well as the quantity filled per bottle.

Product Show of Capsule Counting Machine
