16 Passageway High Speed Electronics Fully Automatic Tablet Capsule Counting Machine

16 Passageway High Speed Electronics Fully Automatic Tablet Capsule Counting Machine




Product Description of Counting Machine



Bottle mechanism: the bottle stopper on the bottle feeding track will stop the bottles from the previous equipment in the filling position and wait for filling. The medicine enters the medicine storehouse orderly by the vibration of the corrugated plate.



A counting photoelectric sensor is installed on the medicine storehouse, and the medicine falling into the medicine storehouse is loaded into the bottle at the bottling position after quantitative counting by the photoelectric counting sensor.



Detailed Parameters of Counting Machine

Applicable bottle	round, square plastic bottle
Filling objects	00 ~ 5 # capsule, soft capsule, 5.5 ~ 20 Φ tablet, special-shaped pieces, sugar pill, Φ 3 ~ 20 pills
Production capacity	40-60 bottles/min (related to bottle size, loading capacity and drug size)
Bottled volume setting range	2 -- 9999
Power	AC220V 50Hz 1.5kw
Accuracy	> 99.5% (better than industry standard)
Air Source	0.6 Mpa
Overall dimensions	1560*1530*1700mm
Weight	480kg



Trait of Counting Machine



(1) strong compatibility, it can count and bottle tablets (including special-shaped tablets), capsules, soft capsules (transparent, opaque), pills and other solid preparations or solid particles;

(2) vibration blanking: 24 channel vibration even blanking, special patent flip plate packaging mechanism blanking, discharging uniform and stable, no damage to the drug;

(3) anti-high dust: the company's original anti-high dust photoelectric sensing technology can work stably in the case of high dust;

(4) accurate counting: photoelectric sensor automatic counting, bottling error is less than the national standard;

(5) special structure of leakage, can prevent plugging, small bottle bottle can also quickly bottling (optional);

(6) high degree of intelligence, with no bottle no number, fault self-test and other detection alarm control functions;

(7) supporting functions: automatic detection of missing bottle photoelectric sensor, automatic shutdown;

(8) simple operation: intelligent design is adopted, and various operating parameters are set as required;

(9) easy maintenance: operators only need simple training to operate, disassembly, cleaning, replacement parts is simple and convenient, do not need tools;

(10) sealing and dustproof: dust removal box is equipped to reduce dust pollution (optional).

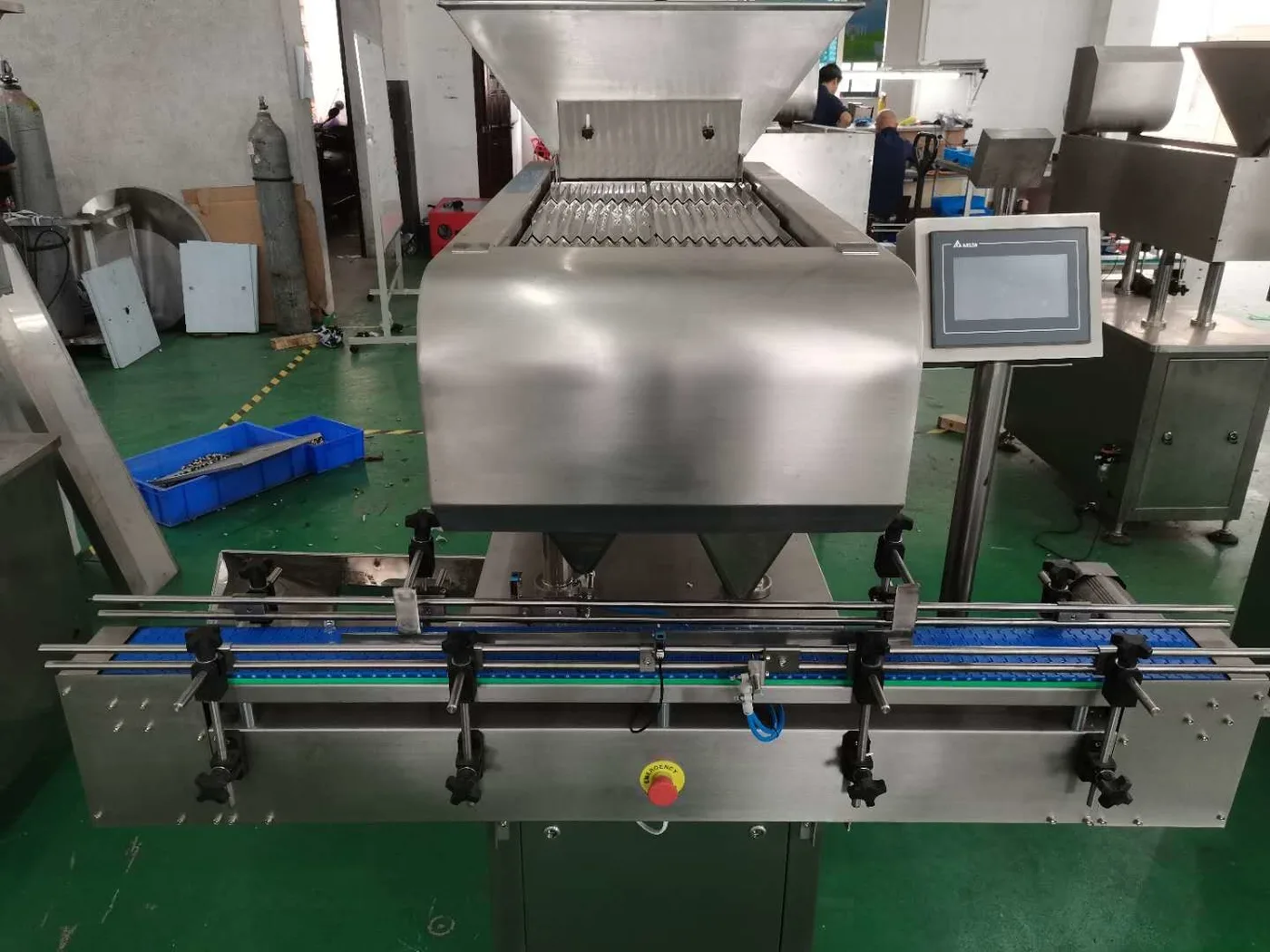

Photo show of Counting Machine



Application of Counting Machine



This machine uses the most advanced anti-high dust electronic counting technology. Tablets (including shaped tablets), hard capsules, soft capsules (transparent, opaque) pellets, and other solid particles ranging in size from 3 to 12 mm can be counted



and dispensed. Can be bottled, boxed, bagged. Fully compliant with GMP requirements, especially suitable for research institutions, hospitals, new small pharmaceutical factories, health products factories.
