16 Passageway Capsule Counting Machine For Pharmaceutical Packaging



Product Description of Counting Machine



Pure Granules into top hopper, adjust primary, intermediate or last stage vibration feeder, then medicine granules in hopper drop into material-dropping mouth continuously in line along vibration trough slab.



Granules drop into checking passageway one by one, infrared ray dynamic scanning transducer will catch signals about granules and put them into FPGA high-speed microprocessor, counting will be finished with the cooperation of electric circuit and program



Detailed Parameters of Counting Machine

Items	Specific parameters
Steady speed	10,000 granules/min
Filling volume of single bottle	2~9999 grain
Drug specifications	T:3~10mm DIA:3~13mm L:3~21mm
Bottle specifications	DIA:20~100 mm H:40~240 mm
Power supply	AC220V 50/60HZ ,3.2KW
Air pressure	0.5~0.7Mpa
Air consumption	200L/min (clean air)
Boundary dimension(L×W×H)	1560*1530*1700mm
Weight	480KG



Trait of Counting Machine



ablet counting machine through 16 strips of channel ,medicament can lay off through passing two classes automatically ,falling medicines is uniform and counting tablets is precise ,being suitable for all kinds of single bottle filling quantity and tablet type ,changing variety without replacing and mould .



It adopts the sensitive technology of the CCD and its distinguishing rate is high ,responding speed is fast ,and the operating is the man machine interface touch screen .Adopting international name brand photo-electricity controlling system ,controls when bottles are lacking and blocking ,then cease automatically ,the operating is stable and reliable .Materials touching with the medicine conforms to the requirements of GMP.



Remark: Machine will be designed according to customer's detail requirements. Please contact with us for choose.

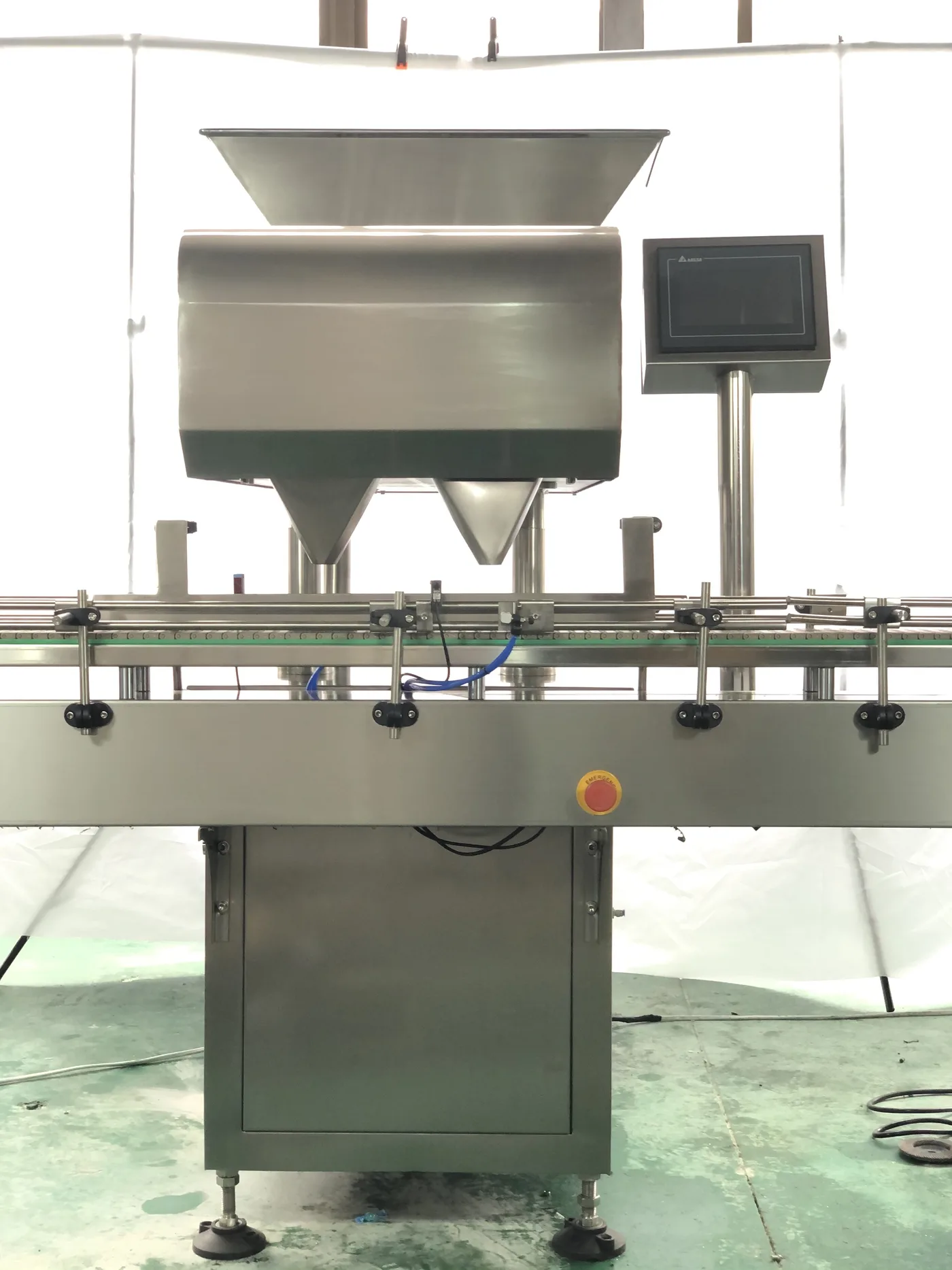

Photo show of Counting Machine



Application of Counting Machine



Counting machine is suitable for pharmaceutical, hospital, food and other industries, counting, bottling and bagging capsules, tablets, granules and other drugs or food. It is also suitable for counting, bottling, bagging and canning of other solid objects with regular shapes.
