10 Channel Ultra Wide Channel Capsule Counting Machine With Automatic



10 Channel Ultra Wide Channel Capsule Counting Machine With Automatic




Product Description of Tablet Counter Machine

SED-10S photoelectric counting bottle filling machine adopts internationally advanced vibrating multi-channel feeding, computer control, dynamic scanning counting, automatic bottle feeding, photoelectric sensor control and other advanced technologies.

It is designed according to GMP standards, and the operation interface is displayed in LCD English or Chinese. Equipped with system self-checking, error prompting, fault alarm and automatic shutdown, and other safety protection intelligent devices, it is a high-tech material counting and filling equipment integrating light and motor.



This machine can be widely used for fast counting and bottling of various shapes of medicines, foods, health products and other materials. The counting and bottling speed and accuracy have reached the advanced level of similar products at home and abroad.



Detailed Parameters of Tablet Counter Machine

Model	SED-10S
Productivity	20-50bottles/min
Applicable target	Filled capsule(000-5#) Soft Gelatin capsule chewing gum tablet other solid object under machine range
Hopper Volume	20-50bottles(30-100 pcs/bottle)/min
Filling Quantity	1-9999pcs/bottle (adjustable)
Bottle Size	Diameter: 30-100mm Height:40-180mm
Dimension(L*W*H)	1360*1530*1700mm
Weight	380kg
Counting Size	Pills with diameter of 37 or less are compatible with 000-5 capsules soft capsules with diameters of 3.5-37 plain tablets special-shaped tablets sugar-coated tablets
Compressed air	0.6Mpa 3.5L/min
Power	220V/50HZ 0.6KW




Feature of Tablet Counter Machine
1)Compatibility, high accuracy, wide application and use of the Company's original anti-dust photoelectric detection of high technology, can count Tablets (including special-shaped tablets), capsules, soft capsules (transparent, opaque), pill count to bottling;

2)Vibratory cutting drugs do not damage;

3)A high degree of intelligence, with no bottle is not the number of self-fault detection alarm and many other control functions;

4)Compact structure, stability and durability, and no regular replacement parts, small footprint, the use of low-cost;

5)To facilitate the replacement of species, can automatically take-off and landing, demolition cleared without any tools, convenient and quick;

6)Chinese dialogue control panel, can store 10 ~ 20 group of species parameters, adjusted to facilitate the use of special;

7)Fully automatic operation, with the Upper and Lower Union Road, intelligent control of processes, coordination, and no special operation, labor-saving devices.

8)Low prices, especially for small-volume, variety and more manufacturers use. Control chip imported to the United States, photoelectric sensors for Taiwan's imports.

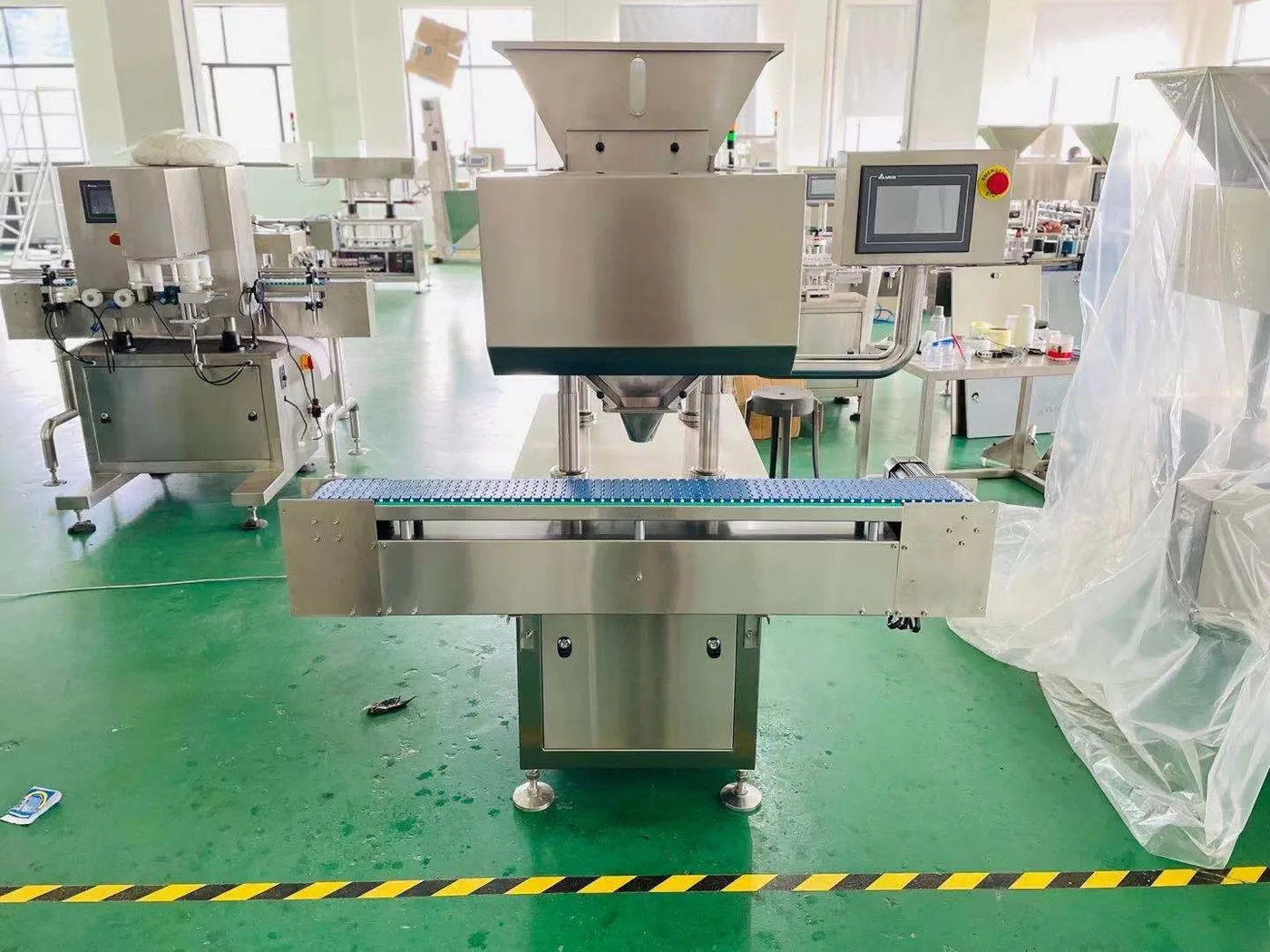

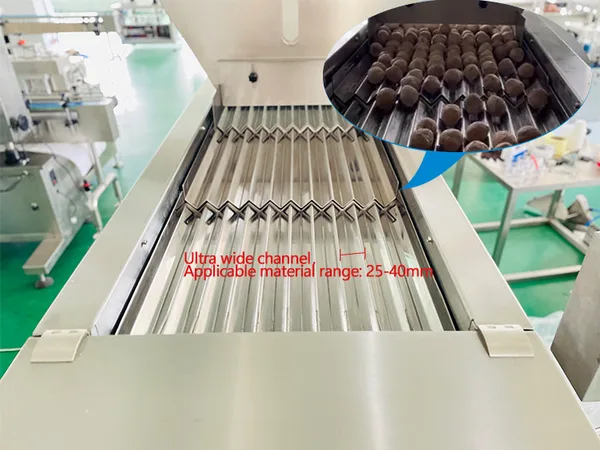

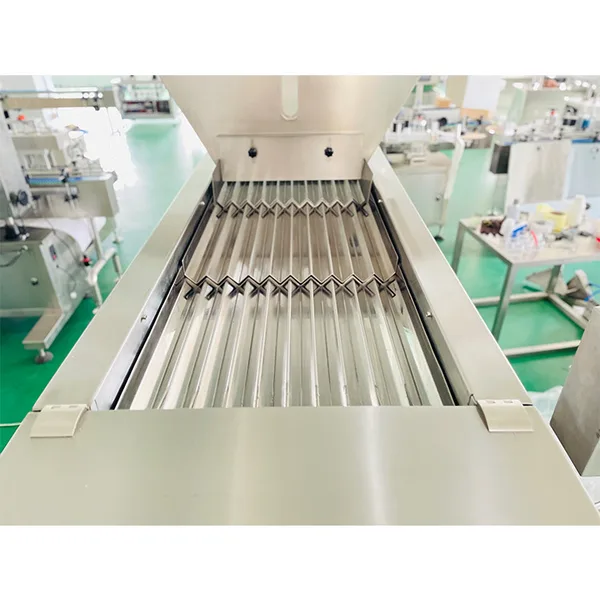

Product Show of Tablet Counter Machine

Application of Tablet Counter Machine

Automatic Electronic Counting Machine is mainly used for bottle packing of tablets (including abnormal tablets), capsules, gels (including transparent gels and opaque gels) pills and similar solid granules.
