Pharmaceutical Machinery Equipment
Ultrasonic Vial Washing Machine with 300 vials/minute Capacity and 304 Stainless Steel Construction for 3-Water 3-Air Alternating Jet Cleaning
Ultrasonic Vial Washing Machine Ampoule Vial Washer Product Overview The SED-80CXP-Z is a high-performance vertical ultrasonic vial washing machine designed for ampoules, penicillin vials, and other glass containers. It features a rotary drum with robotic grippers for flipping and cleaning, combined with ultrasonic pre-washing and a 3-water 3-air alternating jet system to ensure thorough cleaning. Constructed entirely from 304 stainless steel and compliant with GMP standards, it is ideal for pharmaceutical and biotech washing processes. Technical Specifications Parameter Sp
Product Details:
Payment & Shipping Terms:
Request configuration
| Place of Origin: | China |
|---|---|
| Brand Name: | SED Pharma |
| Certification: | CE |
| Model Number: | SED-80CXP-Z |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 50-60 Days after receiving the deposit |
| Payment Terms: | T/T,L/C,,Cash |
| Supply Ability: | 30 Sets per month |
Configuration and product details
Technical overview- Name
- Ultrasonic Vial Washing Machine Ampoule Vial Washer
- Applicable Containers
- Ampoules, Penicillin Vials
- Capacity
- 300 vials/minute
- Pure Water Consumption
- ≈1.5 m³/h, 0.15-0.18 MPa
- Compressed Air Consumption
- ≈45 m³/h, 0.6-0.8 MPa
- Power Capacity
- 12.5 kW
- Machine Weight
- Approx. 2200 kg
- Machine Dimensions (L×W×H)
- 2050 × 2050 × 1450 mm
- key word
- Ultrasonic Washing Machine
Ultrasonic Vial Washing Machine Ampoule Vial Washer
Product Overview

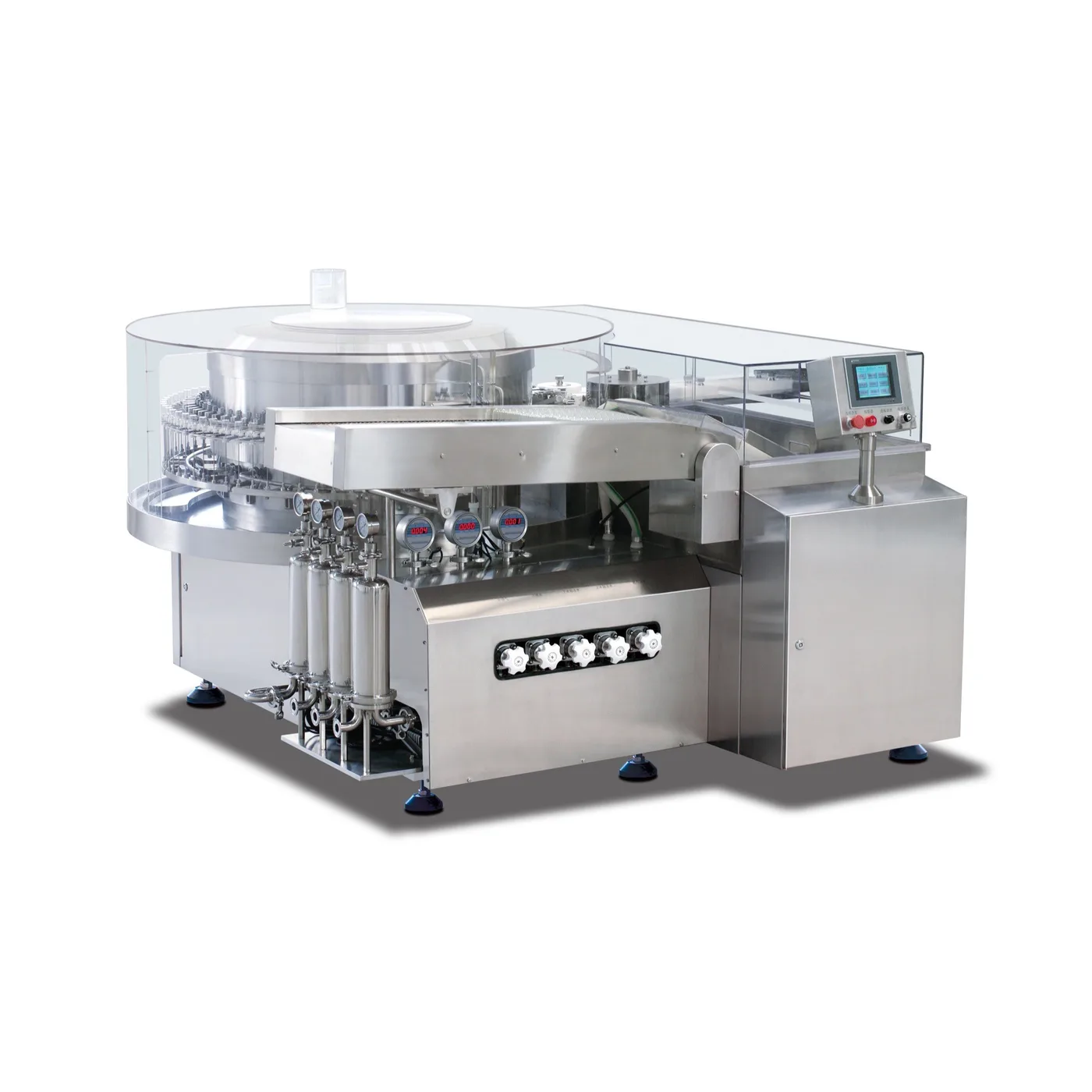

The SED-80CXP-Z is a high-performance vertical ultrasonic vial washing machine designed for ampoules, penicillin vials, and other glass containers. It features a rotary drum with robotic grippers for flipping and cleaning, combined with ultrasonic pre-washing and a 3-water 3-air alternating jet system to ensure thorough cleaning. Constructed entirely from 304 stainless steel and compliant with GMP standards, it is ideal for pharmaceutical and biotech washing processes.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | SED-80CXP-Z |
| Applicable Containers | Ampoules, Penicillin Vials |
| Capacity | 300 vials/minute |
| Pure Water Consumption | ≈1.5 m³/h, 0.15-0.18 MPa |
| Compressed Air Consumption | ≈45 m³/h, 0.6-0.8 MPa |
| Power Capacity | 12.5 kW |
| Machine Weight | Approx. 2200 kg |
| Machine Dimensions (L×W×H) | 2050 × 2050 × 1450 mm |
Key Features
- Ultrasonic pre-washing + 3-water 3-air alternating jets for complete cleaning
- Robotic grippers flip vials upside-down for residue-free drying
- 304 stainless steel structure, corrosion-resistant, and easy to clean
- Siemens PLC + Schneider inverter for precise and stable control
- Terminal filtration for clean water and air supply
- Automatic line synchronization with sterilizing tunnels and filling machines
PROJECT ENQUIRY
Discuss your production requirements.
Share the material, target output and any site constraints. The product name is attached to your enquiry automatically.
