Split Colloid Mill Homogenization Powder Granulator Machine For Chemical Industry

Split Colloid Mill Homogenization Powder Granulator Machine For Chemical Industry

Product Description of Powder Granulator Machine
Colloidal mill is a new-type equipment of wet type super micro grain processing, suitable foe the homogenization, emulsification, separation, smash and milling of various emulsions.

It widely used in foodstuff (fruit jam, juice, albumen milk, soy milk, milk tea, dairy, beverage,etc.), pharmacy, dairy chemical, chemical industry, emulsion asphalt, coal floating agent, ceramic glaze, nanometer material, etc.

The basic working principle of colloid mill is shearing, grinding as well as high-speed stirring applied force, grinding is finished depending on the relative movement of tooth-form slope, one of them rotates at high speed, while the other stays still to make materials that passing between tooth-form slopes receive great shear force and friction, and to grind, emulsify, smash, homogenize and mix them under complex forces such as high-frequency shake, high-speed vortex and others at the same time, so as to achieve the effect of fine and super micro.



Product Parameters of Powder Granulator Machine

Model	SED-140JM
Emulsifying Fineness	2-50um
Volume	50L
Grinding disc diameter	Ø140mm
Inlet Diameter	Ø50mm
Outlet Diameter	Ø32mm
O.D. of cooling circulating joint	Ø12mm
Rotation Rate	2900 rpm
Motor Power	11kw (380V/220V 50Hz)
Overall Dimension(mm)	800*500*1110mm (L*W*H)
Machine Weight (kg)	300kg



Advantages of Powder Granulator Machine​

Colloid mill works with shearing, grinding high-speed stirring .Grinding process occurs in relative movement between the two teeth with one revolving in high speed and another still, which makes the material between the teeth receive strong shearing and abrasion in addition to high frequency vibration and high speed swirl.



The above forces effectively evenly disperse, emulsify, smash material. this is a new equipment that wet processes superfine grain. Which is used to homogen, emulsify, mix and smash various semi-liquids, liquids and late emulsion.

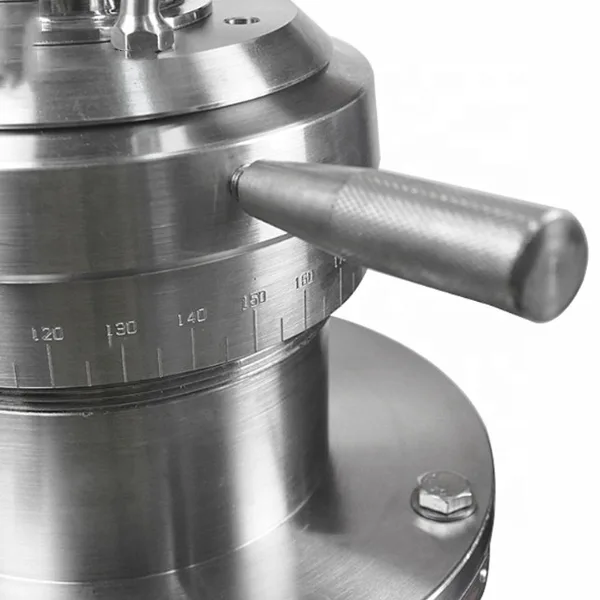

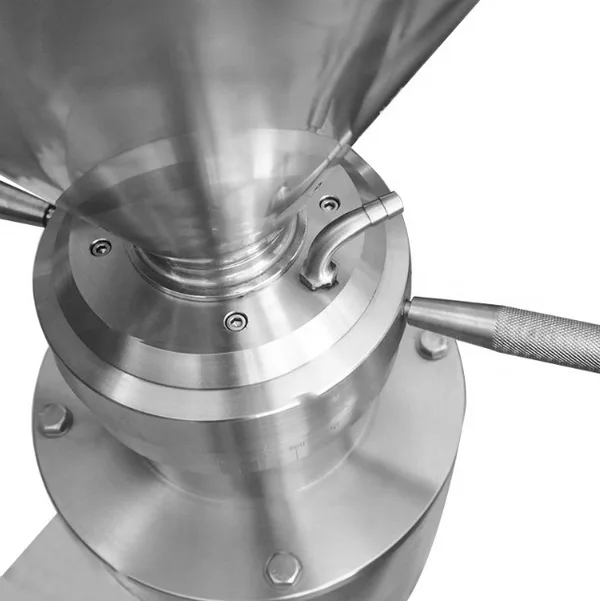

Products Show of Powder Granulator Machine



Application of Powder Granulator Machine



Food Industry: Aloe Vera, Tea, Ice Cream, Butter, Jam, Juice, Tomato Paste, Soybean Paste, Peanut Butter, Sesame, Chili
Sauce, red beans, protein milk, soy milk, dairy products, various beverages, chicken emulsified mud, emulsified pig skin, etc.

Animal skins, animal viscera, etc.

Chemical industry: paint, pigment, dye, lubricating oil, grease, diesel oil, petroleum catalyst, emulsified asphalt, adhesive, plastic, glass fiber reinforced plastic, leather, emulsion explosive

Other daily chemical industries: toothpaste, detergent, shampoo, shoe polish, cosmetics, bath essence, soap, balsam, etc.
