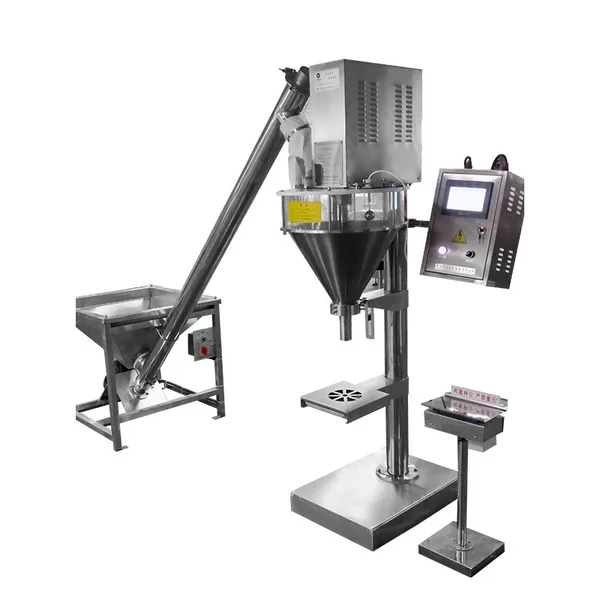

Semi Automatic Auger Powder Filling Machine
Product Description of Powder Filling Machine This filler is for powder and small granular material dosing such as pharmaceutical powder, instant drink powder, milk powder, spice, slat, white sugar, chemical powder etc. Filling into pre-made bag or solid container with high speed and accuracy ,can separately or work together with other packer. Product Parameters of Powder Filling Machine Metering method Weighing type Application Powder Hopper volume 50L Material The contact material part is 304 stainless steel Filling weight 1000-5000g Weighing range 1-5000g Filling
| Place of Origin: | China |
|---|---|
| Brand Name: | SED Pharma |
| Certification: | CE |
| Model Number: | SED-BFG-B |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 50-60 Days after receiving the deposit |
| Payment Terms: | T/T,L/C, ,Cash |
| Supply Ability: | 30 Sets per month |
Configuration and product details
Technical overview- Name
- Semi Automatic Auger Powder Filling Machine
- Application
- Powder
- Hopper volume
- 50L
- Material
- The contact material part is 304 stainless steel
- Filling weight
- 1000-5000g
- Weighing range
- 1-5000g
- Filling accuracy
- ±0.5%
- Filling speed
- 5-10bags/min
- Power supply
- AC380V 50-60HZ
- key word
- Powder Filling Machine
Product Description of Powder Filling Machine
This filler is for powder and small granular material dosing such as pharmaceutical powder, instant drink powder, milk powder, spice, slat, white sugar, chemical powder etc. Filling into pre-made bag or solid container with high speed and accuracy ,can separately or work together with other packer.
Product Parameters of Powder Filling Machine
| Metering method | Weighing type |
| Application | Powder |
| Hopper volume | 50L |
| Material | The contact material part is 304 stainless steel |
| Filling weight | 1000-5000g |
| Weighing range | 1-5000g |
| Filling accuracy | ±0.5% |
| Filling speed | 5-10bags/min |
| Power supply | AC380V 50-60HZ |
| Power | 1.8kw |
| Compressed Air | 6kg/m2 0.3m3/min |
| Weight | 150kg |
| Dimensions | 690*1060*2000mm |
Advantages of Powder Filling Machine
1) The material is in contact with 304 stainless steel, which meets the requirements of GMP.
2) PLC and touch screen control system, all Chinese and English interface, easy to operate;
3) Screw-type weighing measurement, 3-level speed feeding, filling volume and filling speed can be adjusted arbitrarily, with high precision.
4) The number of packages can be automatically displayed, and the workload of the machine can be easily counted
