Liquid Filling Machine
PLC 1.5kw Automatic Thick Dish Wash 5ml Liquid Filling Line
PLC 1.5kw Automatic Thick Dish Wash 5ml Liquid Filling Line Product Overview of Liquid Filling Machine This machine comes with 2 nozzles of filling head and two nozzles of capping heads. The machine can automatically fill 5-100ml glass and plastic bottle with aluminum cap. The machine adopts PLC control with touch screen operation which is easily input and display any production parameter while the machine running, such as production speed, filling volume, capping speed, etc. All machines parts are made of Stainless steel 304 with Organic Glass cover which meets the requi
| Place of Origin: | China |
|---|---|
| Brand Name: | SED Pharma |
| Certification: | CE |
| Model Number: | SED-2/2GX |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 50-60 Days after receiving the deposit |
| Payment Terms: | T/T,L/C, ,Cash |
| Supply Ability: | 30 Sets per month |
Configuration and product details
Technical overview- Name
- PLC 1.5kw Automatic Thick Dish Wash 5ml Liquid Filling Line
- Speed
- 30-40bottles/minute
- Measurement
- ±1%
- Rated power
- 1.5KW
- Working voltage
- 220V
- Net weight
- 700kg
- Contour Sizes
- 2400×1640×1580mm
- key word
- Liquid Filling Machine
PLC 1.5kw Automatic Thick Dish Wash 5ml Liquid Filling Line
Product Overview of Liquid Filling Machine
This machine comes with 2 nozzles of filling head and two nozzles of capping heads. The machine can automatically fill 5-100ml glass and plastic bottle with aluminum cap.
The machine adopts PLC control with touch screen operation which is easily input and display any production parameter while the machine running, such as production speed, filling volume, capping speed, etc.
All machines parts are made of Stainless steel 304 with Organic Glass cover which meets the requirement of GMP.
Product Parameters of Liquid Filling Machine
|
Range
|
5ml-100ml
|
|
Speed
|
30-40bottles/minute
|
|
Measurement
|
±1%
|
|
Rated power
|
1.5KW
|
|
Working voltage
|
220V
|
|
Working air pressure
|
6-7kg/cm²
|
|
Air-consuming amount
|
0.5m³/minute
|
|
Net weight
|
700kg
|
|
Contour Sizes
|
2400×1640×1580mm
|
Feature of Liquid Filling Machine
1. Easy to install, simple to operate and require minimum maintenance for maximum performance and long machine lifetime.
2. Integrated digital control with PLC and touch screen controls for easy operation. All actions are controlled by high technology Panasonic servo system.
3. Protected with safety shield meet strict safety restriction.
4. Sturdy conveyor system driven by high quality motor. Adjustable conveyor guide rails to accommodate with different products.
5. Anti-dripping design to enable the clean conveyor surface and perfect finished product
6. No bottle-no fill system.
7. Bottle jammed detection.
8. Positioned by star wheel. It will automatic stop when no bottle or position is not accurately.
9. Fully adjustable for different bottle with different star wheel and capping head.
10. Adjustable electronic torque values to eliminate damage to caps and reduce insert wear.
11. While changing volume set, all pistons can be controlled by the servo system.Gentle touch on the touch screen can easily change the volume set.There's no need to adjust the piston one by one and mechanically.
12. Adjustable speed while fling process, for example filling slowly at the beginning, then accelerate to fast speed and at the end slow down once again which is the best insurance for the foamy product and avoid liquid dipping out from the bottle.

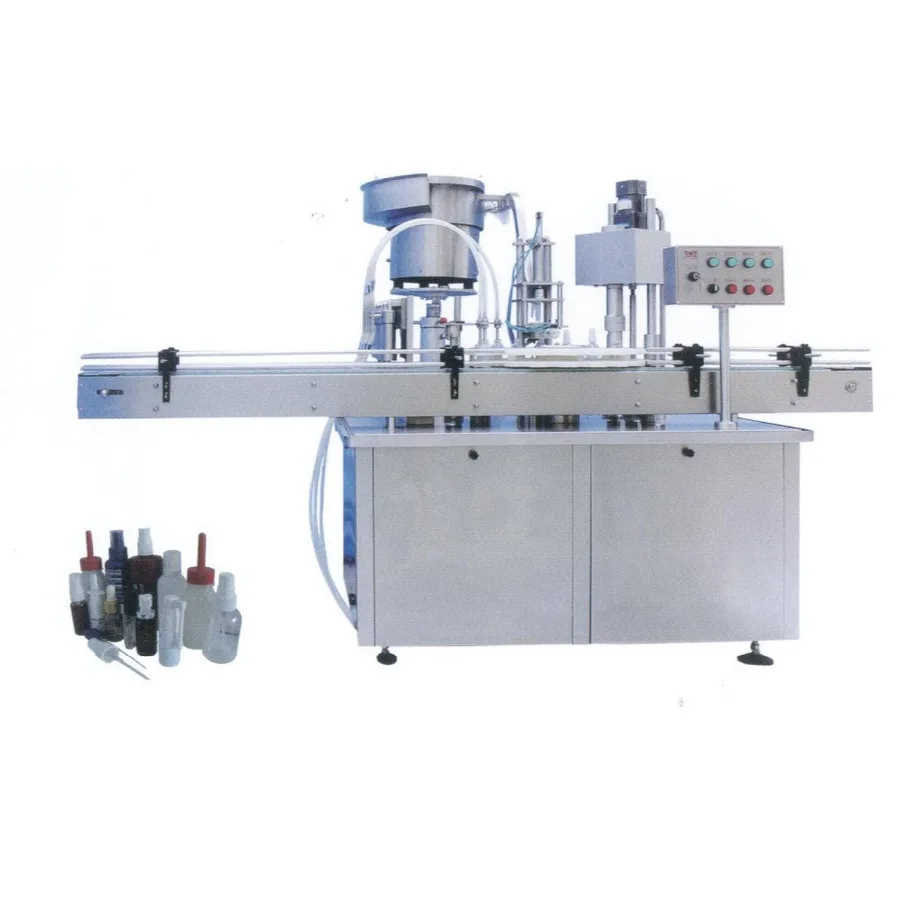

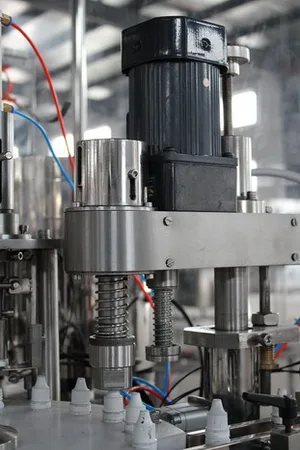

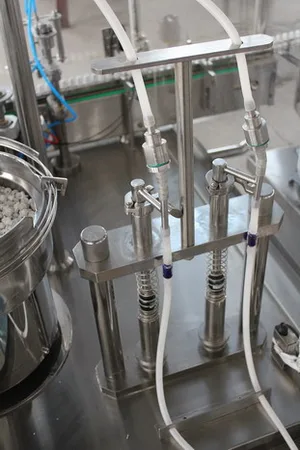

Show of Liquid Filling Machine
Application of Liquid Filling Machine
1. Suitable for filling viscous liquids such as shampoo, lotion, perfume, oil, beverage, water, etc.
2. Can fill various bottles, cans, cups and other containers
