Product Parameters of Emulsifying Mixer Machine

Model No.:	SED-100RZ
Working volume	130 L
Heating area for homogenizing tank	1.2㎡
Homogenizing motor	4 kw
Rotating speed	2800 r/min
Frame and scrapper motor	1.5 kw
Rotating speed	20-60 r/min
Working volume of the oil pot	60 L
Working volume of the water pot	80 L
Water circulation vacuum pump (KW)	1.45 kw
Power for the electricity heating	39 kw
Working pressure of the jacket	0.25 MPa
Working pressure of tank	≤0.09 MPa
Pressure of Compressed air	0.6-0.7 MPa
Air compression consumption	0.39 m3 /batch
Water consumption for jacket	2.0 m3 /batch
Water consumption for cleaning	1.1 m3 /batch



Working principle of Emulsifying Mixer Machine



The SED-100RZ Vacuum Emulsifying Mixer is composed of main pot(emulsifying pot),a water phase pot and an oil phase pot, vacuum unit, up-and down system, electrical control system and the motor frame etc.



The main pot is composed of the cut-off mixing pot, cut-off mixer unit, circulating system and the stirring system etc.



Features of Emulsifying Mixer Machine



1) The pot cover is automatic rising type, the material was directed draw into the emulsifying boiler from oil boiler and water boiler based on a pipe that is under vacuum, the discharge is based on the turn the emulsifying boiler.



And the heating system is electric heating or steam heating that the temperature is automation control. Put the cool water into the intercalated bed so cooling the material, simple operation and safety( at the outside have a warm layer).

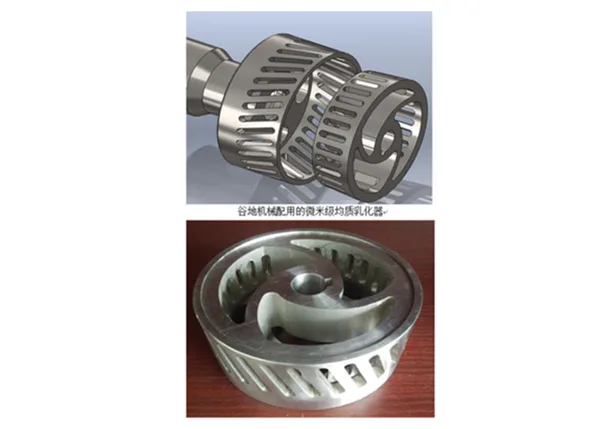

2) The homogenizer and the blade stirring can together work or separate work.. the material sliming,emulsification,mixing,dispersing,etc. what will finished during short time.



3) Contact position adopt high-quality stainless steel (medical use adopt 316L material make with supplies, the polishing of surface of the mirror of interior surface, mix the hygiene of the device in vacuum, it accords with the normal hygiene standard manufacture of GMP to adopt that is most ideal production equipment.)

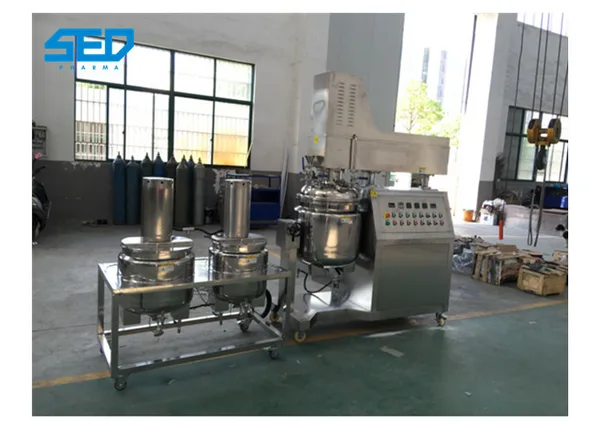

Show of Emulsifying Mixer Machine​



Application of Emulsifying Mixer Machine

Products are mainly used in daily chemical care products, biopharmaceuticals, food industry, coatings and inks, nanomaterials, petrochemicals, printing and dyeing auxiliaries, pulp and paper, pesticides, fertilizers, plastics and rubber, electronic appliances and other industries.
