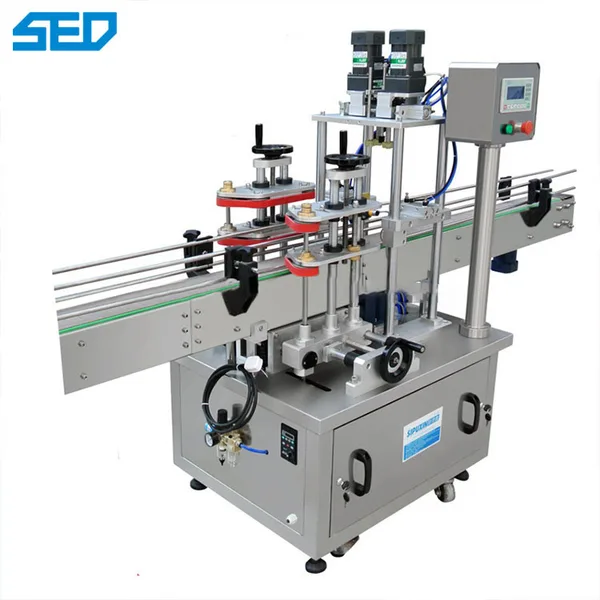

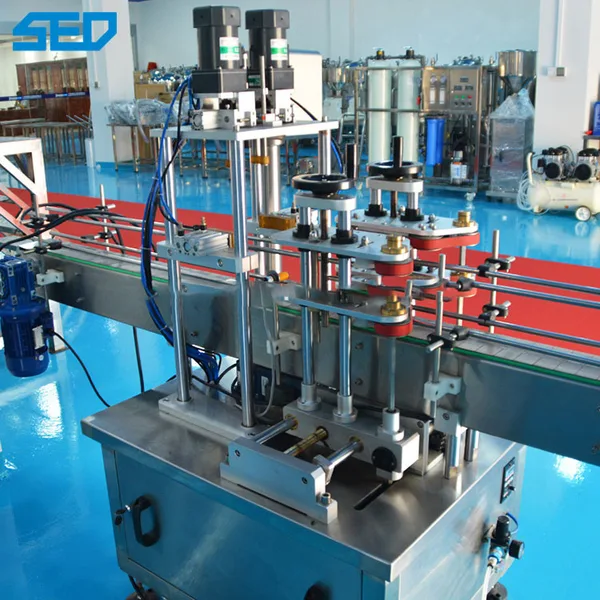

Pharmaceutical Machinery Equipment Automatic Pet Bottle Capping Machine



Product Overview of Pet Bottle Capping Machine​



This machine is a new design automatic capping machine for screwing lid on glass, plastic bottlers or jars. Caps can be plastic, metal, or other meterial.



With intelligent PLC& touch screen control system, it works stable and reliable, easy to operate and maintenance, widely used in for plastic, glass or metal bottle, cans or jars in food, beverage, comestic, pharmaceutical or chemical industries.



We also provide capping machines for metal cap seaming or lid pressing.

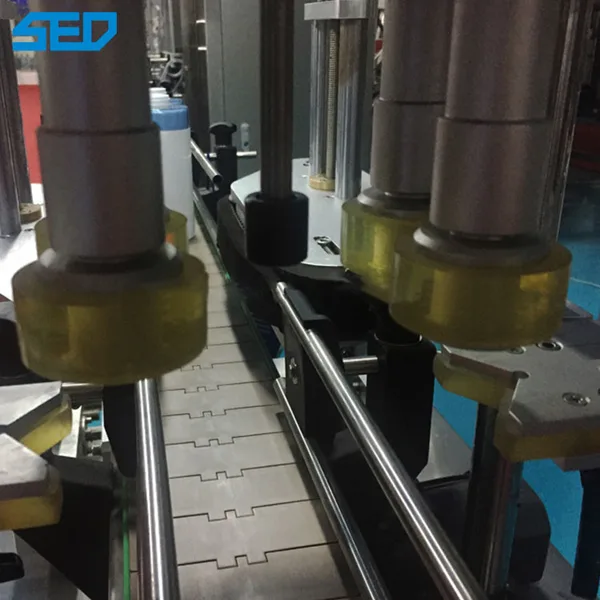

(1)This capping machine adopts rotary type for screwing caps. Caps are oriented and supplied to the cap grasping area, capping heads grasped caps send to capping area by compressed air for doing capping work, finally capper bottles are outlet by conveyor.



(2) Bottle inlet can cap inlet are controlled synchronously



(3) Reversed caps can be ejected. (optional function)



Product Parameters of Pet Bottle Capping Machine

Capping speed	Capping speed 20-30bottle/min
Capping range	Bottle height: 50-300mm / Cap dia.: 20-50mm
Capping Torsion	4-8kgf/cm
Air pressure	4-6kg/cm2
Max. power	60w
Voltage	220v, 50/60hz
Packing size	54*36*60cm



Feature of Pet Bottle Capping Machine



Bottle inlet, cap sort, cap feed, capping, and bottle outlet are done automatically.



Well suitable for diversified caps, also very friendly applicable for anti-theft caps. Caps are grasped and positioned well, harmless to caps during the machine running.



Fast speed of machine and high qualified rate of capping, it bears step less adjusting, can reach the international advanced level of similar products.



Electric elements use international famous brand, which ensure the machine’s quality and its service lifetime, reasonable structure, superior performance, low voice, friendly environmental.



Adjustable height of conveyor belt, to align with other machine of the line.



Sealing pressure can be varied to suit different gauges and size of caps.



Application of Pet Bottle Capping Machine

This machine is used for automatic capping of plastic bottles and glass bottles in cosmetic, food and beverage, pesticide, fertilizer, chemical and other industries. It can be applied to various bottle types and has high production efficiency.
