Pharmaceutical Machinery Equipment

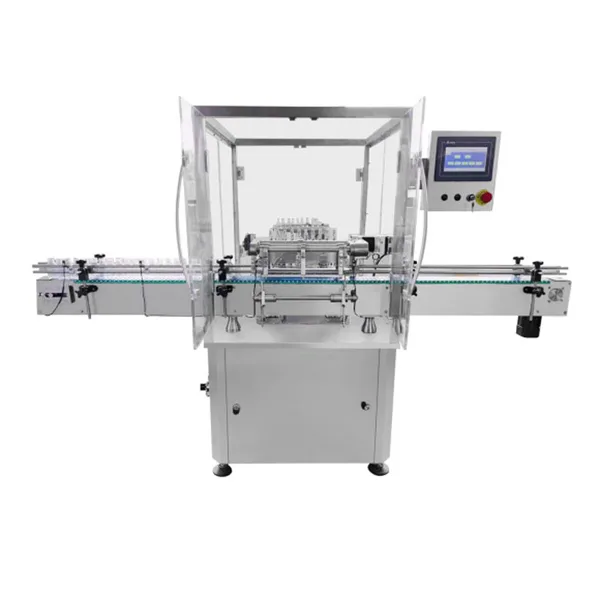

High Efficiency 10 Heads Bottle Air Washing Machine
Main features : 1. With high efficiency and stable washing effect. The machine won’t make washing if there is no bottle coming. 2. The bottle flushing speed can be controlled freely, and the current production speed can be displayed digitally.3. The turnover manipulator has the advantages of accurate bottle grasping positioning and free turnover. The blowing valve has the advantages of good sealing performance and long service life.4. The manipulator is made of stainless steel, the bottle turning and bottle placing are stable and free. Main technical parameters 1 Ap
| Place of Origin: | China |
|---|---|
| Brand Name: | SED Pharma |
| Certification: | CE |
| Model Number: | SED-10QX |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 50-60 Days after receiving the deposit |
| Payment Terms: | T/T,L/C, ,Cash |
| Supply Ability: | 30 Sets per month |
Configuration and product details
Technical overview- Name
- High Efficiency 10 Heads Bottle Air Washing Machine
- Application
- Plastic round bottles
- Bottle diameter
- 20-60mm
- Bottle height
- 40-100mm
- Capacity
- 20-40 Bottles/min
- Power supply
- AC220V 50HZ 1.5KW
- Air consumption
- 0.6Mpa 3L/min
- Dimension
- 2000×1000×1600mm
Main features:
1. With high efficiency and stable washing effect. The machine won’t make washing if there is no bottle coming. 2. The bottle flushing speed can be controlled freely, and the current production speed can be displayed digitally.3. The turnover manipulator has the advantages of accurate bottle grasping positioning and free turnover. The blowing valve has the advantages of good sealing performance and long service life.4. The manipulator is made of stainless steel, the bottle turning and bottle placing are stable and free.
Main technical parameters
| 1 | Application | Plastic round bottles |
| 2 | Suitable bottle size |
Bottle diameter 20-60mm Bottle height 40-100mm Note: Need to change mold for different bottle size |
| 3 | Capacity | 20-40 Bottles per minute |
| 4 | Power supply | AC220V 50HZ 1.5KW |
| 5 | Air consumption | 0.6Mpa 3L/min |
| 6 | Dimension | 2000×1000×1600mm |
| 7 | Weight | 450kgs |
| 8 | Accuracy | 99.8% |
