Automatic Ultrasonic Washing Machine 13 Kw 380V 50Hz for Pharmaceutical Bottle Cleaning

Name: Automatic Ultrasonic Washing Machine 13 Kw 380V 50Hz for Pharmaceutical Bottle Cleaning
Brand: SED Pharma

Automatic Pharmaceutical Equipment Ultrasonic Washing Machine 13 Kw 380V 50Hz Product Overview The Ultrasonic Washing Machine is a high-efficiency vertical ultrasonic cleaning machine designed for cleaning ampoules, vials, and other pharmaceutical containers. It features a rotating drum structure with robotic gripper flipping and ultrasonic pre-cleaning, providing "three-water three-air" alternating jet washing to ensure thorough cleaning in an inverted position. Constructed with 304 stainless steel and non-toxic corrosion-resistant materials, it meets GMP standards and is

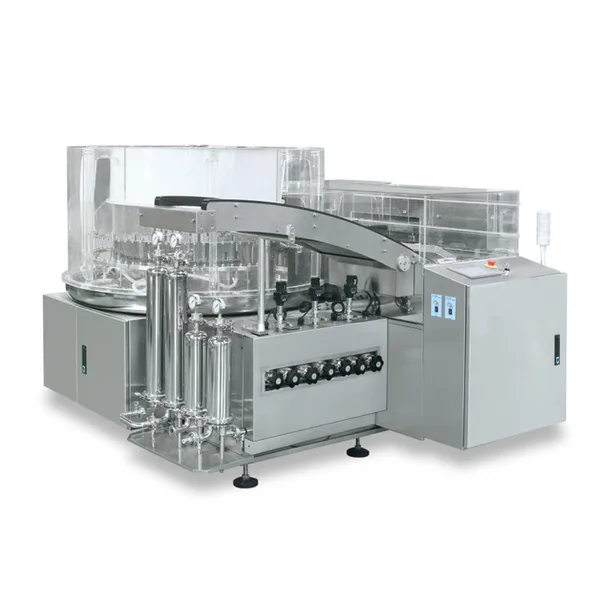

Automatic Ultrasonic Washing Machine 13 Kw 380V 50Hz for Pharmaceutical Bottle Cleaning, view 1

Product Details:

Place of Origin:	China
Brand Name:	SED Pharma
Certification:	CE
Model Number:	SED-80CXP-Z

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	Wooden Case
Delivery Time:	50-60 Days after receiving the deposit
Payment Terms:	T/T,L/C,,Cash
Supply Ability:	30 Sets per month

Request configuration

Configuration and product details

Technical overview

Name: Automatic Pharmaceutical Machinery Equipment Ultrasonic Washing Machine
Speed: 300 bottles/min
Power Consumption: 12.5 kw
Purified Water Consumption: ~1.5 m³/h @ 0.15–0.18 MPa
Compressed Air Consumption: ~45 m³/h @ 0.6–0.8 MPa
Dimension(L*W*H):: 2050×2050×1450 mm (L×W×H)
Machine Weight: Approx. 2200 kg
Keywords: Ultrasonic Washing Machine Automatic bottle Washing Machine

Automatic Pharmaceutical Equipment Ultrasonic Washing Machine 13 Kw 380V 50Hz

Product Overview

The Ultrasonic Washing Machine is a high-efficiency vertical ultrasonic cleaning machine designed for cleaning ampoules, vials, and other pharmaceutical containers. It features a rotating drum structure with robotic gripper flipping and ultrasonic pre-cleaning, providing "three-water three-air" alternating jet washing to ensure thorough cleaning in an inverted position. Constructed with 304 stainless steel and non-toxic corrosion-resistant materials, it meets GMP standards and is ideal for pharmaceutical and biotech industries requiring high cleanliness levels.

Technical Specifications

Model	SED-80CXP-Z
Compatible Containers	Ampoules, vials, etc.
Capacity	Up to 300 bottles/min
Power Consumption	12.5kW
Purified Water Consumption	~1.5 m³/h @ 0.15-0.18 MPa
Compressed Air Consumption	~45 m³/h @ 0.6-0.8 MPa
Machine Weight	Approx. 2200 kg
Dimensions	2050×2050×1450 mm (L×W×H)

Operational Process

Conveyor feeding → Ultrasonic immersion cleaning (~1 minute) → Screw lifting → Robotic gripper flipping 180° (mouth downward) → Alternating triple water & air jet tracking cleaning → Robotic flipping upright → Synchronous belt discharge to sterilizing tunnel

Key Features

Dual Cleaning Action: Ultrasonic pre-wash + triple water/air alternating spray for complete residue removal
Robotic Gripper System: Stable clamping and precise flipping to prevent container damage
Enclosed Clean Design: Fully enclosed workspace with transparent PC glass to prevent contamination
Intelligent Line Control: Interfaces with sterilizing tunnels and filling machines; auto-stop when full to prevent jams
Multi-level Safety: Water level control, pressure display, constant temperature control, and dry-run protection
Premium Components: Siemens PLC & HMI, Schneider frequency converter, ABB main motor for reliable operation

Applications

Food, Chemical, Pharmaceutical industries
