Automatic Spice Powder Filling Machine With 4000-5000 Bottles / H

Name: Automatic Spice Powder Filling Machine With 4000-5000 Bottles / H
Brand: SED Pharma

Automatic Spice Powder Filling Machine With 4000-5000 bottles / h Product Description of Powder Filling Machine Powder filling and stopper machine is a special equipment for powder quantitative filling/stopper in pharmaceutical, lightening,food and other industries. It can automatically feed and filling. The whole machine adopts 304_stainless steel with strong corrosion resistance. PLC touch screen human-machine interface is selected. It is convenient and intuitive to operate. Servo motor is used to drive and special screw is used for filling. It has high precision, f

Automatic Spice Powder Filling Machine With 4000-5000 Bottles / H, view 1

Product Details:

Place of Origin:	China
Brand Name:	SED Pharma
Certification:	CE
Model Number:	SGGF-2

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	Wooden Case
Delivery Time:	40 working days after receiving the deposit
Payment Terms:	T/T,L/C, ,Cash
Supply Ability:	30 Sets per month

Request configuration

Configuration and product details

Technical overview

Name: Automatic Spice Powder Filling Machine With 4000-5000 bottles / h
Material: Stainless Steel
Production capacity: 4000-5000 bottles / h
Powder filling volume: 0.5g~3g
Power supply: 220/50hz
Number of filling heads: 2pcs
Air pressure: 0.5~0.8Mpa
Power: 3.5KW
Weight:: 900KG
Size:: L 2000 × W1100 × H 2400mm
key word: Spice Powder Filling Machine

Automatic Spice Powder Filling Machine With 4000-5000 bottles / h

Product Description of Powder Filling Machine

Powder filling and stopper machine is a special equipment for powder quantitative filling/stopper in pharmaceutical, lightening,food and other industries. It can automatically feed and filling.

The whole machine adopts 304_stainless steel with strong corrosion resistance. PLC touch screen human-machine interface is selected. It is convenient and intuitive to operate.

Servo motor is used to drive and special screw is used for filling. It has high precision, fast speed, high output, high positioning accuracy of the structure of the equally disc feeding bottle, wide adjusting range of powder loading, small error, fast and convenient, and it is applicable.

In the metering and packing of various powders, transmission system components are processed with high-quality steel, the surface is blackened and hardened to improve service life. The machine is equipped with 304_stainless steel frame and PC transparent plate protective cover, materials contact parts is SUS316L

Product parameters of Powder Filling Machine

Material	Stainless Steel
Capacity	4000-5000 bottles / h
Powder filling volume	0.5g~3g
Power supply	220/50hz
Number of filling heads	2pcs
Voltage:	220V/380V
Filling accuracy	≤3%
Weight:	900KG
Size:	L 2000 × W1100 × H 2400mm

Feature of Powder Filling Machine

1. Use screw measurement for powder type materials, with screw

feeder to achieve feeding, metering.

2. High precision, high quality, high high speed and long life.

3. Easy to operate and easy to clean.

4. Be made of stainless steel, good shape and nice appearance.

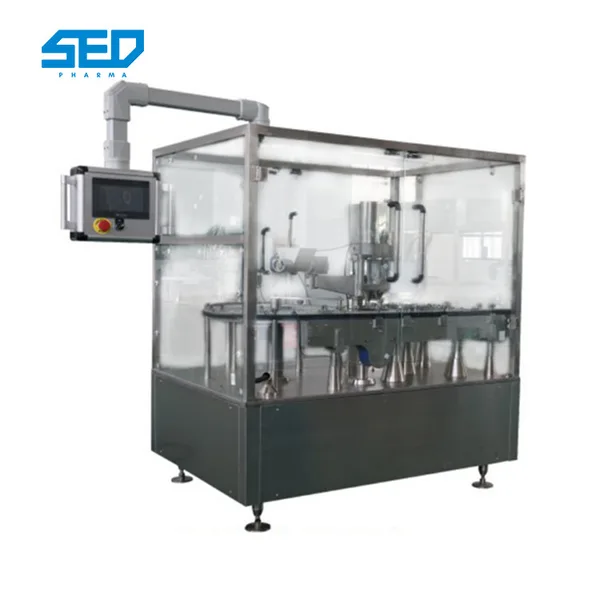

Product Show of Powder Filling Machine
