Visual Inspection Equipment

Automatic 360° Soft Capsule Vision Inspection Equipment Machine 0.05 mm accuracy

Name: Automatic 360° Soft Capsule Vision Inspection Equipment Machine 0.05 mm accuracy
Brand: SED Pharma

Product Overview of Automatic 360° Soft Capsule Vision Inspection Machine Boost pharmaceutical QC with the SED-RJSJT series. 360° soft capsule inspection for stains, scratches, and defects at speeds up to 201,600 pcs/h. 0.05mm accuracy. Product Parameters of Automatic 360° Soft Capsule Vision Inspection Machine Model SED-16-2240RJSJT-E SED-24-3360RJSJT-E Channel 16 channel 24 channel Detection Speed 134,400 pcs/hour 201,600 pcs/hour Applicable Various specifications of soft capsules Inspection Item Stains, scratches, foreign object attachment, anomalies, deformations, dis

Automatic 360° Soft Capsule Vision Inspection Equipment Machine 0.05 mm accuracy, view 1

Product Details:

Place of Origin:	China
Brand Name:	SED Pharma
Certification:	CE
Model Number:	SED-RJSJT-E

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	Wooden Case
Delivery Time:	50-60 Days after receiving the deposit
Payment Terms:	T/T,L/C,,Cash
Supply Ability:	30 Sets per month

Request configuration

Configuration and product details

Technical overview

Name: Automatic 360° Soft Capsule Vision Inspection Machine
Inspection Item: Stains, scratches, foreign object attachment, anomalies, deformations, discoloration, etc
Applicable: Various specifications of soft capsules
Detection Range: 360 degree all-round
Accuracy: 0.05 MM, Adjustable accuracy
Operation Screen: Touch screen (21.5 inches)
Power Supply: 380 V ; 50Hz
key word: Softgel Inspection Machine, Soft Capsule Visual Inspection System

Product Overview of Automatic 360° Soft Capsule Vision Inspection Machine

Boost pharmaceutical QC with the SED-RJSJT series. 360° soft capsule inspection for stains, scratches, and defects at speeds up to 201,600 pcs/h. 0.05mm accuracy.

Product Parameters of Automatic 360° Soft Capsule Vision Inspection Machine

Model	SED-16-2240RJSJT-E	SED-24-3360RJSJT-E
Channel	16 channel	24 channel
Detection Speed	134,400 pcs/hour	201,600 pcs/hour
Applicable	Various specifications of soft capsules
Inspection Item	Stains, scratches, foreign object attachment, anomalies, deformations, discoloration, etc
Detection Range	360 degree all-round
Accuracy	0.05 MM, Adjustable accuracy
Operation Screen	Touch screen (21.5 inches)
Power Supply	380 V ; 50Hz
Power	3 KW	4 KW
Environment	Temperature: 10–30°C; Humidity: 30–70%
Size	20349601700 MM	203412201700 MM
Weight	800 KG	950 KG

Feature of Automatic 360° Soft Capsule Vision Inspection Machine

360° All-Round Detection: Eliminates blind spots to identify stains, scratches, foreign objects, and deformations.
High Precision Imaging: Equipped with advanced sensors for 0.05 mm accuracy, ensuring only "Grade A" products reach packaging.
User-Friendly Interface: Large 21.5-inch industrial touch screen for real-time monitoring and easy parameter adjustment.
Versatile Compatibility: Designed to handle various specifications of soft capsules without complex changeovers.

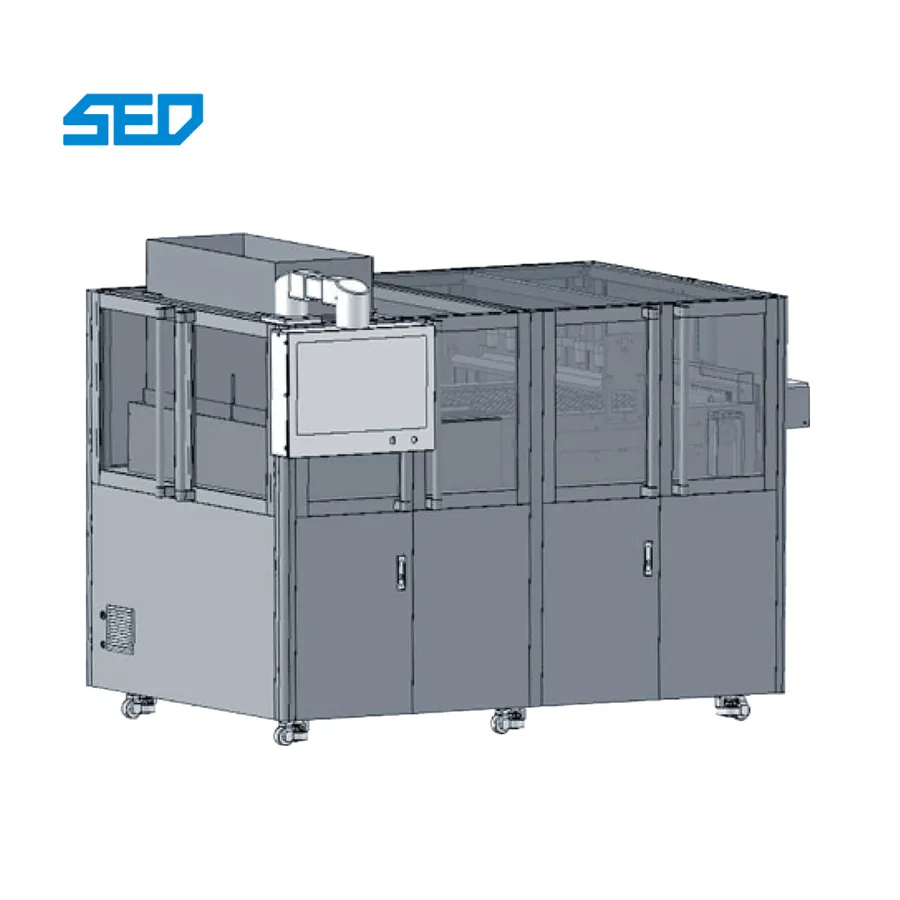

Show of Automatic 360° Soft Capsule Vision Inspection Machine

softgel inspection machine
