All Stainless Steel Pharmaceutical Machinery Equipment Standard Vibrating Screen
All-Stainless Steel Pharmaceutical Machinery Equipment Standard Vibrating Screen Product Description of Vibrating Screen Machine The all-stainless steel standard vibrating screen is suitable for continuous operation of the automatic feeding line with a high degree of mechanization, and the feed inlet can be sealed. The screen can be installed with screen mesh of four layers or less, the screening accuracy can reach 28µ, and the dust will not fly. The new patented screen mesh frame design greatly improves the screening efficiency, which can fully meet the screening req
| Place of Origin: | China |
|---|---|
| Brand Name: | SED Pharma |
| Certification: | CE |
| Model Number: | SED-390SF-F |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 50-60 Days after receiving the deposit |
| Payment Terms: | T/T,L/C, ,Cash |
| Supply Ability: | 30 Sets per month |
Configuration and product details
Technical overview- Name
- All-Stainless Steel Pharmaceutical Machinery Equipment Standard Vibrating Screen
- Effective screen diameter
- 390mm
- Effective screening area
- 0.1207m²
- 1-3S Motor Parameters
- 0.25KW
- 4-5S Motor Parameters
- 0.37KW
- Number of layers
- 1-5
- material
- stainless steel
- key word
- Vibrating Screen Machine
All-Stainless Steel Pharmaceutical Machinery Equipment Standard Vibrating Screen
Product Description of Vibrating Screen Machine
The all-stainless steel standard vibrating screen is suitable for continuous operation of the automatic feeding line with a high degree of mechanization, and the feed inlet can be sealed.
The screen can be installed with screen mesh of four layers or less, the screening accuracy can reach 28µ, and the dust will not fly. The new patented screen mesh frame design greatly improves the screening efficiency, which can fully meet the screening requirements of various industries.
Detailed Parameters of Vibrating Screen Machine
| Name
|
All-Stainless Steel Pharmaceutical Machinery Equipment Standard Vibrating Screen
|
|
Model
|
SED-390SF-F
|
|
Effective screen diameter
|
390mm
|
|
Effective screening area
|
0.1207m²
|
|
1-3S Motor Parameters
|
0.25KW
|
|
4-5S Motor Parameters
|
0.37KW
|
|
Number of layers
|
1-5
|
Working principle of Vibrating Screen Machine
All-stainless steel standard vibrating screens are made of vertical motors as the vibration source, by adjusting the angles of the two eccentric blocks at the upper and lower ends of the motor shaft.
The screen can be controlled to re-straight, level, and tilt three-dimensional motion to achieve screening. The effect of the material can also control the speed and movement path of the material when it passes through the screen during the screening process.

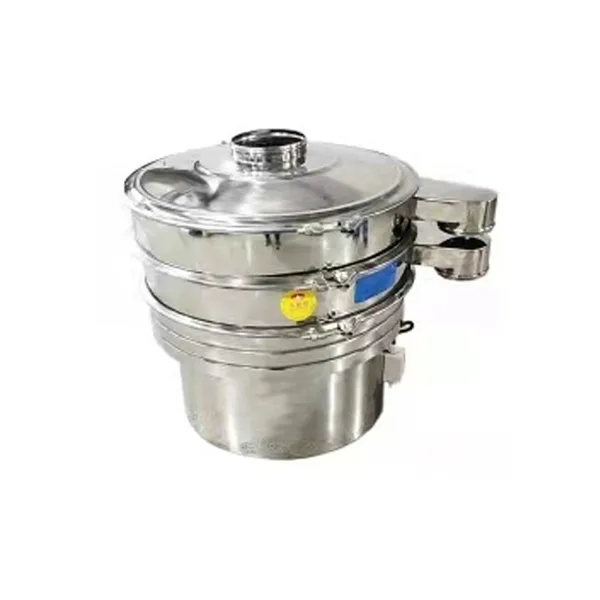

Product Show of Vibrating Screen Machine
Application of Vibrating Screen Machine
1. Chemical Industry: abrasives such as resins, coatings, industrial medicines, cosmetics, paints, etc..
2. Ceramics industry: alumina, quartz sand, mud, kaolin, silicon carbide, sprayed soil particles, etc..
3. Food Industry: powdered sugar, starch, salt, rice flour, milk powder, soy milk, egg powder, soy sauce, fruit juice, etc..
4. Paper industry: coating paint, clay slurry, black and white liquid, waste liquid, papermaking liquid, waste water recycling, etc.
5. Metals, metallurgy and mining: aluminum powder, lead powder, copper powder, ore, alloy powder, electrode powder, manganese dioxide, electrolytic copper powder, electromagnetic material, grinding powder, refractory material, lime, quartz sand, kaolin, alumina, heavy calcium carbonate, etc.
6. Pharmaceutical Industry: Chinese medicine liquid, western medicine powder, western medicine liquid, Chinese and western medicine granules, etc.
7. Pollution treatment: waste oil, wastewater, dyeing and finishing wastewater, additives, activated carbon, etc.
