1.5kw Pulsating Vacuum Autoclave Machine with 1150x600x600 mm Chamber Size and ISO 9001 Certification

Name: 1.5kw Pulsating Vacuum Autoclave Machine with 1150x600x600 mm Chamber Size and ISO 9001 Certification
Brand: SED Pharma

1.5kw Pharmaceutical Machinery Pulsating Vacuum Autoclave 1150*600*600 Mm Product Overview The Pulsating Vacuum Autoclave is designed and manufactured in strict compliance with GMP standards, certified under ISO 9001 and ISO 13485, and conforms to China Pressure Equipment Directive GB150. Ideal for hospitals, pharmaceutical plants, and research institutes, it provides reliable sterilization and drying for textiles, surgical instruments, culture media, and more. Machine Parameters Parameter Specification Chamber size (L*W*H) 1150*600*600 mm Overall size (L*W*H) 1396*1360*180

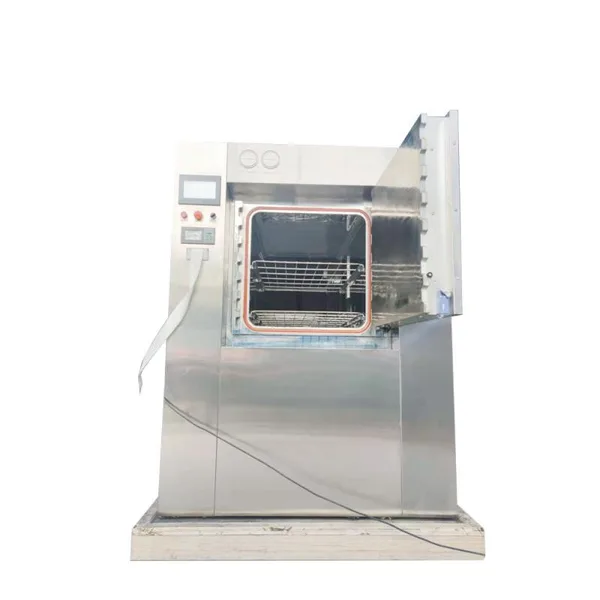

1.5kw Pulsating Vacuum Autoclave Machine with 1150x600x600 mm Chamber Size and ISO 9001 Certification, view 1

Product Details:

Place of Origin:	China
Brand Name:	SED Pharma
Certification:	CE
Model Number:	SED-0.4MM-A

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	Wooden Case
Delivery Time:	40 working days after receiving the deposit
Payment Terms:	T/T,L/C,,Cash
Supply Ability:	30 Sets per month

Request configuration

Configuration and product details

Technical overview

Name: Pulsating Vacuum Autoclave
Chamber size(L*W*H): 1150*600*600 mm
Chamber design pressure: -0.1~0.3Mpa
Design temperature: 139℃
Work pressure: 0.22Mpa
Electricity supply: 1.5kw 380V,50Hz, 3 phase 4 wires
Steam supply(0.2~0.3Mpa): Pipe diameter:DN25, 300kg/cycle
key Word: Pulsating Vacuum Autoclave

1.5kw Pharmaceutical Machinery Pulsating Vacuum Autoclave 1150*600*600 Mm

Product Overview

The Pulsating Vacuum Autoclave is designed and manufactured in strict compliance with GMP standards, certified under ISO 9001 and ISO 13485, and conforms to China Pressure Equipment Directive GB150. Ideal for hospitals, pharmaceutical plants, and research institutes, it provides reliable sterilization and drying for textiles, surgical instruments, culture media, and more.

Machine Parameters

Parameter	Specification
Chamber size (LWH)	1150600600 mm
Overall size (LWH)	139613601800 mm
Chamber design pressure	-0.1~0.3Mpa
Design temperature	139℃
Design pressure	0.245Mpa
Work pressure	0.22Mpa
Chamber material	Thickness: 6mm, material: SUS304
Temperature equilibrium	≤±1℃
Electricity supply	1.5kw 380V, 50Hz, 3 phase 4 wires

Key Features

Double-Door Interlock System: Pneumatic sealing with automatic safety interlock
High-Performance Sealing: Medical-grade silicone gasket, resistant to high temperature and pressure
Intelligent Control System: Siemens S7-200 PLC + TIANREN HMI + Micro-printer, with 3-level password protection
Precision Sensors: JUMO Pt100 temperature sensors (Class A accuracy)
Vacuum System: Efficient water-ring vacuum pump for complete air removal
Air Filtration: 0.22μm absolute sterilizing filter ensures sterile air intake

Applications

Suitable for hospitals, pharmaceutical factories, and scientific research institutes to sterilize and dry clothing, dressings, metal instruments, culture media, and other materials.

Sterilization Cycles

Cycle 1: Bowie Test - Steam penetration test at 121°C / 10min
Cycle 2: Vacuum Test - Chamber air permeability test
Cycle 3: Porous Load Sterilization - Initial pulsed vacuum, sterilization, and vacuum drying
