Product Details:
|
| Name: | Semi Automatic Condiment Cocoa Milk Coffee Powder Filling Machine | Material: | Stainless Steel |
|---|---|---|---|
| Capacity: | 10-30times/min | Hopper Volume: | 6L |
| Filling Range: | 0.3-100g | Power Supply: | AC380V 50-60HZ 0.2kw |
| Filling Accuracy: | ±1% | Weight:: | 60kg |
| Size:: | 440*320*1300mm | Key Word: | Powder Filling Machine，Powder Filling Packing Machine |
| Highlight: | Powder Filling Machine,Powder Filling Packing Machine,Pharmaceutical Powder Filling Machine 30 Pcs/Min |
||
Product Description of Powder Filling Machine
Powder milk filling machine is the main equipment of powder production line. The main working principle adopts stepper motor control screw powder delivery drive coils, thereby accurately control the raw material powder required capacity packaging to antibiotic glass bottle, and cover the rubber plug.
Through a dual track conveying bottle, double screw filling, double track automatic into the plug and plug process; ensure the packaging in bottles of antibiotic powder net weight within strictly controlled in the process specified error. Its main structure is
composed out of the bottle body, double screw distributing head, plug the oscillation disc and a cork pressing mechanism, dividing disk conveying mechanism, the drive mechanism and control system components.
Product parameters of Powder Filling Machine
|
Material
|
Stainless Steel
|
|
Application |
Powder |
| Packing speed |
10-30times/min |
|
Motor power
|
0.2kw |
| Hopper volume |
6L |
|
Voltage:
|
220V/380V
|
| Plug the qualified rate |
±1% |
|
Weight:
|
60kg |
|
Size:
|
440*320*1300mm |
Feature of Powder Filling Machine
1)The whole machine is made of stainless steel, especially suitable for GMP certification, food hygiene certification, and packaging of chemical products that require anti-corrosion.
2)The filling adopts a stepping motor to move the screw, which has the advantages of accurate positioning, high precision, fast speed, large torque, long life, adjustable speed, and good stability.
3)A maintenance-free geared motor is used for stirring: low noise, long service life, and lifetime maintenance-free.

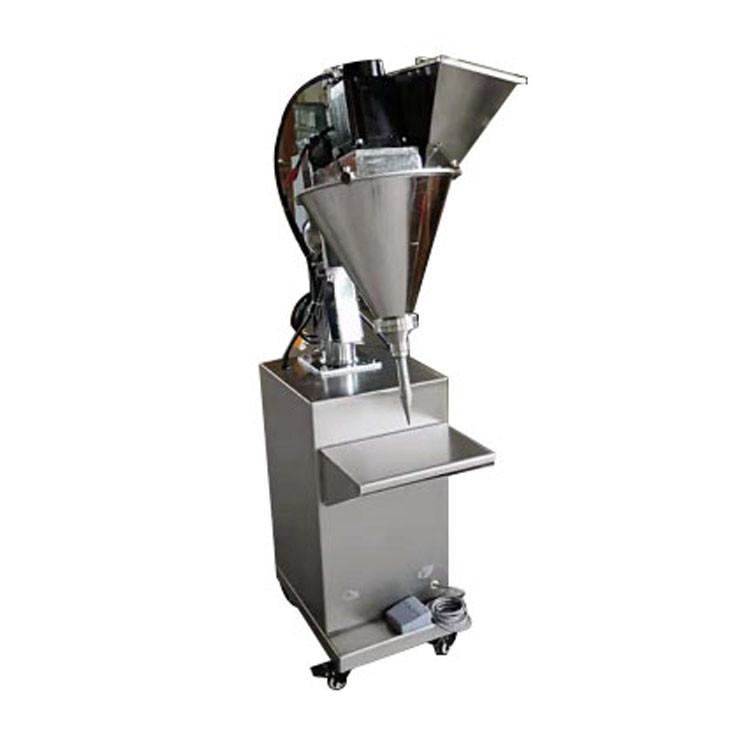

Product Show of Powder Filling Machine
Application of Powder Filling Machine
It is suitable for quantitative packaging of powder materials in the food, pharmaceutical, biological, chemical and other industries, such as medicine, milk powder, soy milk, health food, seasoning, facial mask powder, animal medicine (powder), etc.
