Product Details:
|

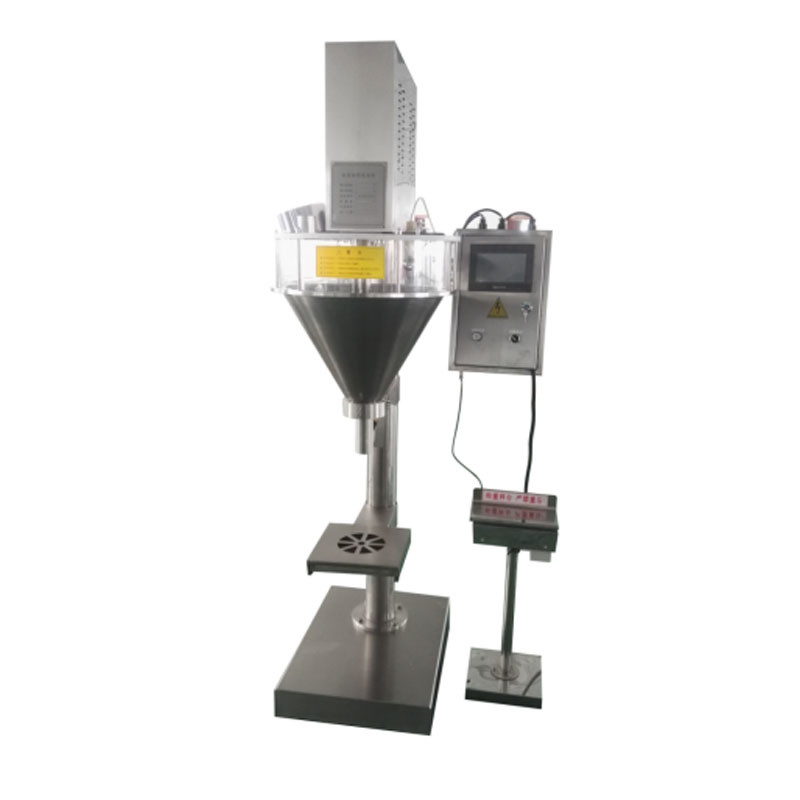

| Name: | Semi-automatic 304 Stainless Steel Powder Filling Machine | Metering Method: | Weighing Type |
|---|---|---|---|
| Application: | Powder | Hopper Volume: | 50L |
| Material: | The Contact Material Part Is 304 Stainless Steel | Filling Weight: | 1000-5000g |
| Weighing Range: | 1-5000g | Filling Accuracy: | ±0.5% |
| Highlight: | machinery for pharmaceutical industry,equipment for pharmaceutical manufacturing |
||
Feature
1) The material is in contact with 304 stainless steel, which meets the requirements of GMP.
2) PLC and touch screen control system, all Chinese and English interface, easy to operate;
3) Screw-type weighing measurement, 3-level speed feeding, filling volume and filling speed can be adjusted arbitrarily, with high precision.
4) The number of packages can be automatically displayed, and the workload of the machine can be easily counted
Technical parameters
|
|
Metering method | Weighing type |
|
|
Application | Powder |
|
|
Hopper volume | 50L |
|
|
Material | The contact material part is 304 stainless steel |
|
|
Filling weight | 1000-5000g |
|
|
Weighting range | 1-5000g |
|
|
Filling accuracy | ±0.5% |
|
|
Filling speed | 5-10bags/min |
|
|
Power supply | AC380V 50-60HZ |
|
|
Power | 1.8kw |
|
|
Compressed Air | 6kg/m2 0.3m3/min |
|
|
Weight | 150kg |
|
|
Dimensions | 690*1060*2000mm |
