Product Details:
|
| Name: | Automatic Labeling Machine For Plastic Round Bottle | Dimension(L*W*H): | 1850X730X1400mm |
|---|---|---|---|
| Machinery Capacity: | 50-120 Bottles / Min | Weight: | 300KG |
| Voltage: | 220V/380V | Applicable Bottle Type: | Round Bottle: H 40-180mm, W < 100mm |
| Material: | Stainless Steel | Key Word: | Plastic Bottle Labeling Machine |
| Highlight: | 0.9KW Plastic Bottle Labeling Machine,0.9kw pet bottle labeling machine,120 Plastic Bottle Labeling Machine |
||
Product Overview of Labeling Machine
This automatic labeling machine is equipped with a PLC control panel which helps you to easily adjust the job data. Can be used for single- or double-sided labelling of round bottles. It is made with high quality materials and imported machine parts. This machine is widely used in food, beverage, cosmetics, daily chemical and other industries.
Product Parameters of Labeling Machine
| Product Name | Fully automatic Round bottle labeling |
| Product model | SED-YDT-2 |
| Labeling accuracy | ±1mm |
| Labeling speed | 50-120 bottles / min |
| Applicable bottle type | Round bottle: height 40-180mm, width < 100mm |
| Tag range | Width 15-100mm, length 20-320mm |
| Rated voltage | 220V 50HZ |
| Rated power | 0.9KW |
| Host weight | 300kg |

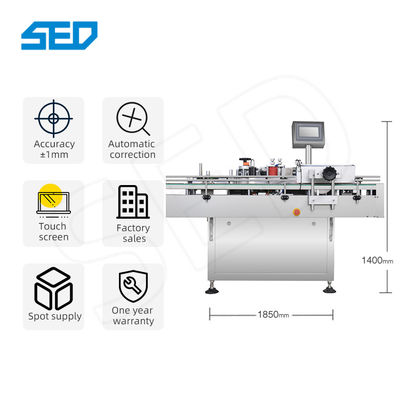

| Outline size | 1850×730×1400mm |
| Certification | CE |
Feature of Labeling Machine
1. All labeling machines are made of SUS304 stainless steel
2. The labeling machine can deliver the bottle table
3. The labeling machine avoids many problems such as manual labeling, crooked sticking, bubbles, wrinkling, and irregular labeling.
4. The labeling machine is equipped with an electric eye, which improves the cutting accuracy of label materials.
5. The labeling machine is controlled by equivalent PLC, positioning module, stepper motor and sensor electrical control system.

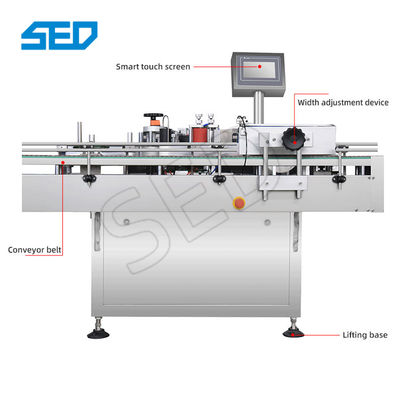

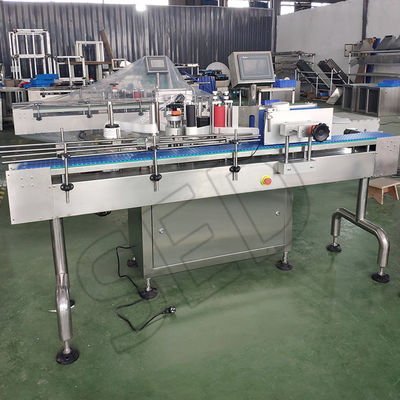

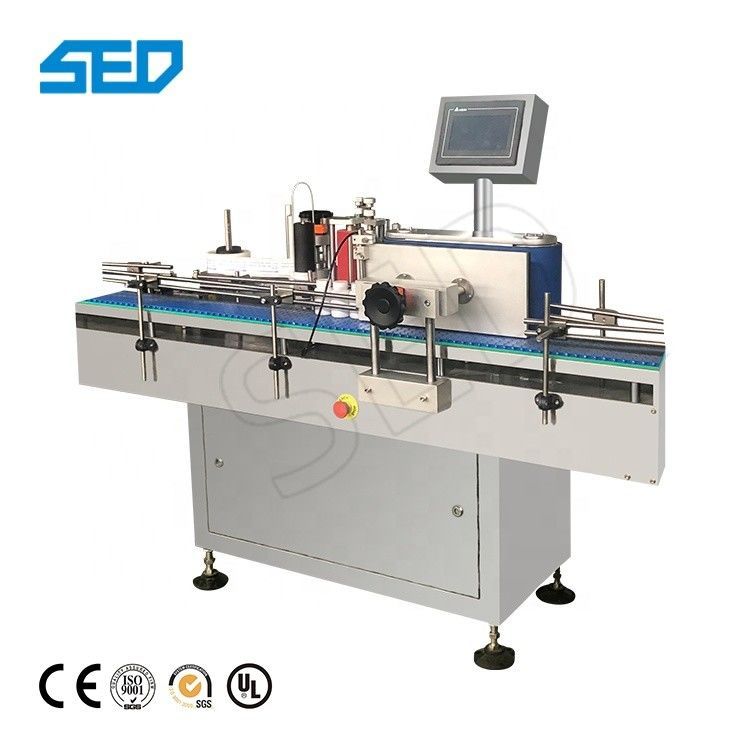

Show of Labeling Machine
Application of Labeling Machine
1. Used for labels: self-adhesive labels, self-adhesive films, electronic supervision codes, bar codes, etc.
2. Applicable products: labeling on the side plane, side sweep surface and peripheral surface is required.
3. Industry: widely used in cosmetics, daily chemicals, electronics, medicine, metal, plastics and other industries.
4. Application examples: Labeling of flat bottles of Head & Shoulders shampoo, labeling of flat bottles of Shell lubricating oil, labeling of fresh wine.
