Product Details:
|
| Name: | Multifunctional Sticker Automatic Bottle Labeling Machine | Labeling Precision: | ±1mm (excluding Product And Label Error) |
|---|---|---|---|
| Power Supply: | AC220V 50/60Hz 700W | Conveyor Speed: | 5~25 Meters/minute; |
| Labeling Speed: | 10~35pcs/min(Related To Product, Label Size); | Application Bottle Size: | External Diameter: Φ25-100mm;Height: 25mm~300mm; |
| Material: | Stainless Steel | Key Word: | Automatic Bottle Labeling Machine |
| Highlight: | automatic labeling equipment,sticker labeler machine |
||
Product Description of Labeling Machine

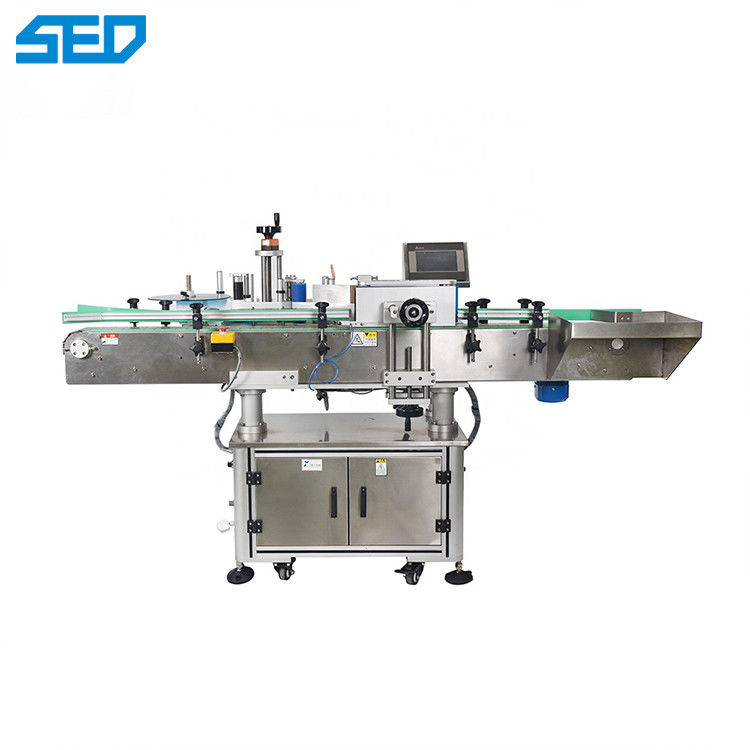

NY-822B Positional Stand Up Round Rotary Bottle Labeling Machine to label on the circumference of surface or other curved surface for food glass pet plastic round bottles, jars, cans, tins etc. It has optional circumference positioning detection device, realize the specified position single or double sticker labeling.
Product Parameters of Labeling Machine
| Labeling Precision | ±1mm (excluding product and label error); |
| Power Supply | AC220V 50/60Hz 700W |
| Conveyor Speed | 5~25 meters/minute; |
| Labeling Speed | 10~35pcs/min(Related to product, label size); |
| Sticker Out-Come Speed | Stepping Motor: 5~19 meters/minute |
| Servo Motor: 5~25 meters/minute | |
| Application Bottle Size | External diameter: Φ25-100mm; |
| Height: 25mm~300mm; | |
| Applicable label size | Label Length: 20mm~290mm; |
| Label Width(body paper width): 20mm~120mm; 180mm (option) | |
| Inner dia. of paper roll | Φ76mm |
| External dia. of paper roll | Max. Φ300mm |
| Size (LXWXH) | 2000mm×1150mm×1500mm |
| Weight | 185kgs |
Advantages of Labeling Machine
Features You Can Not Ignor:
1. Have positioning function at your options. Also can realize one sticker or two stickers labeling mode.
2. The labeling head convenient to adjust, the labeling speed is automatically synchronous with the conveyor belt speed to ensure precise labeling.
3. The speed of conveyor line, the speed of pressure belt and the speed of label output can be set and changed by the PLC human interface.
4. Use famous brand PLC, stepping or servo motor, driver, sensor, etc, good quality components' configuration.
Other Corollary Equipment Introduction:
1. Different labeling solutions for flat surface, round labeling, taper wraping labeling can be supplied. One product can accomplish one sticker, two stickers or more stickers labeling, also can one sticker to finish one side, two sides, three sides or more sides labeling.
2. We can supply you the optional bottle unscrambler turning table, which can be connected directly before the labeling machine, the operators can put the bottles on the rotary table, then the rotary table will send the bottles to the labeling machine to the labeling machine automatically.
3. It also can match with weight checker, metal detector, bottle filling machine, capping machine, can seaming machine, cover impressing machine, inkjet /laser / TTO printer etc.
Products Show of Labeling Machine
Application of Labeling Machine
