Product Details:
|
| Name: | Precise Single Face Automatic Labeling Machine Equipment For Round Bottles | Product Name: | Labelling Machine For Round Bottles |
|---|---|---|---|
| Label Speed: | 0-200pcs/min | Labeling Accuracy: | ±1mm |
| Total Weight: | 168kg | Rate Of Work: | 950W |
| Material: | Stainless Steel | Key Word: | Sticker Labeling Machine |
| Highlight: | automatic labeling equipment,sticker labeler machine |
||
Precise Single Face Automatic Labeling Machine Equipment For Round Bottles
Product Parameters of Sticker Labeling Machine
| product name | labelling machine |
| applicable product | Cylindrical surface |
| Apply the label | self-adhesive label |
| Applicable product diameter | 10-180mm |
| Applicable label width | 10-100mm |
| Label speed | 0-200pcs/min |
| Labeling accuracy | ±1mm |
| Total Weight | 168kg |
| Overall Dimension | 2000X1050X1560mm |
| power source | 220V/VA |
| rate of work | 950W |
The Scope of Application:
For all types of round plastic bottles, such as salad oil bottles, wine bottles, sauce pot, etc. It is a modern mechanical and electrical integration product.
Labeling machine is applied to roll label paper sticker, labeling by rolling. A compelete process can be automatic deliver bottles, label, collect bottle. It can be connected with printer to make lable print.
The machine uses computer fiber control, synchronous tracking. The standard is controlled by the mutual inductance stepper motor to ensure that the standard speed and roll speed is synchronized in work.
Equipment function characteristics of Sticker Labeling Machine
PLC control with large-scale interface, easy to read.
Multiple labeling parameters memory for fast replacement.
The whole machine is made of stainless steel and high-level anodized aluminum, meet the GMP standard.
The machine is equipped with a bottle reminder: sub-bottle, label lost, count, etc.
Label position and label height are adjustable.

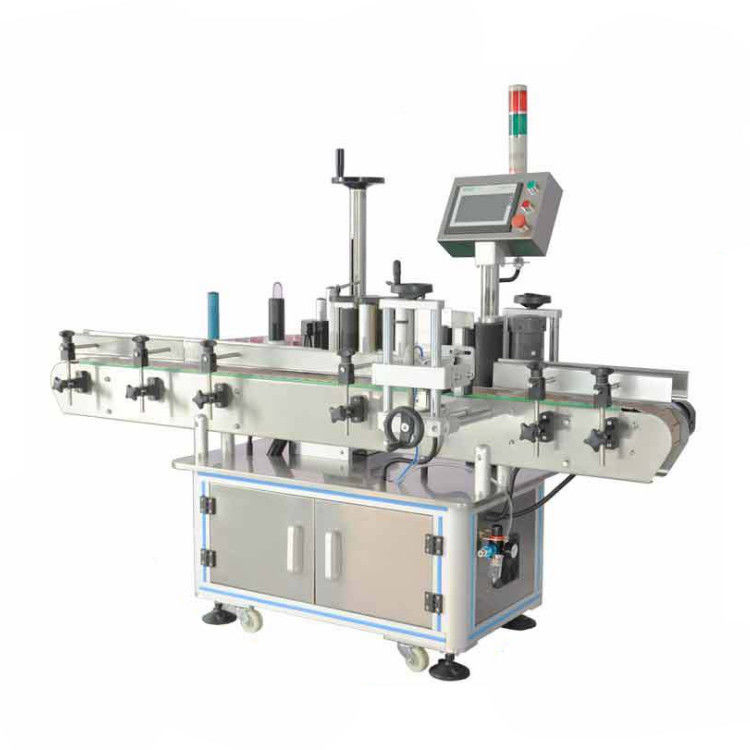

Products Show of Sticker Labeling Machine
Application of Sticker Labeling Machine
