Product Details:
|
| Name: | High Efficiency Auto Cartoner Machine Automatic Cartoning Machine | Encasing Speed: | 30-100（Cartons/min） |
|---|---|---|---|
| Dimension Range（L×W×H）: | （70-200）mm×（35-120）mm×（14-70）mm | Working Pressure: | ≥0.6mpa |
| Air Consumption: | 120-160L/min | Power Supply: | 220V 50HZ |
| Motor Power: | 0.75kw | Machine Dimension（L×W×H）: | 3100㎜×1350㎜×1750㎜（Customized） |
| Machine Weight: | 1400kg | Key Word: | Automatic Cartoning Machine，Automatic Box Cartoning Machine |
| Highlight: | SUS Auto Cartoner Machine,Automatic Box Cartoning Machine,100 Cartons / Min Automatic Cartoners |
||
Products Description of Auto Cartoner Machine
This equipment is new model developing base on integrated domestic and foreign vanguard technology. It is high technology product incorporates pneumatic photo elector mechanic which improve by a large on performance of equipment and working efficiency, realize encasing fast, keep running steady and reliable when fast running.
This machine is suitable for automatic feeding and packing of food, medicine, daily chemical, entertainment, hardware, etc. The automatic feeding mechanism is easy to adjust, and the box loading speed can be set arbitrarily on the operation screen. The whole process of on-line material detection, stamping batch number, paper tongue packaging at both ends of the carton (also suitable for hot melt adhesive), material shortage elimination and finished product output are all completed automatically.
Parameters of Auto Cartoner Machine
| Encasing speed 30-100(Cartons/min) | ||
| Carton | Quality requirement | 250-350g/㎡Base on carton size |
| Dimension range(L×W×H) | (70-200)mm×(35-120)mm×(14-70)mm | |
| Leaflet | Quality requirement | 60-70g/㎡ |
| Unfolded leaflet specification(L×W) | (80-250)㎜×(90-170)㎜ | |
| Fold range(L×W) | 【1-4】 (Fold) | |
| Compressed air | Working pressure | ≥0.6mpa |
| Air consumption | 120-160L/min | |
| Power supply | 220V 50HZ | |
| Motor power | 0.75kw | |
| Machine dimension(L×W×H) | 3100㎜×1350㎜×1750㎜(Customized) | |
| Machine weight | 1400kg | |
Feature of Auto Cartoner Machine

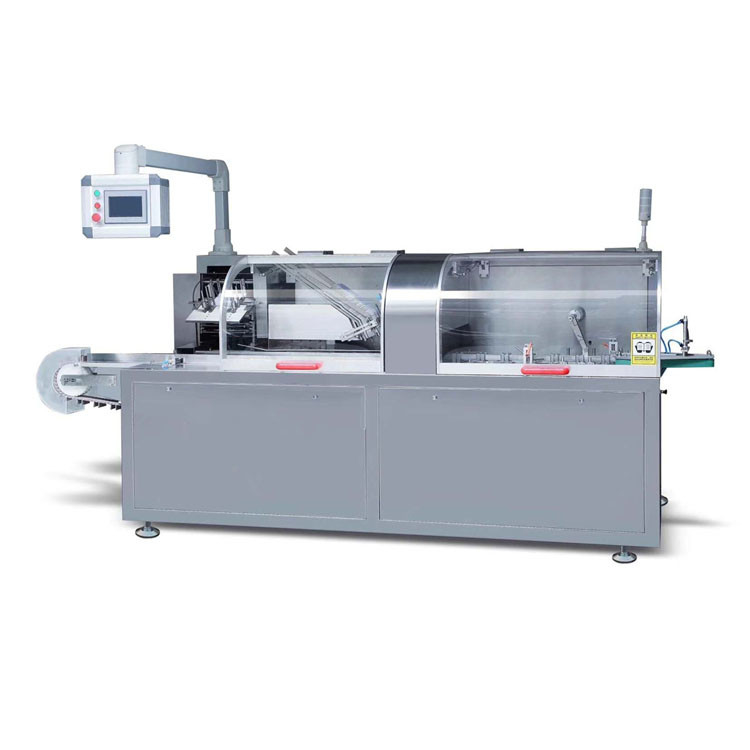

Show of Automatic Cartoner
Application of Auto Cartoner Machine
This equipment is new model developping base on integrated domestic and foreign vanguard technology .
It is high technology product incorporates pneumatic-photo-electro-mechanic which improve by a large on performance of equipment and working efficiency, realize encasing fast, keep running steady and reliable when fast running.
