Product Details:
|
| Name: | Single Punch Tablet Pill Press Machine For Pharmaceutical | Model: | SED-5DY |
|---|---|---|---|
| Max. Dia.: | 5T | Max. Tablet Diameter(mm):: | Round: Φ20 |
| Max. Filling Depth: | 18mm | Max. Thickness: | 7.5mm |
| Capacity: | 4500pcs/hour | Motor Power(w):: | 750W |
| Material: | Stainless Steel | Key Word: | Tablet Pill Press Machine |
| Highlight: | 750W Tablet Pill Press Machine,4500pcs/h Tablet Press Machine,Single Punch Tablet Pill Press Machine |
||

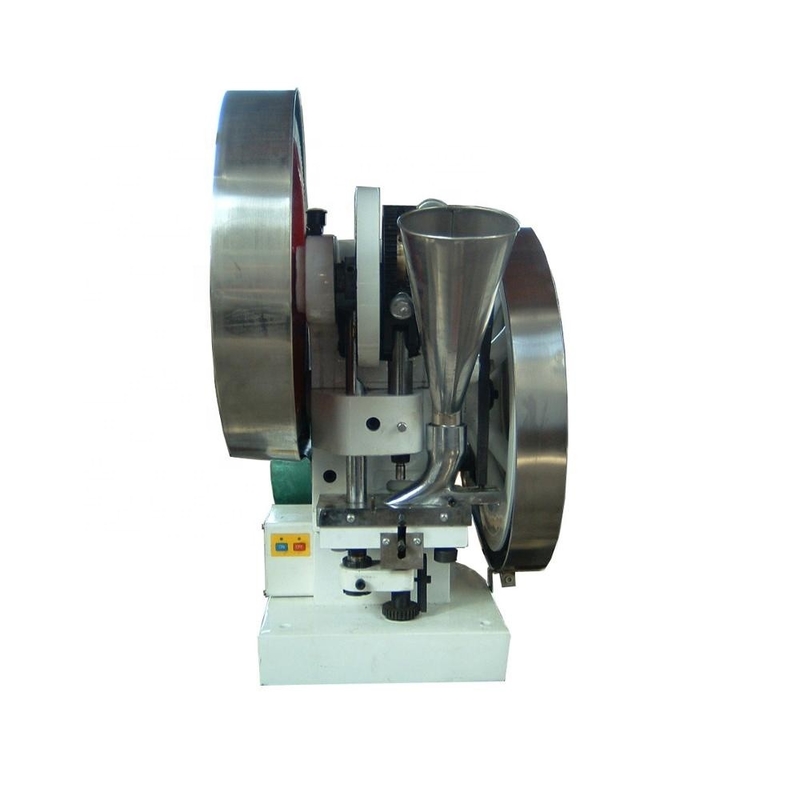

Single Punch Tablet Pill Press Machine For Pharmaceutical
Product Description of Tablet Press
The machine is suitable for the industries of Chemical, Foodstuff, Electronic and etc. It is used of pressing medicinal tablets, catalysts, sugar tablets, Calcium tablets, Coffee tablets, Powder Metallurgical, Electronic elements and various tablets of
pesticide and fertilizer. etc. in such small-batch production, laboratory and hospital fields. Meanwhile, that machine also can press various abnormity and normal tablet, and press the tablets in two sides with printing as well.
Detailed Parameters of Tablet Press
| Model | SED-5DY |
| Max. Pressure | 50 KN |
| Max. Dia. | Round: Φ20mm |
| Max. Filling Depth | 16mm |
| Max. Thickness | 6mm |
| Capacity | 4500pcs/hour |
| Dimension(mm): |
700*400*800mm |
| Motor Power(w): | 750W |
Working Principle of Tablet Press
The working principle of the single punch tablet machine is that the punch of the lower punch enters the middle die hole from the lower end of the middle die hole, seals the bottom of the middle die hole, and uses the feeder to fill the middle die hole with medicine, and the upper punch is from the upper end of the middle die hole.
Enter the middle die hole, and go down for a certain distance to limit the powder into tablets; then the upper punch rises and exits the hole, and the lower punch rises to push the tablet out of the middle die hole, completing a tableting process; the lower punch descends to the original position, ready for another filling.
Features of Tablet Press
1) The material of the machine is made of stainless steel with totally closed, the surface of turntable deal with polished and prevent cross pollution which meet the GMP standard.
2) It is equipped with Organic-glass perspective window for tablet producing observation. Each perspective window could be fully opened and easy for cleaning and maintenance.
3) It is adopts the import Frequency Timing with Electromagnetism Clutch.
4) The system of Hydraulic Pressure keep the working pressure under steady, when the pressure over-loading, it will be stopped the machine automatically.
5) Driving system is equipped with oil box and running under oil, easy for heat dissipation and wear-resistance.
6) It is equipped with Dust Collector as well, which avoid the dust emission, and recycle to save dust.
Product Show of Tablet Press
Application of Tablet Press
